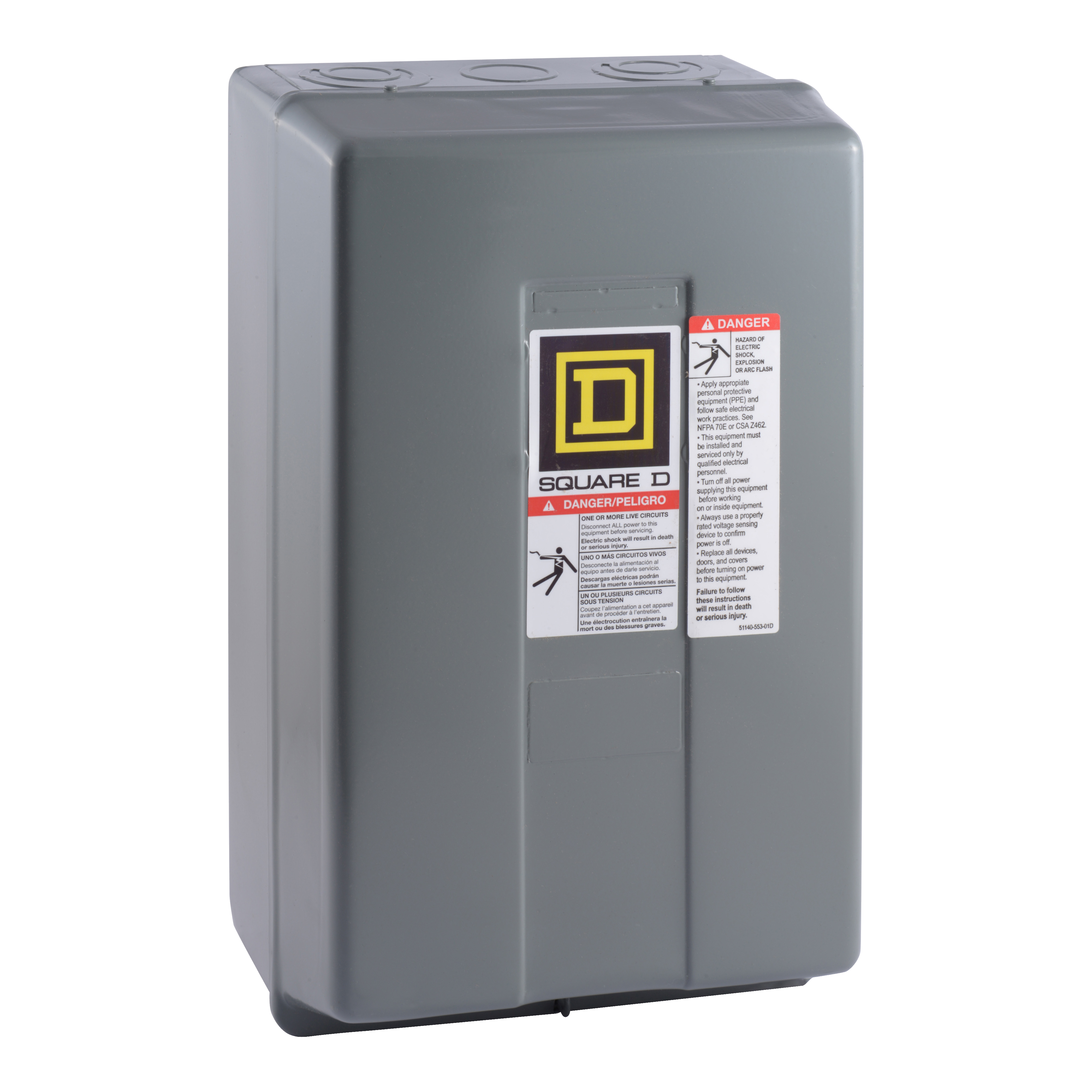

Square D™ 8903LG60V06 LIGHTING CONTACTOR
SKU837234
MFGR #8903LG60V06
Your Cost: $1,060.37/ea
Square D 8903LG60V06 LIGHTING CONTACTOR 600VAC 30A L,30 A,480Vac60Hz - 440Vac50Hz,6 NO,6P,8903L,Electrically Held,Multipole Lighting Contactor,Screw Clamp,UL Listed - CSA Certified,no indicator
Square D 8903LG60V06 LIGHTING CONTACTOR 600VAC 30A L,30 A,480Vac60Hz - 440Vac50Hz,6 NO,6P,8903L,Electrically Held,Multipole Lighting Contactor,Screw Clamp,UL Listed - CSA Certified,no indicator
Alternate Catalog Number 8903LG60V06 Application ELECTRICALLY HELD ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 8903LG60V06 Coil Power Rating 30 Coil Voltage 440 VAC at 50 Hz to 480 VAC at 60 Hz V Connection Screw Clamp Connection Type Screw Clamp Contact Configuration 6NO Contact Rating 30 A Country of Origin MX Dimensions 7.8 in W x 6.02 in D x 12.68 in H Enclosure Type NEMA 1 EU RoHS Indicator Y Finish Painted Frequency Rating 50/60 Hz Gross Weight Per Pack 5.3000 lb Gross Weight per Pack Metric 5.68 Gross Weight UOM Metric kg Height 7.43 in Height [Metric] 19.0500 cm Indicator No indicator Item Group 21321 Length 13.37 in Length [Metric] 34.2900 cm Manufacturer Schneider Electric Material Sheet Steel Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=548385&lang=en-us Mounting Type Surface Number Of Poles 6 Operating Cycles 4000 cpm Operating Temperature 0 to 40 Returnable N Series 8903 Size 6P in Standard UL LISTED - CSA CERTIFIED Stock Status NONSTOCK Sub Brand 8903L Terminal Type Screw/Clamp Type Electrically Held Type L UNSPSC 39121529 UPC 11 78590118235 UPC 12 785901182351 Warranty Description Contractual Warranty:18 months Wattage 6.9 kW at 200 V/7.9 kW at 230 V/13.1 kW at 380 V/15.9 kW at 460 V/19.9 kW at 575 V Width 7.92 in Width [Metric] 20.3200 cm ELECTRICALLY HELD SEPARATE CONTROL CIRCUIT 30 A ballast lighting rating, 20 A tungsten lighting rating Silver-cadmium-oxide double break contacts NEMA 1 general purpose enclosure 600 VAC system voltage Without indicator
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 8903LG60V06 |
| Application | ELECTRICALLY HELD |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 8903LG60V06 |
| Coil Power Rating | 30 |
| Coil Voltage | 440 VAC at 50 Hz to 480 VAC at 60 Hz V |
| Connection | Screw Clamp |
| Connection Type | Screw Clamp |
| Contact Configuration | 6NO |
| Contact Rating | 30 A |
| Country of Origin | MX |
| Dimensions | 7.8 in W x 6.02 in D x 12.68 in H |
| Enclosure Type | NEMA 1 |
| EU RoHS Indicator | Y |
| Finish | Painted |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 5.3000 lb |
| Gross Weight per Pack Metric | 5.68 |
| Gross Weight UOM Metric | kg |
| Height | 7.43 in |
| Height [Metric] | 19.0500 cm |
| Indicator | No indicator |
| Item Group | 21321 |
| Length | 13.37 in |
| Length [Metric] | 34.2900 cm |
| Manufacturer | Schneider Electric |
| Material | Sheet Steel |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=548385&lang=en-us |
| Mounting Type | Surface |
| Number Of Poles | 6 |
| Operating Cycles | 4000 cpm |
| Operating Temperature | 0 to 40 |
| Returnable | N |
| Series | 8903 |
| Size | 6P in |
| Standard | UL LISTED - CSA CERTIFIED |
| Stock Status | NONSTOCK |
| Sub Brand | 8903L |
| Terminal Type | Screw/Clamp |
| Type | Electrically Held Type L |
| UNSPSC | 39121529 |
| UPC 11 | 78590118235 |
| UPC 12 | 785901182351 |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 6.9 kW at 200 V/7.9 kW at 230 V/13.1 kW at 380 V/15.9 kW at 460 V/19.9 kW at 575 V |
| Width | 7.92 in |
| Width [Metric] | 20.3200 cm |
| ELECTRICALLY HELD |
| SEPARATE CONTROL CIRCUIT |
| 30 A ballast lighting rating, 20 A tungsten lighting rating |
| Silver-cadmium-oxide double break contacts |
| NEMA 1 general purpose enclosure |
| 600 VAC system voltage |
| Without indicator |
