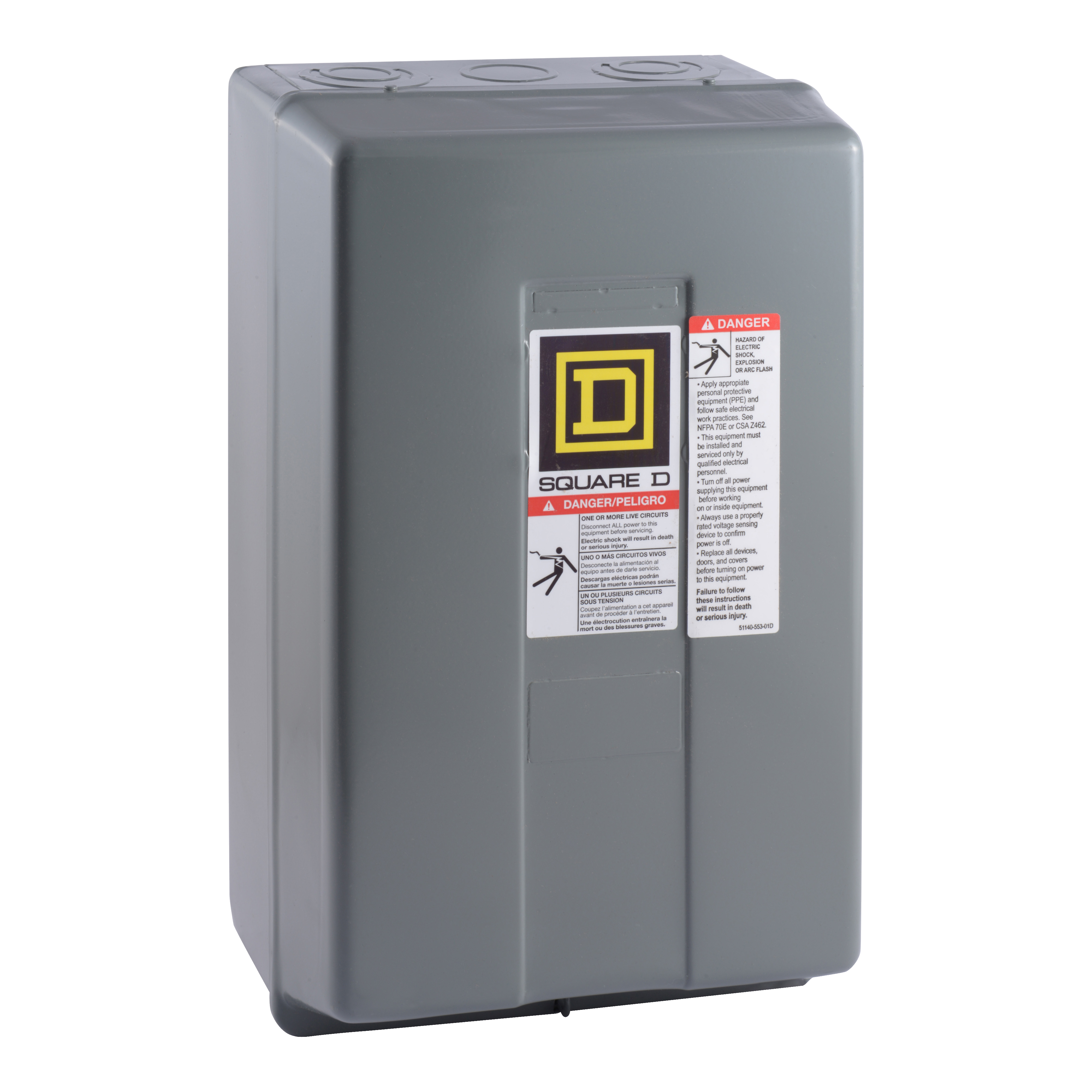

Square D™ 8903LG30V04 LIGHTING CONTACTOR
SKU311475
MFGR #8903LG30V04
Your Cost: $458.26/ea
List: Square D 8903LG30V04 LIGHTING CONTACTOR 600VAC 30A L,277 V AC 60 Hz,3 NO,8903L,Electrically Held,Electrically Held Lighting Contactor,Screw Clamp,UL Listed - CSA Certified,no indicator
Square D 8903LG30V04 LIGHTING CONTACTOR 600VAC 30A L,277 V AC 60 Hz,3 NO,8903L,Electrically Held,Electrically Held Lighting Contactor,Screw Clamp,UL Listed - CSA Certified,no indicator
Alternate Catalog Number 8903LG30V04 Application ELECTRICALLY HELD ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 8903LG30V04 Coil Power Rating 30-30 VA 60 HZ Coil Voltage 277 VAC at 60 Hz V Connection SCREW-CLAMP TERMINALS Contact Configuration 3NO Contact Rating 30 A Country of Origin MX Currency USD Dimensions 7.8 in W x 6.02 in D x 12.68 in H Enclosure Type NEMA 1 EU RoHS Indicator Y Finish Painted Frequency Rating 50/60 Hz Gross Volume Per Pack 779.22 Gross Volume per Pack Metric 12769.08 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 9.6800 lb Gross Weight per Pack Metric 4.39 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490065 Height 18.7960 in Height [Metric] 18.7960 cm Indicator No indicator Item Group 21321 Length 33.0200 in Length [Metric] 33.0200 cm Manufacturer Schneider Electric Material Sheet Steel Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=547777&lang=en-us Mounting Type Surface Number Of Poles 3 Operating Cycles 4000 cpm Operating Temperature 0 to 40 Returnable N Series 8903 Size 153 MM,198 MM,322 MM Standard UL LISTED-CSA Stock Status NONSTOCK Sub Brand 8903L Substitute Product Catalog Number 9999SPL28G Terminal Type Screw/Clamp Type Electrically Held Type L UNSPSC 39121529 UPC 11 78590162566 UPC 12 785901625667 Warranty Description Contractual Warranty:18 months Wattage 6.9 kW at 200 V/7.9 kW at 230 V/13.1 kW at 380 V/15.9 kW at 460 V/19.9 kW at 575 V Width 20.5740 in Width [Metric] 20.5740 cm ELECTRICALLY HELD SEPARATE CONTROL CIRCUIT 30 A ballast lighting rating, 20 A tungsten lighting rating Silver-cadmium-oxide double break contacts NEMA 1 general purpose enclosure 600 VAC system voltage Without indicator
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 8903LG30V04 |
| Application | ELECTRICALLY HELD |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 8903LG30V04 |
| Coil Power Rating | 30-30 VA 60 HZ |
| Coil Voltage | 277 VAC at 60 Hz V |
| Connection | SCREW-CLAMP TERMINALS |
| Contact Configuration | 3NO |
| Contact Rating | 30 A |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 7.8 in W x 6.02 in D x 12.68 in H |
| Enclosure Type | NEMA 1 |
| EU RoHS Indicator | Y |
| Finish | Painted |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 779.22 |
| Gross Volume per Pack Metric | 12769.08 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 9.6800 lb |
| Gross Weight per Pack Metric | 4.39 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 18.7960 in |
| Height [Metric] | 18.7960 cm |
| Indicator | No indicator |
| Item Group | 21321 |
| Length | 33.0200 in |
| Length [Metric] | 33.0200 cm |
| Manufacturer | Schneider Electric |
| Material | Sheet Steel |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=547777&lang=en-us |
| Mounting Type | Surface |
| Number Of Poles | 3 |
| Operating Cycles | 4000 cpm |
| Operating Temperature | 0 to 40 |
| Returnable | N |
| Series | 8903 |
| Size | 153 MM,198 MM,322 MM |
| Standard | UL LISTED-CSA |
| Stock Status | NONSTOCK |
| Sub Brand | 8903L |
| Substitute Product Catalog Number | 9999SPL28G |
| Terminal Type | Screw/Clamp |
| Type | Electrically Held Type L |
| UNSPSC | 39121529 |
| UPC 11 | 78590162566 |
| UPC 12 | 785901625667 |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 6.9 kW at 200 V/7.9 kW at 230 V/13.1 kW at 380 V/15.9 kW at 460 V/19.9 kW at 575 V |
| Width | 20.5740 in |
| Width [Metric] | 20.5740 cm |
| ELECTRICALLY HELD |
| SEPARATE CONTROL CIRCUIT |
| 30 A ballast lighting rating, 20 A tungsten lighting rating |
| Silver-cadmium-oxide double break contacts |
| NEMA 1 general purpose enclosure |
| 600 VAC system voltage |
| Without indicator |
