Square D™

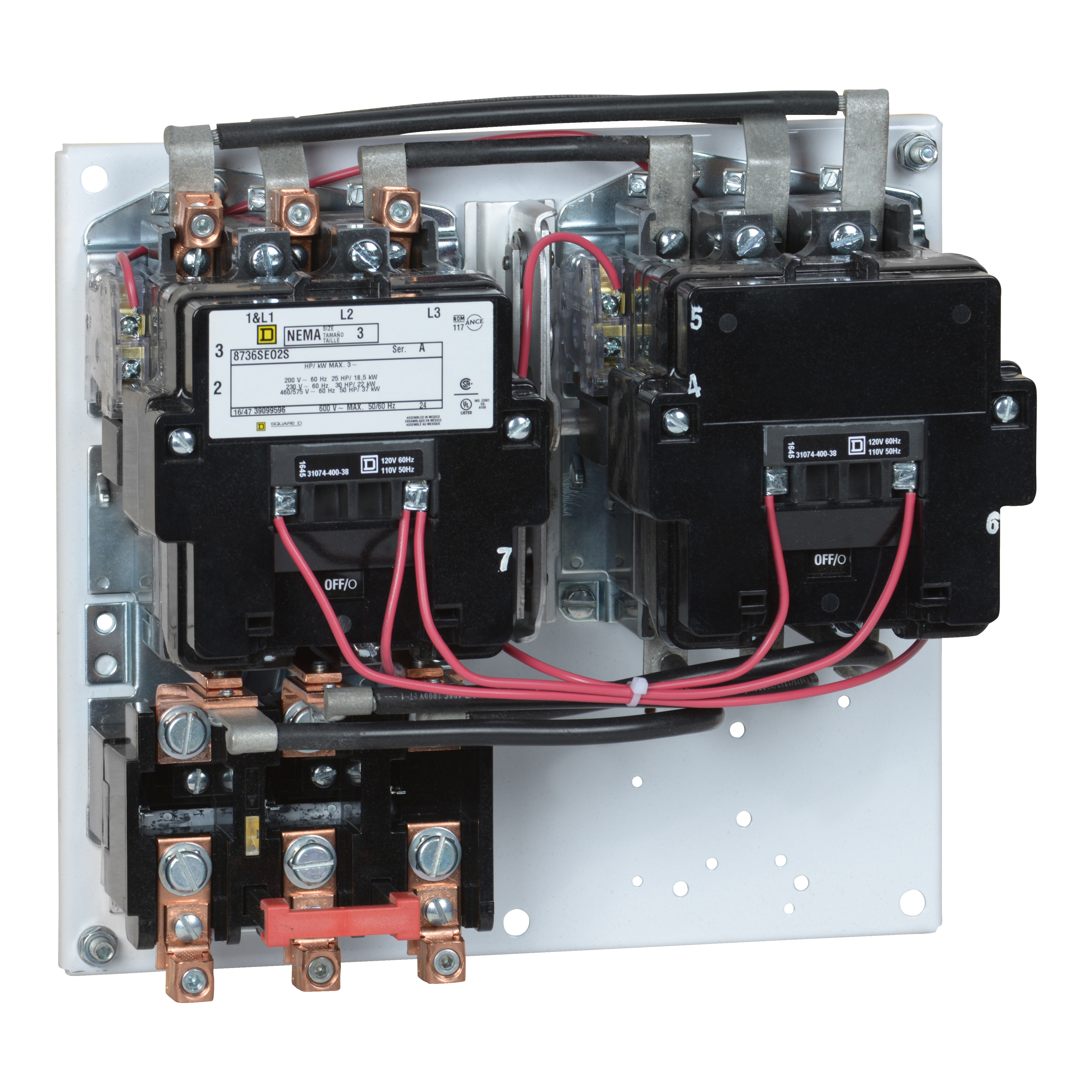

Square D™ 8736SEO2V02S REVERSING STARTER
Custom_Product_Images_Illustration
Square D™
Square D™ 8736SEO2V02S REVERSING STARTER
SKU34589
MFGR #8736SEO2V02S
Your Cost: $3,656.73/ea
List: Square D 8736SEO2V02S REVERSING STARTER 600VAC 90AMP NEMA,120VAC60Hz - 110VAC50Hz,25HP200VAC - 30HP230VAC - 50HP460/575VAC,3,3-Phase,3P,600VAC,90 A,Box Lug,Open,Reversing Starter,S,Thermal - Melting Alloy,UL Listed - CSA Certified,Used for Full-Voltage Reversing, Starting and Stopping of AC Squirrel Cage Motors
Square D 8736SEO2V02S REVERSING STARTER 600VAC 90AMP NEMA,120VAC60Hz - 110VAC50Hz,25HP200VAC - 30HP230VAC - 50HP460/575VAC,3,3-Phase,3P,600VAC,90 A,Box Lug,Open,Reversing Starter,S,Thermal - Melting Alloy,UL Listed - CSA Certified,Used for Full-Voltage Reversing, Starting and Stopping of AC Squirrel Cage Motors
Action Reversing Alternate Catalog Number 8736SEO2V02S Amperage Rating 90 A Application USED FOR FULL-VOLTAGE REVERSING, STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 8736SEO2V02S Coil Voltage 110 VAC at 50 Hz/120 VAC at 60 Hz Connection Box lug Connection Type Box Lug Country of Origin MX Currency USD Dimensions 12.72 in W x 7.01 in D x 11.73 in H Enclosure Type Open EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 2434.32 Gross Volume per Pack Metric 39891.20 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 38.5800 lb Gross Weight per Pack Metric 17.50 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536504000 Height 24.8920 in Height [Metric] 24.8920 cm Item Group 21273 Length 45.7200 in Length [Metric] 45.7200 cm Manufacturer Schneider Electric Motor Power 25 hp at 200 VAC/30 hp at 230 VAC/50 hp at 460/575 VAC Number Of Poles 3 Operating Temperature 0 to 40 deg C Ambient Overload Relay Thermal Melting Alloy Phase 3 pH Power Supply 120VAC@60HZ - 110VAC@50HZ Reset Type (3) Thermal Melting Alloy Returnable N Series 8736 Size 3 Standard UL LISTED - CSA CERTIFIED Stock Status NONSTOCK Sub Brand S Substitute Product Catalog Number 9999SX6 Type Type S UNSPSC 39121521 UPC 11 78590180903 UPC 12 785901809036 Voltage Rating 600 VAC Warranty Description Contractual Warranty:18 months Wattage 18.5 kW at 200 VAC/22 kW at 230 VAC/37 kW at 460/575 VAC Width 35.0520 in Width [Metric] 35.0520 cm USED FOR FULL-VOLTAGE REVERSING, STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS SCREW CLAMP TERMINALS Used for full voltage starting and stopping AC squirrel cage motors Screw clamp terminal NEMA 3
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Action | Reversing |
| Alternate Catalog Number | 8736SEO2V02S |
| Amperage Rating | 90 A |
| Application | USED FOR FULL-VOLTAGE REVERSING, STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 8736SEO2V02S |
| Coil Voltage | 110 VAC at 50 Hz/120 VAC at 60 Hz |
| Connection | Box lug |
| Connection Type | Box Lug |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 12.72 in W x 7.01 in D x 11.73 in H |
| Enclosure Type | Open |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 2434.32 |
| Gross Volume per Pack Metric | 39891.20 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 38.5800 lb |
| Gross Weight per Pack Metric | 17.50 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536504000 |
| Height | 24.8920 in |
| Height [Metric] | 24.8920 cm |
| Item Group | 21273 |
| Length | 45.7200 in |
| Length [Metric] | 45.7200 cm |
| Manufacturer | Schneider Electric |
| Motor Power | 25 hp at 200 VAC/30 hp at 230 VAC/50 hp at 460/575 VAC |
| Number Of Poles | 3 |
| Operating Temperature | 0 to 40 deg C Ambient |
| Overload Relay | Thermal Melting Alloy |
| Phase | 3 pH |
| Power Supply | 120VAC@60HZ - 110VAC@50HZ |
| Reset Type | (3) Thermal Melting Alloy |
| Returnable | N |
| Series | 8736 |
| Size | 3 |
| Standard | UL LISTED - CSA CERTIFIED |
| Stock Status | NONSTOCK |
| Sub Brand | S |
| Substitute Product Catalog Number | 9999SX6 |
| Type | Type S |
| UNSPSC | 39121521 |
| UPC 11 | 78590180903 |
| UPC 12 | 785901809036 |
| Voltage Rating | 600 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 18.5 kW at 200 VAC/22 kW at 230 VAC/37 kW at 460/575 VAC |
| Width | 35.0520 in |
| Width [Metric] | 35.0520 cm |
| USED FOR FULL-VOLTAGE REVERSING, STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS |
| SCREW CLAMP TERMINALS |
| Used for full voltage starting and stopping AC squirrel cage motors |
| Screw clamp terminal |
| NEMA 3 |
