Square D™ 8736SDG2V02S STARTER MOTOR CONT
NEMA Starters
160756
MFG #: 8736SDG2V02S
Square D™
3077.46000
/ ea

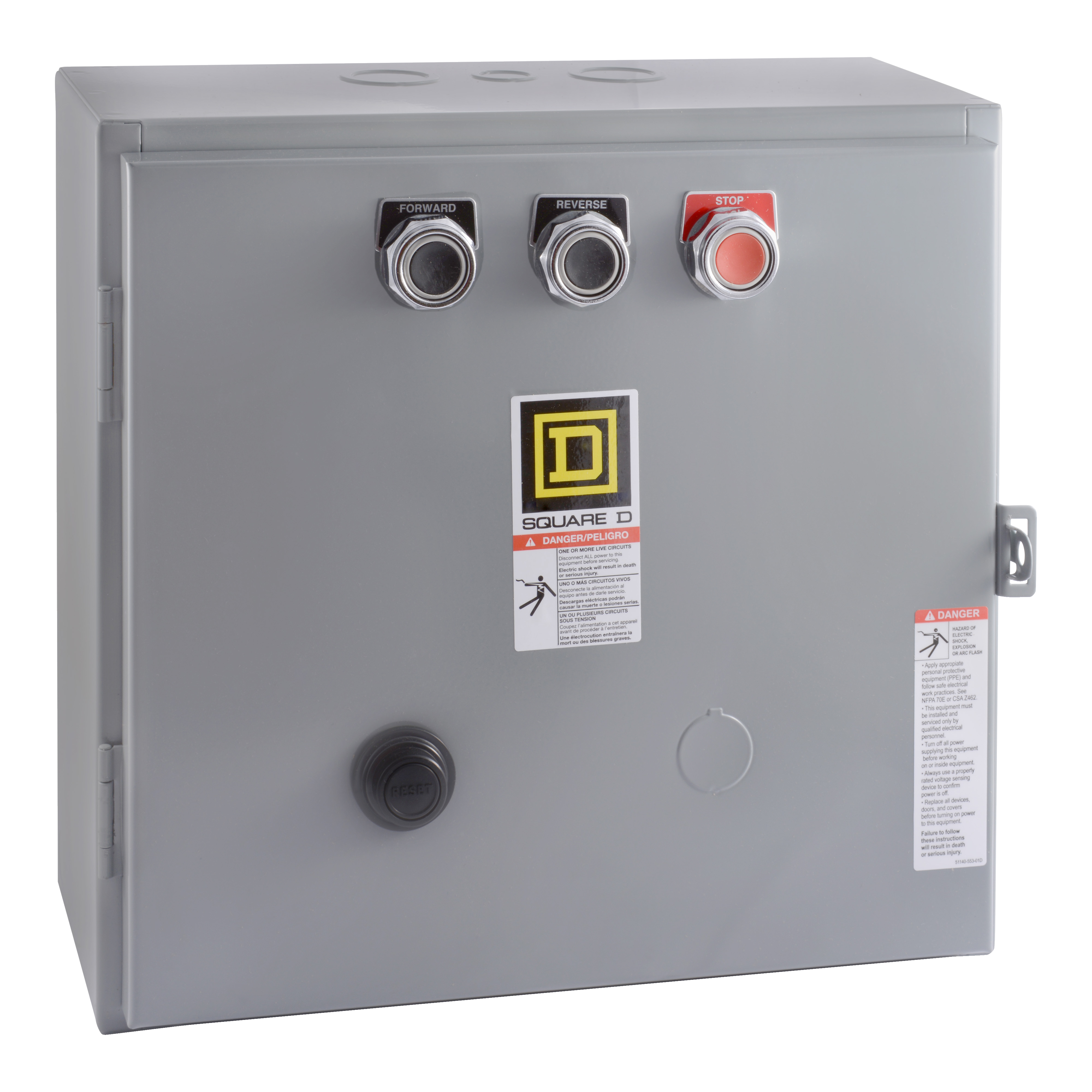

Square D 8736SDG2V02S STARTER MOTOR CONTROL 1000VAC,10HP200VAC - 15HP230VAC - 25HP460/575VAC,120VAC60Hz - 110VAC50Hz,2,3-Phase,3P,45 A,600VAC,Box Lug,NEMA 1,Reversing Starter,S,Thermal - Melting Alloy,UL Listed - CSA Certified,Used for Full-Voltage Reversing, Starting and Stopping of AC Squirrel Cage Motors
- 18 Months(WEB WARRANTY URL)
- Brochure URL - files?p_enDocType=Brochure&p_File_Name=DIA1ED1031008EN.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - b3e7ca62a818ae31a6535840833275f355d37679.pdf(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - files?p_File_Name=30072-013-11.pdf(Install Instructions 1 URL)
- Spec Sheet URL - 8cbf408df05534faa8a062160862adacac7557ca.pdf(Spec Sheet URL)
- Video - https://www.youtube.com/embed/HH4qt8sWnGI(Video)
- WEB CATALOG URL - IDW_DOCUMENT_9aa2c308c6c64eeadd67861ceed28d46585a4dcd0225d98e5f489de68498bb16.pdf(WEB CATALOG URL)
- WEB SELLER HOME PAGE URL - us(WEB SELLER HOME PAGE URL)
- WEB TECH DRAWING URL - 4e76eb6fd5441e814c2de47971b673a31d9f9f05(WEB TECH DRAWING URL)
- Applications
- Features
| USED FOR FULL-VOLTAGE REVERSING, STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS |
| SCREW CLAMP TERMINALS |
| Used for full voltage starting and stopping AC squirrel cage motors |
| NEMA type 1 general purpose enclosure |
| Screw clamp terminal |
| NEMA 2 |
