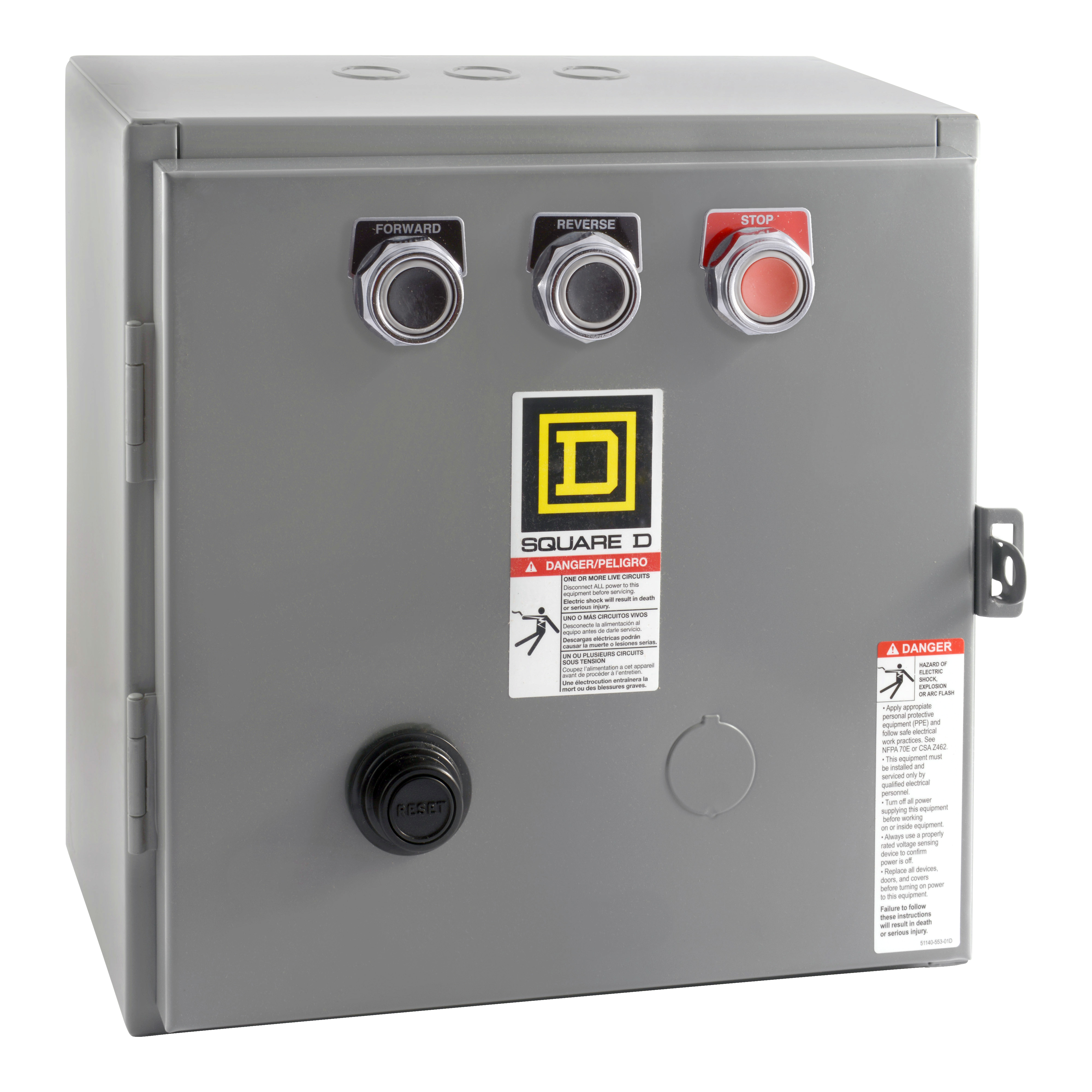

Square D™ 8736SAG16V02S STARTER MOTOR CON
SKU295660
MFGR #8736SAG16V02S
Your Cost: $1,178.31/ea
Square D 8736SAG16V02S STARTER MOTOR CONTROL <1000VAC,0,1.5HP200/230VAC - 2HP460/575VAC,120VAC60Hz - 110VAC50Hz,3-Phase,3P,600VAC,9 Amp,NEMA 1,Reversing Starter,S,Screw Clamp,Thermal - Melting Alloy,UL Listed - CSA Certified,Used for Full-Voltage Reversing, Starting and Stopping of AC Squirrel Cage Motors
Square D 8736SAG16V02S STARTER MOTOR CONTROL <1000VAC,0,1.5HP200/230VAC - 2HP460/575VAC,120VAC60Hz - 110VAC50Hz,3-Phase,3P,600VAC,9 Amp,NEMA 1,Reversing Starter,S,Screw Clamp,Thermal - Melting Alloy,UL Listed - CSA Certified,Used for Full-Voltage Reversing, Starting and Stopping of AC Squirrel Cage Motors
Alternate Catalog Number 8736SAG16V02S Amperage Rating 9 A Application USED FOR FULL-VOLTAGE REVERSING, STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 8736SAG16V02S Coil Voltage 110 VAC at 50 Hz/120 VAC at 60 Hz Connection Screw Clamp Connection Type Screw Clamp Country of Origin MX Currency USD Dimensions 11.89 in W x 7.52 in D x 11.89 in H Enclosure Type NEMA 1 EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Weight Per Pack 20.8100 lb Gross Weight per Pack Metric 9.44 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536504000 Height 23.8760 in Height [Metric] 23.8760 cm Item Group 21271 Length 36.8300 in Length [Metric] 36.8300 cm Manufacturer Schneider Electric Material Sheet Steel Motor Power 1.5 hp at 200/230 VAC/2 hp at 460/575 VAC Number Of Poles 3 Operating Cycles 6 cpm Operating Temperature 0 to 40 deg C Ambient Overload Relay Thermal Melting Alloy Phase 3 pH Power Supply 120VAC@60HZ - 110VAC@50HZ Reset Type (3) Thermal Melting Alloy Returnable N Series 8736 Size 0 Standard UL LISTED - CSA CERTIFIED Stock Status NONSTOCK Sub Brand S Type Type S UNSPSC 39121521 UPC 11 78590190363 UPC 12 785901903635 Voltage Rating 600 VAC Warranty Description Contractual Warranty:18 months Wattage 1.1 kW at 200/230 VAC/1.5 kW at 460/575 VAC Width 35.0520 in Width [Metric] 35.0520 cm USED FOR FULL-VOLTAGE REVERSING, STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS SCREW CLAMP TERMINALS Used for full voltage starting and stopping AC squirrel cage motors NEMA type 1 general purpose enclosure NEMA 00
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 8736SAG16V02S |
| Amperage Rating | 9 A |
| Application | USED FOR FULL-VOLTAGE REVERSING, STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 8736SAG16V02S |
| Coil Voltage | 110 VAC at 50 Hz/120 VAC at 60 Hz |
| Connection | Screw Clamp |
| Connection Type | Screw Clamp |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 11.89 in W x 7.52 in D x 11.89 in H |
| Enclosure Type | NEMA 1 |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 20.8100 lb |
| Gross Weight per Pack Metric | 9.44 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536504000 |
| Height | 23.8760 in |
| Height [Metric] | 23.8760 cm |
| Item Group | 21271 |
| Length | 36.8300 in |
| Length [Metric] | 36.8300 cm |
| Manufacturer | Schneider Electric |
| Material | Sheet Steel |
| Motor Power | 1.5 hp at 200/230 VAC/2 hp at 460/575 VAC |
| Number Of Poles | 3 |
| Operating Cycles | 6 cpm |
| Operating Temperature | 0 to 40 deg C Ambient |
| Overload Relay | Thermal Melting Alloy |
| Phase | 3 pH |
| Power Supply | 120VAC@60HZ - 110VAC@50HZ |
| Reset Type | (3) Thermal Melting Alloy |
| Returnable | N |
| Series | 8736 |
| Size | 0 |
| Standard | UL LISTED - CSA CERTIFIED |
| Stock Status | NONSTOCK |
| Sub Brand | S |
| Type | Type S |
| UNSPSC | 39121521 |
| UPC 11 | 78590190363 |
| UPC 12 | 785901903635 |
| Voltage Rating | 600 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 1.1 kW at 200/230 VAC/1.5 kW at 460/575 VAC |
| Width | 35.0520 in |
| Width [Metric] | 35.0520 cm |
| USED FOR FULL-VOLTAGE REVERSING, STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS |
| SCREW CLAMP TERMINALS |
| Used for full voltage starting and stopping AC squirrel cage motors |
| NEMA type 1 general purpose enclosure |
| NEMA 00 |
