Square D™ 8702SDO2V02S REVERSING CONTACTO
Starters
100126
MFG #: 8702SDO2V02S
Square D™
2222.00000
/ ea

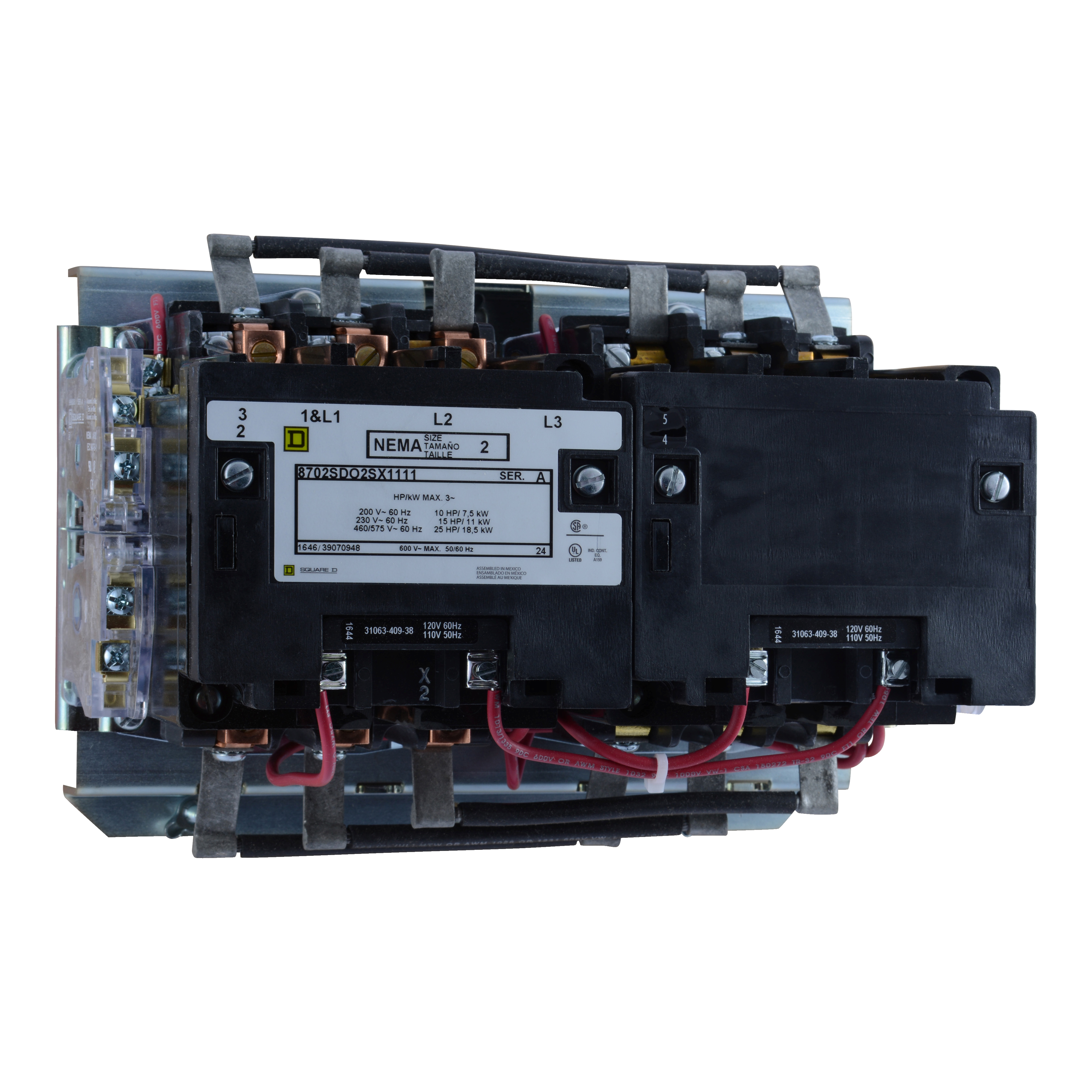

Square D 8702SDO2V02S REVERSING CONTACTOR 600VAC 45AMP NEMA,120VAC60Hz - 110VAC50Hz,2,3-Phase,3-Pole,45A,Box Lug,Reversing Contactor,UL Listed - CSA Certified,no indicator,reversing,type S
- Brochure URL - 1dd055d407a404cf0573a71104eb1e47aed1cd07.pdf(Brochure URL)
- Catalog URL - Square_D_8502SDW12V06_Catalog.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=E0301301-01.dwg(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_D2R593CZX4GMQ8IL.pdf(Install Instructions 1 URL)
- ROHS Compliance URL - Square_D_8702SDO2V02S_RoHS.pdf(ROHS Compliance URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_TC7DVN40LZK9HWM2.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_BLRGI23YHMZAFO1W.dwg(Tech Drawing URL)
- Tech Drawing URL - files?p_enDocType=Technical+Drawing&p_File_Name=E0301301-01.dxf(Tech Drawing URL)
- Applications
- Features
Reversing |
10 HP 200 V AC-15 HP 230 V AC-25 HP 460 V AC-25 HP 575 V AC,SEPARATE CONTROL CIRCUIT |
A normally open holding circuit contact for three wire control is provided as standard |
For flexibility field-installable or factory modified accessories include auxiliary contacts, power poles and cover mounted control stations |
Bell crank design promotes superior electrical and mechanical life |
NEMA sizes 00 to 5 are supplied with coils that are designed to operate satisfactorily on line voltages of 85% to 110% of rated voltage |
NEMA sizes 5, 6 and 7 contactors are supplied with a DC coil operated by a solid state rectifier circuit that is powered by an AC source |
Sizes 00 to 2 contactors use a class 9999 SX11 auxiliary contact as the holding circuit contact |
Sizes 3 to 7 contactors use a class 9999 SX6 auxiliary contact as the holding circuit contact |
600 VAC system voltage |
Screw clamp terminal |
Without indicator |
