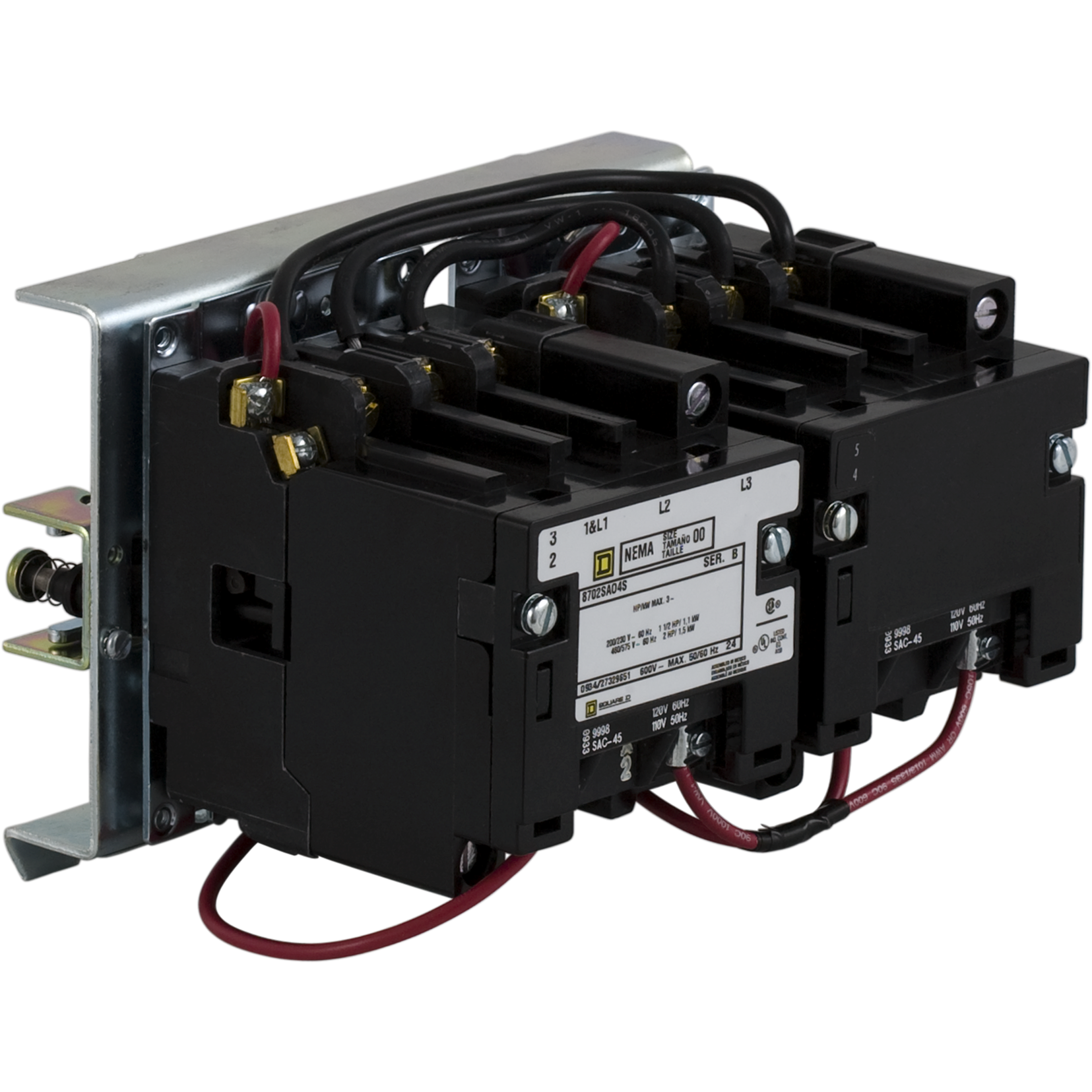

Square D™ 8702SBO4V02S REVERSING CONTACTO
NEMA & IEC Contactors
34893
MFG #: 8702SBO4V02S
Square D™
1026.00000
/ ea
Square D 8702SBO4V02S REVERSING CONTACTOR 600VAC 18A NEMA,0,120VAC60Hz - 110VAC50Hz,18A,3-Phase,3-Pole,Reversing Contactor,Screw Clamp,UL Listed - CSA Certified,no indicator,reversing,type S
- Brochure URL - 1dd055d407a404cf0573a71104eb1e47aed1cd07.pdf(Brochure URL)
- Catalog URL - Square_D_8502SDW12V06_Catalog.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=E0301101-01.dxf(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_BH9FWRCY784JTSGZ.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - files?p_File_Name=30072-013-09.pdf(Install Instructions 1 URL)
- ROHS Compliance URL - Square_D_8702SBO4V02S_RoHS.pdf(ROHS Compliance URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL(Spec Sheet URL)
- Spec Sheet URL - 11003_TP5RECQ91KN60DFM.pdf(Spec Sheet URL)
- Spec Sheet URL - 53f72a9e96f145a39ae15f2bfd629c3240616180.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_4Z9XHWGOLRI23MEQ.dxf(Tech Drawing URL)
- Tech Drawing URL - 11003_JKATZF57YULDX1QW.dwg(Tech Drawing URL)
- Tech Drawing URL - 9fb3bf8f8801c553b1be2b51d1cdbf19a03b00cd(Tech Drawing URL)
- Applications
- Features
| Reversing |
| 3 HP 200 V AC-3 HP 230 V AC-5 HP 460 V AC-5 HP 575 V AC,SEPARATE CONTROL CIRCUIT |
| A normally open holding circuit contact for three wire control is provided as standard |
| For flexibility field-installable or factory modified accessories include auxiliary contacts, power poles and cover mounted control stations |
| Bell crank design promotes superior electrical and mechanical life |
| NEMA sizes 00 to 5 are supplied with coils that are designed to operate satisfactorily on line voltages of 85% to 110% of rated voltage |
| NEMA sizes 5, 6 and 7 contactors are supplied with a DC coil operated by a solid state rectifier circuit that is powered by an AC source |
| Sizes 00 to 2 contactors use a class 9999 SX11 auxiliary contact as the holding circuit contact |
| Sizes 3 to 7 contactors use a class 9999 SX6 auxiliary contact as the holding circuit contact |
| 600 VAC system voltage |
| Without indicator |
