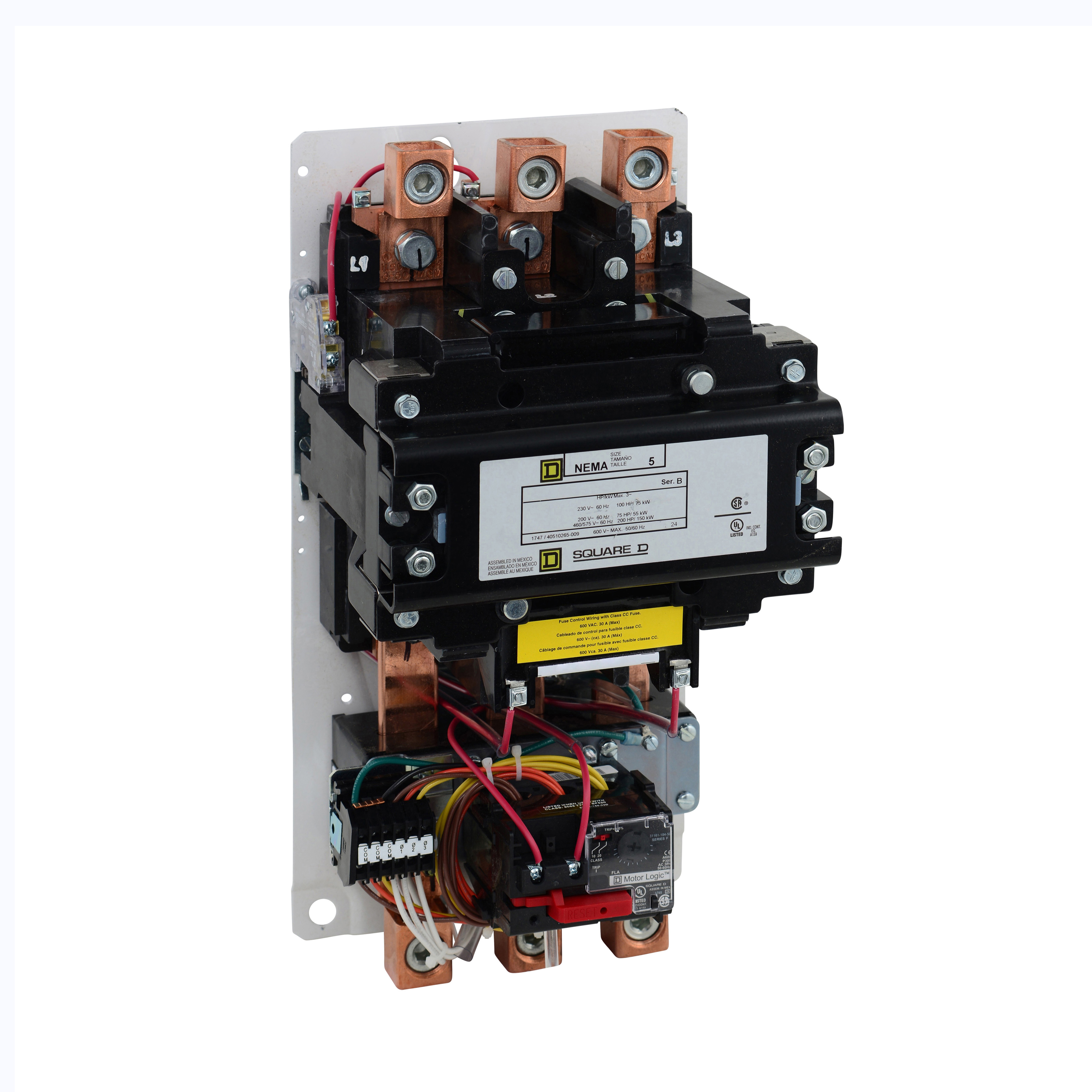

Square D™ 8536SGO1V02H30S STARTER 600VAC
SKU766477
MFGR #8536SGO1V02H30S
Your Cost: $8,778.21/ea
List: Square D 8536SGO1V02H30S STARTER 600VAC 270AMP NEMA SPECIAL,120VAC60Hz - 110VAC50Hz,270 A,3-Phase,3P,5,600VAC,75HP200VAC - 100HP230VAC - 200HP460/575VAC,Box Lug,Non-Reversing Starter,Open,S,Surface - Floor,UL Listed - CSA Certified,Used for Full-Voltage Starting and Stopping of AC Squirrel Cage Motors,solid state Motor Logic class 10/20
Square D 8536SGO1V02H30S STARTER 600VAC 270AMP NEMA SPECIAL,120VAC60Hz - 110VAC50Hz,270 A,3-Phase,3P,5,600VAC,75HP200VAC - 100HP230VAC - 200HP460/575VAC,Box Lug,Non-Reversing Starter,Open,S,Surface - Floor,UL Listed - CSA Certified,Used for Full-Voltage Starting and Stopping of AC Squirrel Cage Motors,solid state Motor Logic class 10/20
Alternate Catalog Number 8536SGO1V02H30S Application USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 8536SGO1V02H30S Coil Voltage 110 V AC 50 Hz;120 V AC 60 Hz Connection Box lug Country of Origin US Currency USD Enclosure Open EU RoHS Indicator Y Gross Volume Per Pack 0.06 Gross Volume per Pack Metric 1.00 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 32.0100 lb Gross Weight per Pack Metric 14.52 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536504000 Height 22.8600 in Height [Metric] 22.8600 cm Item Group 21194 Length 44.7040 in Length [Metric] 44.7040 cm Manufacturer Schneider Electric Mounting SURFACE - FLOOR NEMA Frame Size 5 Number Of Phases 3 Number Of Poles 3 Power Supply 120VAC60HZ - 110VAC50HZ Reset Type SOLID STATE MOTOR LOGIC CLASS 10/20 Returnable Y Size 5 Standard UL LISTED - CSA CERTIFIED Stock Status NONSTOCK Sub Brand S Substitute Product Catalog Number 9999AC04 Type NON-REVERSING STARTER UNSPSC 39121521 UPC 11 78590160408 UPC 12 785901604082 Voltage Rating 600 VAC Warranty Description Contractual Warranty:18 months Width 28.4480 in Width [Metric] 28.4480 cm USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS SCREW CLAMP TERMINALS
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 8536SGO1V02H30S |
| Application | USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 8536SGO1V02H30S |
| Coil Voltage | 110 V AC 50 Hz;120 V AC 60 Hz |
| Connection | Box lug |
| Country of Origin | US |
| Currency | USD |
| Enclosure | Open |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 0.06 |
| Gross Volume per Pack Metric | 1.00 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 32.0100 lb |
| Gross Weight per Pack Metric | 14.52 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536504000 |
| Height | 22.8600 in |
| Height [Metric] | 22.8600 cm |
| Item Group | 21194 |
| Length | 44.7040 in |
| Length [Metric] | 44.7040 cm |
| Manufacturer | Schneider Electric |
| Mounting | SURFACE - FLOOR |
| NEMA Frame Size | 5 |
| Number Of Phases | 3 |
| Number Of Poles | 3 |
| Power Supply | 120VAC60HZ - 110VAC50HZ |
| Reset Type | SOLID STATE MOTOR LOGIC CLASS 10/20 |
| Returnable | Y |
| Size | 5 |
| Standard | UL LISTED - CSA CERTIFIED |
| Stock Status | NONSTOCK |
| Sub Brand | S |
| Substitute Product Catalog Number | 9999AC04 |
| Type | NON-REVERSING STARTER |
| UNSPSC | 39121521 |
| UPC 11 | 78590160408 |
| UPC 12 | 785901604082 |
| Voltage Rating | 600 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 28.4480 in |
| Width [Metric] | 28.4480 cm |
| USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS |
| SCREW CLAMP TERMINALS |
