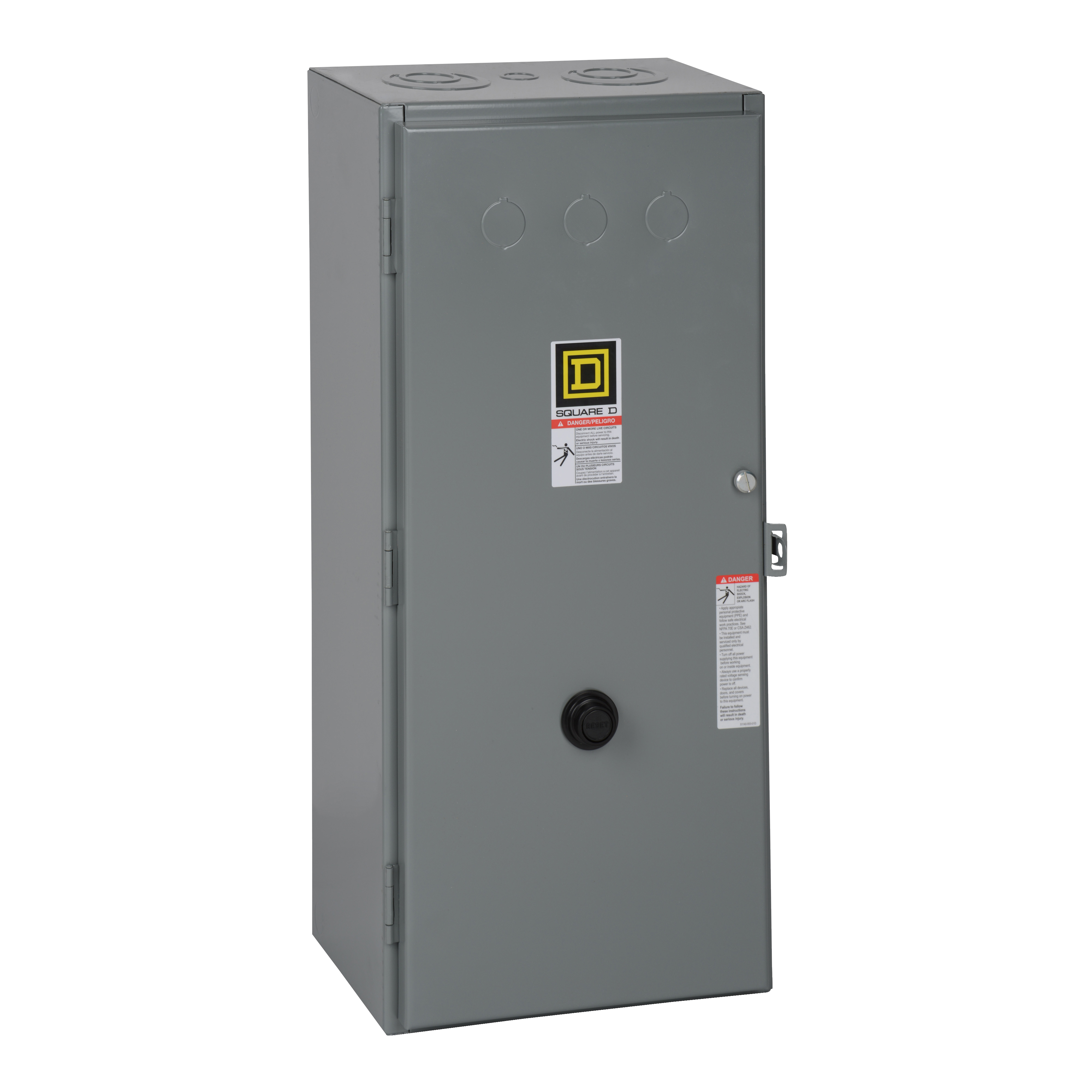

Square D™ 8536SFG1V06 STARTER 600VAC 135A
SKU242736
MFGR #8536SFG1V06
Your Cost: $5,182.71/ea
Square D 8536SFG1V06 STARTER MOTOR CONTROL 1000VAC,135 A,3-Phase,3P,4,40HP200VAC - 50HP230VAC - 100HP460/575VAC,480VAC60Hz - 440VAC50Hz,600VAC,Box Lug,NEMA 1,Non-Reversing Starter,S,Thermal - Melting Alloy,UL Listed - CSA Certified,Used for Full-Voltage Starting and Stopping of AC Squirrel Cage Motors
Square D 8536SFG1V06 STARTER MOTOR CONTROL 1000VAC,135 A,3-Phase,3P,4,40HP200VAC - 50HP230VAC - 100HP460/575VAC,480VAC60Hz - 440VAC50Hz,600VAC,Box Lug,NEMA 1,Non-Reversing Starter,S,Thermal - Melting Alloy,UL Listed - CSA Certified,Used for Full-Voltage Starting and Stopping of AC Squirrel Cage Motors
Alternate Catalog Number 8536SFG1V06 Amperage Rating 135 A Application USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS ARRA Compliant N Buy American Compliant N Catalog Number 8536SFG1V06 Connection Box lug Connection Type Box Lug Country of Origin MX Currency USD Dimensions 11.26 in W x 9.02 in D x 25.16 in H EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 3213.00 Gross Volume per Pack Metric 52651.43 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 43.8700 lb Gross Weight per Pack Metric 19.90 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536504000 Height 26.6700 in Height [Metric] 26.6700 cm Item Group 21193 Length 64.7700 in Length [Metric] 64.7700 cm Material Sheet Steel Motor Power 40 hp at 200 VAC/50 hp at 230 VAC/100 hp at 460/575 VAC NEMA Frame Size 4 Number Of Phases 3 Number Of Poles 3 Operating Cycles 3 cpm Operating Temperature 0 to 40 deg C Ambient Overload Relay Thermal Melting Alloy Phase 3 pH Power Supply 480VAC@60HZ - 440VAC@50HZ Reset Type (3) Thermal Melting Alloy Returnable Y Series 8536 Size 4 in Standard UL LISTED - CSA CERTIFIED Sub Brand S UNSPSC 39121521 UPC 11 78590183222 UPC 12 785901832225 Voltage Rating 600 VAC Warranty Description Contractual Warranty:18 months Wattage 30 kW at 200 VAC/37 kW at 230 VAC/75 kW at 460/575 VAC Width 30.4800 in Width [Metric] 30.4800 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Coil Voltage 440 VAC at 50 Hz/480 VAC at 60 Hz Enclosure Type NEMA 1 Type Type S USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS SCREW CLAMP TERMINALS Used for full voltage starting and stopping AC squirrel cage motors NEMA type 1 general purpose enclosure Screw clamp terminal NEMA 4
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 8536SFG1V06 |
| Amperage Rating | 135 A |
| Application | USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | 8536SFG1V06 |
| Connection | Box lug |
| Connection Type | Box Lug |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 11.26 in W x 9.02 in D x 25.16 in H |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 3213.00 |
| Gross Volume per Pack Metric | 52651.43 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 43.8700 lb |
| Gross Weight per Pack Metric | 19.90 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536504000 |
| Height | 26.6700 in |
| Height [Metric] | 26.6700 cm |
| Item Group | 21193 |
| Length | 64.7700 in |
| Length [Metric] | 64.7700 cm |
| Material | Sheet Steel |
| Motor Power | 40 hp at 200 VAC/50 hp at 230 VAC/100 hp at 460/575 VAC |
| NEMA Frame Size | 4 |
| Number Of Phases | 3 |
| Number Of Poles | 3 |
| Operating Cycles | 3 cpm |
| Operating Temperature | 0 to 40 deg C Ambient |
| Overload Relay | Thermal Melting Alloy |
| Phase | 3 pH |
| Power Supply | 480VAC@60HZ - 440VAC@50HZ |
| Reset Type | (3) Thermal Melting Alloy |
| Returnable | Y |
| Series | 8536 |
| Size | 4 in |
| Standard | UL LISTED - CSA CERTIFIED |
| Sub Brand | S |
| UNSPSC | 39121521 |
| UPC 11 | 78590183222 |
| UPC 12 | 785901832225 |
| Voltage Rating | 600 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 30 kW at 200 VAC/37 kW at 230 VAC/75 kW at 460/575 VAC |
| Width | 30.4800 in |
| Width [Metric] | 30.4800 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Coil Voltage | 440 VAC at 50 Hz/480 VAC at 60 Hz |
| Enclosure Type | NEMA 1 |
| Type | Type S |
| USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS |
| SCREW CLAMP TERMINALS |
| Used for full voltage starting and stopping AC squirrel cage motors |
| NEMA type 1 general purpose enclosure |
| Screw clamp terminal |
| NEMA 4 |
