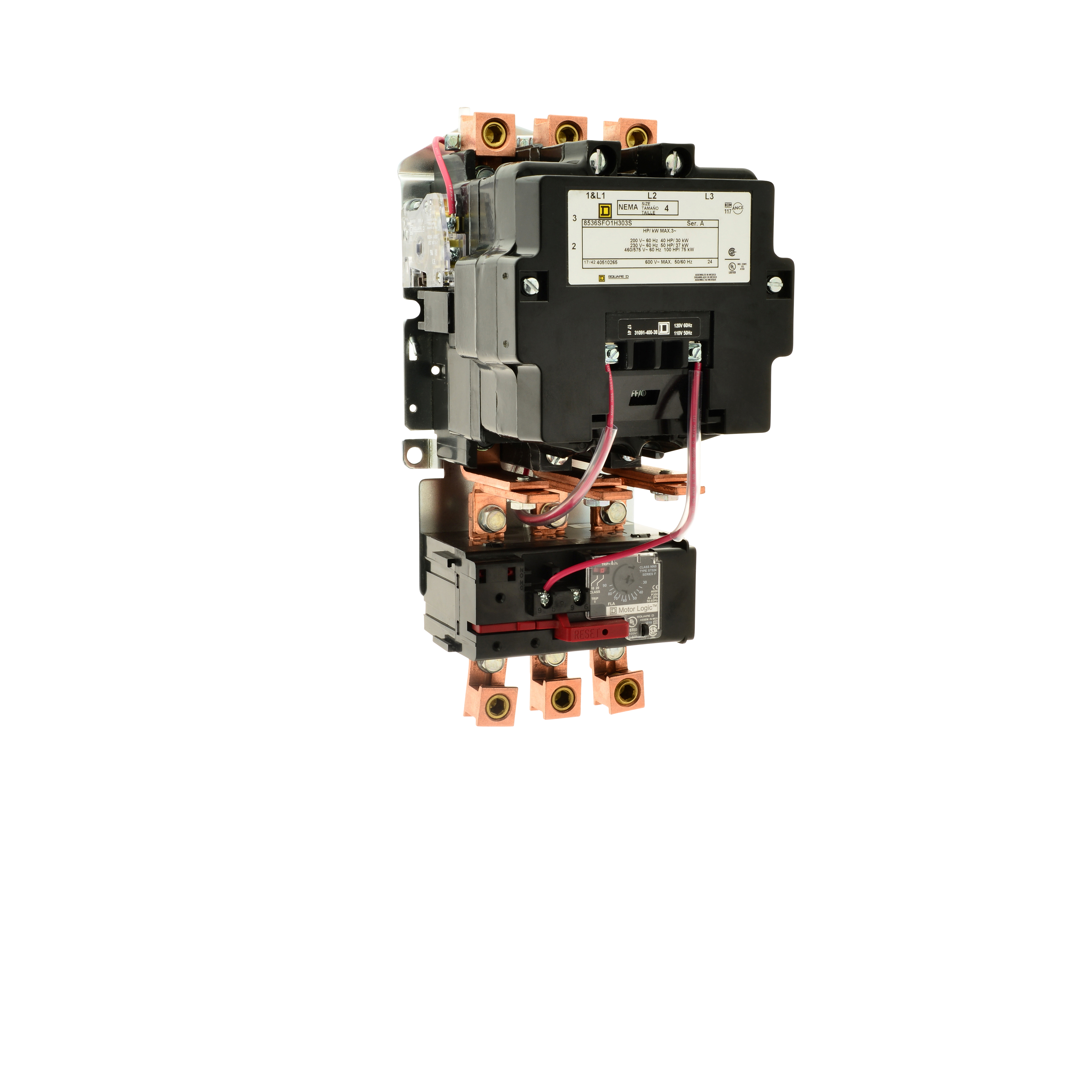

Square D™ 8536SFG1V02S STARTER 600VAC 135
SKU34693
MFGR #8536SFG1V02S
Your Cost: $4,076.57/ea
List: Square D 8536SFG1V02S STARTER MOTOR CONTROL 1000VAC,120VAC60Hz - 110VAC50Hz,135 A,3 phases,4,40HP200VAC - 50HP230VAC - 100HP460/575VAC,600 V AC,NEMA 1 painted sheet steel,S,Screw Clamp,UL Listed - CSA Certified,Used for Full-Voltage Starting and Stopping of AC Squirrel Cage Motors,melting alloy 3,starter
Square D 8536SFG1V02S STARTER MOTOR CONTROL 1000VAC,120VAC60Hz - 110VAC50Hz,135 A,3 phases,4,40HP200VAC - 50HP230VAC - 100HP460/575VAC,600 V AC,NEMA 1 painted sheet steel,S,Screw Clamp,UL Listed - CSA Certified,Used for Full-Voltage Starting and Stopping of AC Squirrel Cage Motors,melting alloy 3,starter
Alternate Catalog Number 8536SFG1V02S Amperage Rating 135 A Application USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 8536SFG1V02S Coil Voltage 110 VAC at 50 Hz/120 VAC at 60 Hz Connection Screw clamp terminals Connection Type Screw Clamp Country of Origin MX Currency USD Dimensions 11.26 in W x 9.02 in D x 25.16 in H Enclosure Type NEMA 1 EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 3216.57 Gross Volume per Pack Metric 52709.93 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 43.3000 lb Gross Weight per Pack Metric 19.64 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536504000 Height 26.9240 in Height [Metric] 26.9240 cm Item Group 21193 Length 64.7700 in Length [Metric] 64.7700 cm Manufacturer Schneider Electric Material Sheet Steel Motor Power 40 hp at 200 VAC/50 hp at 230 VAC/100 hp at 460/575 VAC NEMA Frame Size 4 Number Of Phases 3 Number Of Poles 3 Operating Cycles 3 cpm Operating Temperature 0 to 40 deg C Ambient Phase 3 pH Power Supply 120VAC@60HZ - 110VAC@50HZ Reset Type (3) Thermal Melting Alloy Returnable Y Series 8536 Size 229 MM,286 MM,639 MM in Standard UL LISTED-CSA-NEMA Stock Status NONSTOCK Sub Brand S Type Type S UNSPSC 39121521 UPC 11 78590183223 UPC 12 785901832232 Voltage Rating 600 VAC Warranty Description Contractual Warranty:18 months Wattage 30 kW at 200 VAC/37 kW at 230 VAC/75 kW at 460/575 VAC Width 30.2260 in Width [Metric] 30.2260 cm USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS SCREW CLAMP TERMINALS Used for full voltage starting and stopping AC squirrel cage motors NEMA type 1 general purpose enclosure NEMA 4
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 8536SFG1V02S |
| Amperage Rating | 135 A |
| Application | USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 8536SFG1V02S |
| Coil Voltage | 110 VAC at 50 Hz/120 VAC at 60 Hz |
| Connection | Screw clamp terminals |
| Connection Type | Screw Clamp |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 11.26 in W x 9.02 in D x 25.16 in H |
| Enclosure Type | NEMA 1 |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 3216.57 |
| Gross Volume per Pack Metric | 52709.93 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 43.3000 lb |
| Gross Weight per Pack Metric | 19.64 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536504000 |
| Height | 26.9240 in |
| Height [Metric] | 26.9240 cm |
| Item Group | 21193 |
| Length | 64.7700 in |
| Length [Metric] | 64.7700 cm |
| Manufacturer | Schneider Electric |
| Material | Sheet Steel |
| Motor Power | 40 hp at 200 VAC/50 hp at 230 VAC/100 hp at 460/575 VAC |
| NEMA Frame Size | 4 |
| Number Of Phases | 3 |
| Number Of Poles | 3 |
| Operating Cycles | 3 cpm |
| Operating Temperature | 0 to 40 deg C Ambient |
| Phase | 3 pH |
| Power Supply | 120VAC@60HZ - 110VAC@50HZ |
| Reset Type | (3) Thermal Melting Alloy |
| Returnable | Y |
| Series | 8536 |
| Size | 229 MM,286 MM,639 MM in |
| Standard | UL LISTED-CSA-NEMA |
| Stock Status | NONSTOCK |
| Sub Brand | S |
| Type | Type S |
| UNSPSC | 39121521 |
| UPC 11 | 78590183223 |
| UPC 12 | 785901832232 |
| Voltage Rating | 600 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 30 kW at 200 VAC/37 kW at 230 VAC/75 kW at 460/575 VAC |
| Width | 30.2260 in |
| Width [Metric] | 30.2260 cm |
| USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS |
| SCREW CLAMP TERMINALS |
| Used for full voltage starting and stopping AC squirrel cage motors |
| NEMA type 1 general purpose enclosure |
| NEMA 4 |
