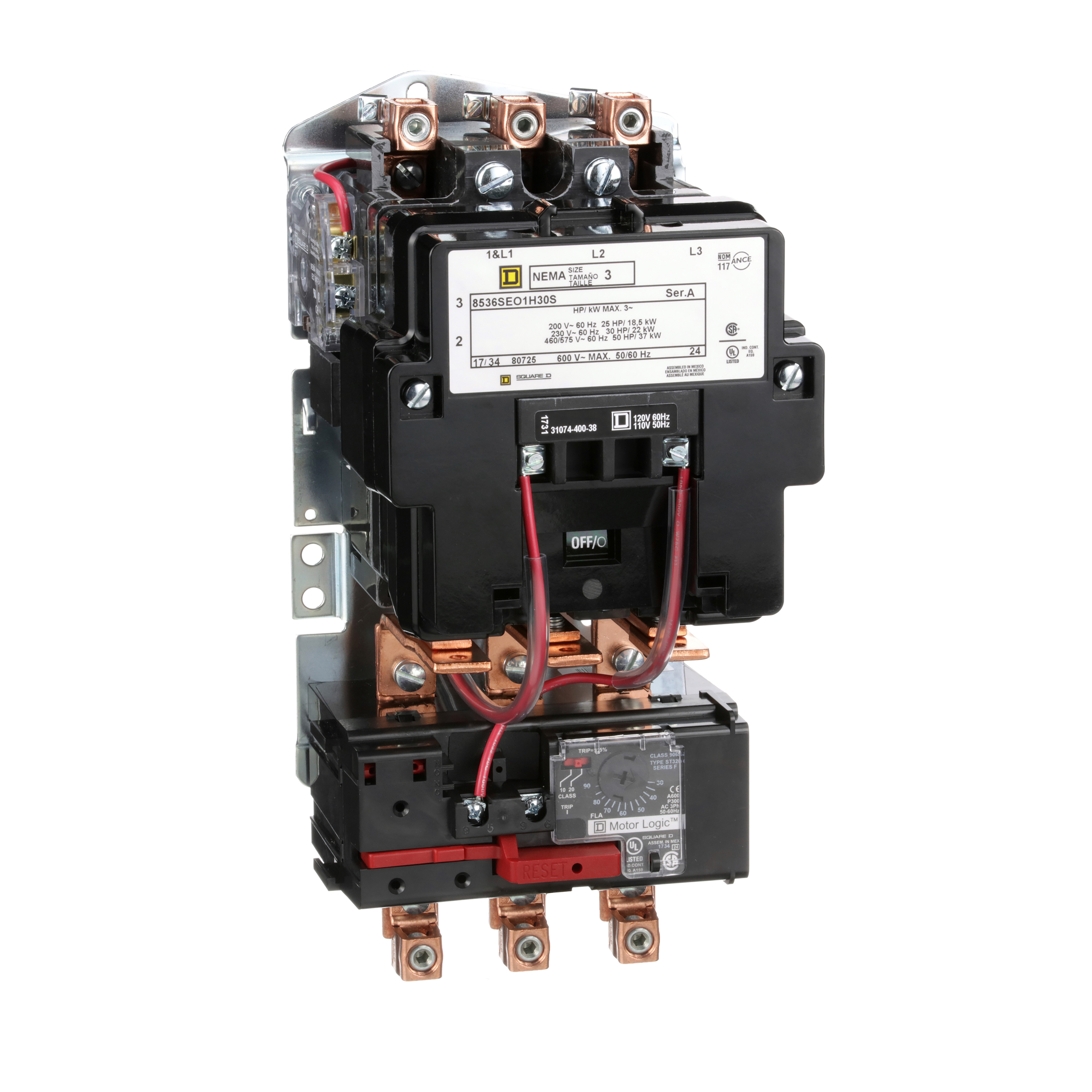

Square D™ 8536SEO1V02H30S Type S Non-Reversing NEMA Magnetic Starter, 110/120 VAC Coil, 3-Poles, Open Enclosure
Custom_Product_Images_Illustration
Square D™ 8536SEO1V02H30S Type S Non-Reversing NEMA Magnetic Starter, 110/120 VAC Coil, 3-Poles, Open Enclosure
SKU330621
MFGR #8536SEO1V02H30S
Call For Price
List: Square D 8536SEO1V02H30S STARTER 600VAC 90AMP NEMA +OPTIONS,120VAC60Hz - 110VAC50Hz,25HP200VAC - 30HP230VAC - 50HP460/575VAC,3,3 phases,600 V AC,90 A,S,Screw Clamp,UL Listed - CSA Certified,Used for Full-Voltage Starting and Stopping of AC Squirrel Cage Motors,not rated (open device),solid state Motor Logic class 10/20,starter
Square D 8536SEO1V02H30S STARTER 600VAC 90AMP NEMA +OPTIONS,120VAC60Hz - 110VAC50Hz,25HP200VAC - 30HP230VAC - 50HP460/575VAC,3,3 phases,600 V AC,90 A,S,Screw Clamp,UL Listed - CSA Certified,Used for Full-Voltage Starting and Stopping of AC Squirrel Cage Motors,not rated (open device),solid state Motor Logic class 10/20,starter
Alternate Catalog Number 8536SEO1V02H30S Amperage Rating 90 A Application USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 8536SEO1V02H30S Coil Voltage 110 to 120 VAC Connection Screw clamp terminals Connection Type Screw Clamp Country of Origin US Currency USD Dimensions 11-3/32 in H x 5-15/32 in W x 6-1/2 in D Disconnect Type no control units Enclosure Type NEMA 3/Open EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 933.12 Gross Volume per Pack Metric 15291.04 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.0719 lb Gross Weight per Pack Metric 7.21 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536504000 Height 19.0500 in Height [Metric] 18.5420 cm Item Group 21193 Length 36.5760 in Length [Metric] 36.3220 cm Manufacturer Schneider Electric Motor Power 50 hp NEMA Frame Size 3 Number Of Phases 3 Number Of Poles 3 Overload Relay Solid State Motor Logic Power Supply 120VAC@60HZ - 110VAC@50HZ Reset Type SOLID STATE MOTOR LOGIC CLASS 10/20 Returnable Y Size 139 MM,165 MM,282 MM Standard NEMA-UL LISTED-CSA Standards UL Listed, CSA Certified, RoHS Compliant Stock Status NORMALLY STOCKED Sub Brand S Substitute Product Catalog Number 9999RR04 Type Type S Non-Reversing UNSPSC 39121521 UPC 11 78590180725 UPC 12 785901807254 Voltage Rating 600 VAC Warranty Description Contractual Warranty:18 months Width 22.8600 in Width [Metric] 22.0980 cm USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS SCREW CLAMP TERMINALS
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 8536SEO1V02H30S |
| Amperage Rating | 90 A |
| Application | USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 8536SEO1V02H30S |
| Coil Voltage | 110 to 120 VAC |
| Connection | Screw clamp terminals |
| Connection Type | Screw Clamp |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 11-3/32 in H x 5-15/32 in W x 6-1/2 in D |
| Disconnect Type | no control units |
| Enclosure Type | NEMA 3/Open |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 933.12 |
| Gross Volume per Pack Metric | 15291.04 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.0719 lb |
| Gross Weight per Pack Metric | 7.21 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536504000 |
| Height | 19.0500 in |
| Height [Metric] | 18.5420 cm |
| Item Group | 21193 |
| Length | 36.5760 in |
| Length [Metric] | 36.3220 cm |
| Manufacturer | Schneider Electric |
| Motor Power | 50 hp |
| NEMA Frame Size | 3 |
| Number Of Phases | 3 |
| Number Of Poles | 3 |
| Overload Relay | Solid State Motor Logic |
| Power Supply | 120VAC@60HZ - 110VAC@50HZ |
| Reset Type | SOLID STATE MOTOR LOGIC CLASS 10/20 |
| Returnable | Y |
| Size | 139 MM,165 MM,282 MM |
| Standard | NEMA-UL LISTED-CSA |
| Standards | UL Listed, CSA Certified, RoHS Compliant |
| Stock Status | NORMALLY STOCKED |
| Sub Brand | S |
| Substitute Product Catalog Number | 9999RR04 |
| Type | Type S Non-Reversing |
| UNSPSC | 39121521 |
| UPC 11 | 78590180725 |
| UPC 12 | 785901807254 |
| Voltage Rating | 600 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 22.8600 in |
| Width [Metric] | 22.0980 cm |
| USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS |
| SCREW CLAMP TERMINALS |
