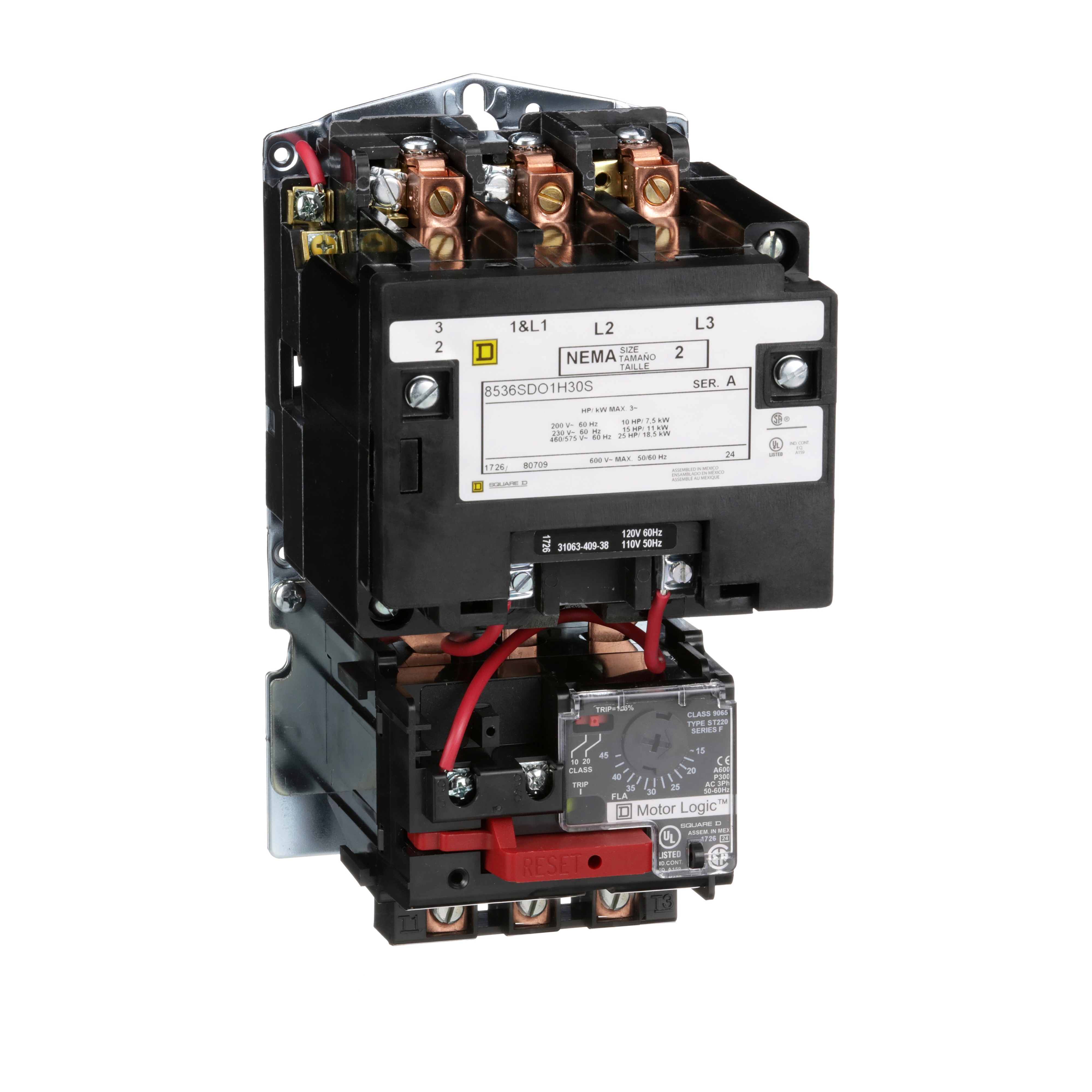

Square D™ 8536SDO1V02H30S Type S Non-Reversing NEMA Magnetic Starter, 110/120 VAC Coil, 3-Poles, Open Enclosure
Custom_Product_Images_Illustration
Square D™
Square D™ 8536SDO1V02H30S Type S Non-Reversing NEMA Magnetic Starter, 110/120 VAC Coil, 3-Poles, Open Enclosure
SKU466868
MFGR #8536SDO1V02H30S
Your Cost: $1,115.00/ea
Square D 8536SDO1V02H30S STARTER 600VAC 45AMP NEMA +OPTIONS,10HP200VAC - 15HP230VAC - 25HP460/575VAC,120VAC60Hz - 110VAC50Hz,2,3 phases,45 A,600 V AC,S,Screw Clamp,UL Listed - CSA Certified,Used for Full-Voltage Starting and Stopping of AC Squirrel Cage Motors,not rated (open device),solid state Motor Logic class 10/20,starter
Square D 8536SDO1V02H30S STARTER 600VAC 45AMP NEMA +OPTIONS,10HP200VAC - 15HP230VAC - 25HP460/575VAC,120VAC60Hz - 110VAC50Hz,2,3 phases,45 A,600 V AC,S,Screw Clamp,UL Listed - CSA Certified,Used for Full-Voltage Starting and Stopping of AC Squirrel Cage Motors,not rated (open device),solid state Motor Logic class 10/20,starter
Alternate Catalog Number 8536SDO1V02H30S Amperage Rating 45 A Application USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 8536SDO1V02H30S Coil Voltage 110 to 120 VAC Connection Screw clamp terminals Connection Type Screw Clamp Country of Origin MX Currency USD Dimensions 7.8 in H x 4.29 in W x 4.92 in D Enclosure Type NEMA 2/Open EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 432.30 Gross Volume per Pack Metric 7084.10 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 6.9900 lb Gross Weight per Pack Metric 3.17 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536504000 Height 17.7800 in Height [Metric] 18.5420 cm Item Group 21192 Length 24.1300 in Length [Metric] 24.3840 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=518717&lang=en-us Motor Power 10 hp, 15 hp, 25 hp NEMA Frame Size 2 Number Of Phases 3 Number Of Poles 3 Overload Relay Motor Logic® Class 10/20 Solid State Phase 3 pH Power Supply 120VAC@60HZ - 110VAC@50HZ Reset Type Motor Logic™ Solid State Returnable Y Size 109 MM,125 MM,198 MM in Standard UL LISTED-NEMA-CSA Starting Modes Magnetic Stock Status NORMALLY STOCKED Sub Brand S Substitute Product Catalog Number 9999SX11 Type Type S Non-Reversing UNSPSC 39121521 UPC 11 78590180709 UPC 12 785901807094 Voltage Rating 600 VAC Warranty Description Contractual Warranty:18 months Width 16.5100 in Width [Metric] 17.5260 cm USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS SCREW CLAMP TERMINALS 10 hp at 200 VAC, 15 hp at 230 VAC, 25 hp at 460/575 VAC motor power rating Full-voltage starters start and stop 3-phase AC motors, Manual push-to-test and visible trip indicator Trip-free construction allows overload relay to trip even if reset lever is blocked or in the reset position Open enclosure Normally open holding circuit contact for 3-wire control Angled contacts provide high contact pressure and positive seating Spring-assisted gravity dropout on de-energizing quickly extinguishes any arcing Surface mounting 10 hp at 200 VAC, 15 hp at 230 VAC, 25 hp at 460/575 VAC Separate control circuit Type S starter Solid state motor logic class 10/20 Open enclosure
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 8536SDO1V02H30S |
| Amperage Rating | 45 A |
| Application | USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 8536SDO1V02H30S |
| Coil Voltage | 110 to 120 VAC |
| Connection | Screw clamp terminals |
| Connection Type | Screw Clamp |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 7.8 in H x 4.29 in W x 4.92 in D |
| Enclosure Type | NEMA 2/Open |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 432.30 |
| Gross Volume per Pack Metric | 7084.10 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 6.9900 lb |
| Gross Weight per Pack Metric | 3.17 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536504000 |
| Height | 17.7800 in |
| Height [Metric] | 18.5420 cm |
| Item Group | 21192 |
| Length | 24.1300 in |
| Length [Metric] | 24.3840 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=518717&lang=en-us |
| Motor Power | 10 hp, 15 hp, 25 hp |
| NEMA Frame Size | 2 |
| Number Of Phases | 3 |
| Number Of Poles | 3 |
| Overload Relay | Motor Logic® Class 10/20 Solid State |
| Phase | 3 pH |
| Power Supply | 120VAC@60HZ - 110VAC@50HZ |
| Reset Type | Motor Logic™ Solid State |
| Returnable | Y |
| Size | 109 MM,125 MM,198 MM in |
| Standard | UL LISTED-NEMA-CSA |
| Starting Modes | Magnetic |
| Stock Status | NORMALLY STOCKED |
| Sub Brand | S |
| Substitute Product Catalog Number | 9999SX11 |
| Type | Type S Non-Reversing |
| UNSPSC | 39121521 |
| UPC 11 | 78590180709 |
| UPC 12 | 785901807094 |
| Voltage Rating | 600 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 16.5100 in |
| Width [Metric] | 17.5260 cm |
| USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS |
| SCREW CLAMP TERMINALS |
| 10 hp at 200 VAC, 15 hp at 230 VAC, 25 hp at 460/575 VAC motor power rating |
| Full-voltage starters start and stop 3-phase AC motors, Manual push-to-test and visible trip indicator |
| Trip-free construction allows overload relay to trip even if reset lever is blocked or in the reset position |
| Open enclosure Normally open holding circuit contact for 3-wire control |
| Angled contacts provide high contact pressure and positive seating |
| Spring-assisted gravity dropout on de-energizing quickly extinguishes any arcing |
| Surface mounting |
| 10 hp at 200 VAC, 15 hp at 230 VAC, 25 hp at 460/575 VAC |
| Separate control circuit |
| Type S starter |
| Solid state motor logic class 10/20 |
| Open enclosure |
