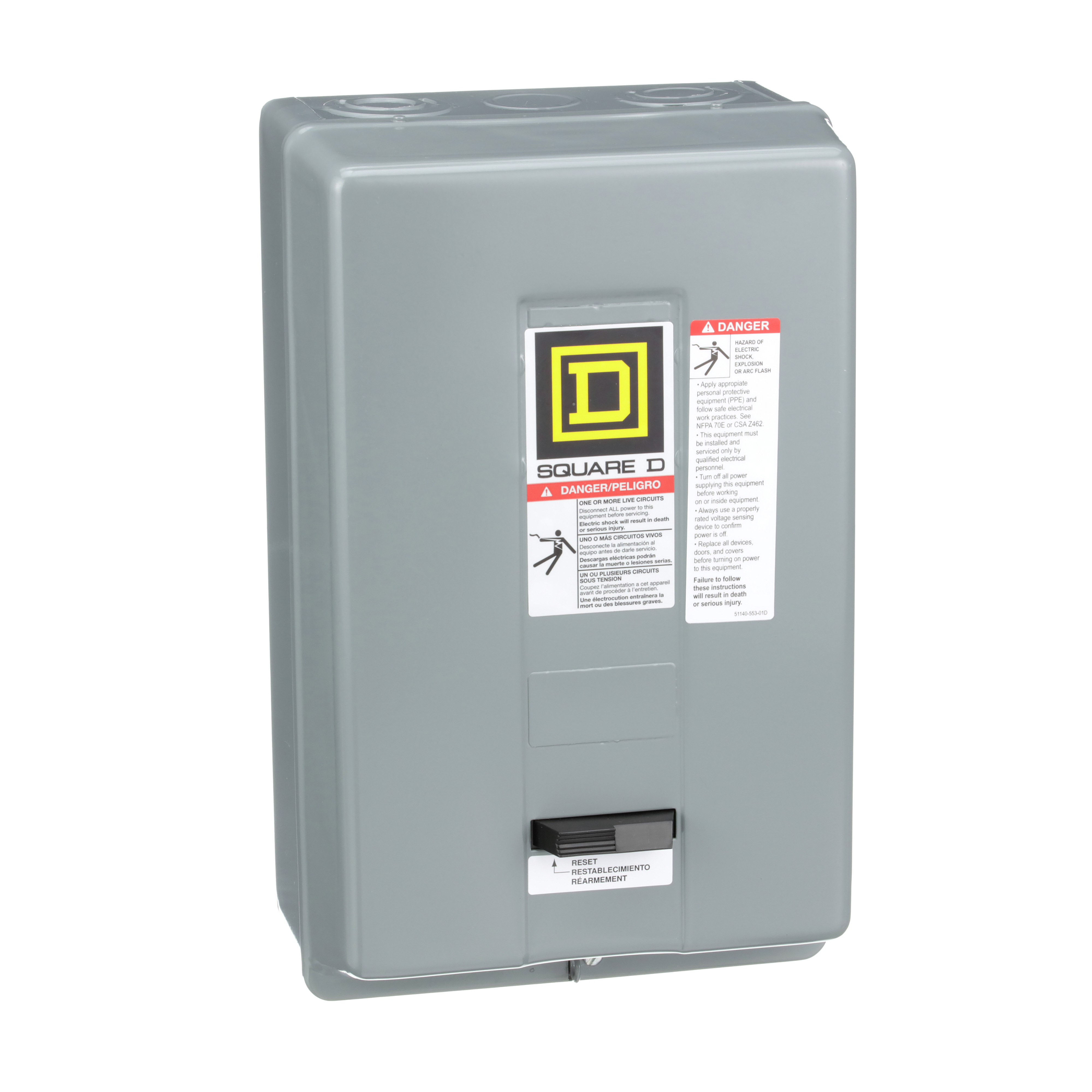

Square D™ 8536SDG1V08 STARTER 600VAC 45AM
SKU34459
MFGR #8536SDG1V08
Your Cost: $1,087.09/ea
List: Square D 8536SDG1V08 STARTER MOTOR CONTROL 1000VAC,10HP200VAC - 15HP230VAC - 25HP460/575VAC,2,208VAC60Hz,3 phases,45 A,600 V AC,NEMA 1 painted sheet steel,S,Screw Clamp,UL Listed - CSA Certified,Used for Full-Voltage Starting and Stopping of AC Squirrel Cage Motors,melting alloy 3,starter
Square D 8536SDG1V08 STARTER MOTOR CONTROL 1000VAC,10HP200VAC - 15HP230VAC - 25HP460/575VAC,2,208VAC60Hz,3 phases,45 A,600 V AC,NEMA 1 painted sheet steel,S,Screw Clamp,UL Listed - CSA Certified,Used for Full-Voltage Starting and Stopping of AC Squirrel Cage Motors,melting alloy 3,starter
Alternate Catalog Number 8536SDG1V08 Amperage Rating 45 A Application USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 8536SDG1V08 Coil Voltage 208 VAC at 60 Hz V Connection Screw clamp terminals Connection Type Screw Clamp Country of Origin US Currency USD Dimensions 7.8 in W x 6.3 in D x 12.68 in H Enclosure Type NEMA 1 EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 807.09 Gross Volume per Pack Metric 13225.82 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 14.1800 lb Gross Weight per Pack Metric 6.43 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536504000 Height 17.2720 in Height [Metric] 17.2720 cm Item Group 21192 Length 36.3220 in Length [Metric] 36.3220 cm Manufacturer Schneider Electric Material Sheet Steel Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=517947&lang=en-us Motor Power 10 hp at 200 VAC/15 hp at 230 VAC/25 hp at 460/575 VAC NEMA Frame Size 2 Number Of Phases 3 Number Of Poles 3 Operating Cycles 10 cpm Operating Temperature 0 to 40 deg C Ambient Phase 3 pH Power Supply 208VAC@60HZ Reset Type (3) Thermal Melting Alloy Returnable Y Series 8536 Size 160 MM,198 MM,322 MM in Standard CSA-UL LISTED-NEMA Stock Status NONSTOCK Sub Brand S Substitute Product Catalog Number 9999SA3 Type Type S UNSPSC 39121521 UPC 11 78590178422 UPC 12 785901784227 Voltage Rating 600 VAC Warranty Description Contractual Warranty:18 months Wattage 7.5 kW at 200 VAC/11 kW at 230 VAC/18.5 kW at 460 VAC/18.5 kW at 575 VAC Width 21.0820 in Width [Metric] 21.0820 cm USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS SCREW CLAMP TERMINALS Used for full voltage starting and stopping AC squirrel cage motors NEMA type 1 general purpose enclosure NEMA 2
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 8536SDG1V08 |
| Amperage Rating | 45 A |
| Application | USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 8536SDG1V08 |
| Coil Voltage | 208 VAC at 60 Hz V |
| Connection | Screw clamp terminals |
| Connection Type | Screw Clamp |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 7.8 in W x 6.3 in D x 12.68 in H |
| Enclosure Type | NEMA 1 |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 807.09 |
| Gross Volume per Pack Metric | 13225.82 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 14.1800 lb |
| Gross Weight per Pack Metric | 6.43 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536504000 |
| Height | 17.2720 in |
| Height [Metric] | 17.2720 cm |
| Item Group | 21192 |
| Length | 36.3220 in |
| Length [Metric] | 36.3220 cm |
| Manufacturer | Schneider Electric |
| Material | Sheet Steel |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=517947&lang=en-us |
| Motor Power | 10 hp at 200 VAC/15 hp at 230 VAC/25 hp at 460/575 VAC |
| NEMA Frame Size | 2 |
| Number Of Phases | 3 |
| Number Of Poles | 3 |
| Operating Cycles | 10 cpm |
| Operating Temperature | 0 to 40 deg C Ambient |
| Phase | 3 pH |
| Power Supply | 208VAC@60HZ |
| Reset Type | (3) Thermal Melting Alloy |
| Returnable | Y |
| Series | 8536 |
| Size | 160 MM,198 MM,322 MM in |
| Standard | CSA-UL LISTED-NEMA |
| Stock Status | NONSTOCK |
| Sub Brand | S |
| Substitute Product Catalog Number | 9999SA3 |
| Type | Type S |
| UNSPSC | 39121521 |
| UPC 11 | 78590178422 |
| UPC 12 | 785901784227 |
| Voltage Rating | 600 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 7.5 kW at 200 VAC/11 kW at 230 VAC/18.5 kW at 460 VAC/18.5 kW at 575 VAC |
| Width | 21.0820 in |
| Width [Metric] | 21.0820 cm |
| USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS |
| SCREW CLAMP TERMINALS |
| Used for full voltage starting and stopping AC squirrel cage motors |
| NEMA type 1 general purpose enclosure |
| NEMA 2 |
