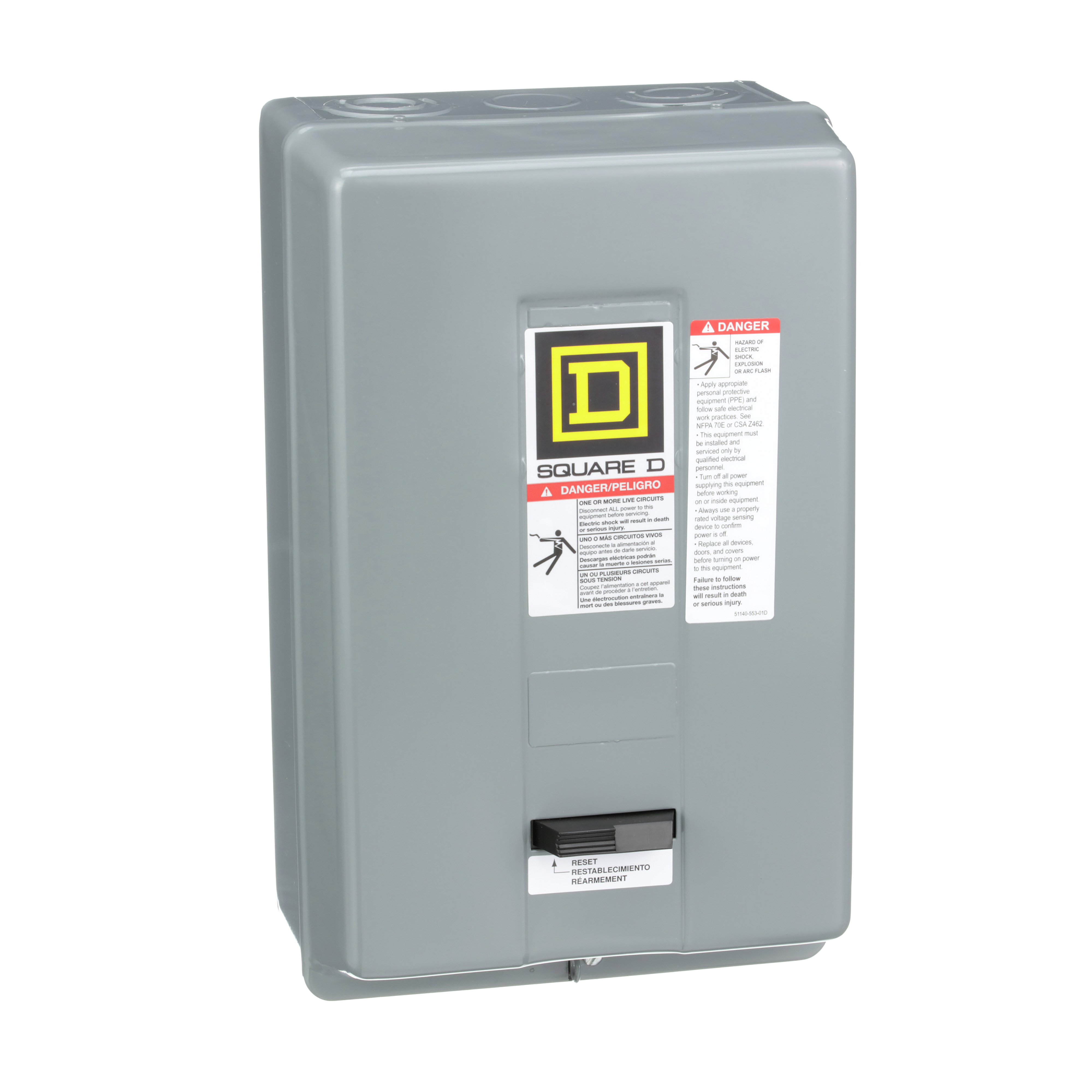

Square D™ 8536SDG1V03 Type S General Purpose Non-Reversing NEMA Magnetic Starter, 220/240 VAC Coil, 3-Poles
Custom_Product_Images_Illustration
Square D™ 8536SDG1V03 Type S General Purpose Non-Reversing NEMA Magnetic Starter, 220/240 VAC Coil, 3-Poles
SKU35030
MFGR #8536SDG1V03
Your Cost: $1,087.09/ea
List: Square D 8536SDG1V03 STARTER MOTOR CONTROL 1000VAC,10HP200VAC - 15HP230VAC - 25HP460/575VAC,2,240VAC60Hz - 220VAC50Hz,3 phases,45 A,600 V AC,NEMA 1 painted sheet steel,S,Screw Clamp,UL Listed - CSA Certified,Used for Full-Voltage Starting and Stopping of AC Squirrel Cage Motors,melting alloy 3,starter
Square D 8536SDG1V03 STARTER MOTOR CONTROL 1000VAC,10HP200VAC - 15HP230VAC - 25HP460/575VAC,2,240VAC60Hz - 220VAC50Hz,3 phases,45 A,600 V AC,NEMA 1 painted sheet steel,S,Screw Clamp,UL Listed - CSA Certified,Used for Full-Voltage Starting and Stopping of AC Squirrel Cage Motors,melting alloy 3,starter
Action Non-Reversing Alternate Catalog Number 8536SDG1V03 Amperage Rating 45 A Application USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 8536SDG1V03 Coil Voltage 220 to 240 VAC Connection Screw clamp terminals Connection Type Screw Clamp Country of Origin MX Currency USD Dimensions 12-11/16 in H x 7-13/16 in W x 6-5/16 in D Enclosure Type NEMA 1/2 EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 873.79 Gross Volume per Pack Metric 14318.83 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 13.0500 lb Gross Weight per Pack Metric 5.92 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536504000 Height 18.7960 in Height [Metric] 18.7960 cm Item Group 21192 Length 36.5760 in Length [Metric] 36.5760 cm Manufacturer Schneider Electric Material Sheet Steel Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=517779&lang=en-us Motor Power 10 hp, 25 hp Number Of Phases 3 Number Of Poles 3 Overload Relay Thermal Melting Alloy 3 Power Supply 240VAC@60HZ - 220VAC@50HZ Reset Type MELTING ALLOY 3 THERMAL UNITS Returnable Y Size 160 MM,198 MM,322 MM in Standard UL LISTED-NEMA-CSA Stock Status NONSTOCK Sub Brand S Substitute Product Catalog Number 9999SC2 Type Type S General Purpose UNSPSC 39121521 UPC 11 78590188170 UPC 12 785901881704 Voltage Rating 600 VAC Warranty Description Contractual Warranty:18 months Width 20.8280 in Width [Metric] 20.8280 cm USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS SCREW CLAMP TERMINALS 10 hp at 200 VAC, 15 hp at 230 VAC, 25 hp at 460/575 VAC power rating Full-voltage starters start and stop 1- and 3-phase AC motors. Manual push-to-test and visible trip indicator Trip-free construction allows overload relay to trip even if reset lever is blocked or in the reset position Normally open holding circuit contact for 3-wire control Angled contacts provide high contact pressure and positive seating Spring-assisted gravity dropout on de-energizing contacts quickly extinguishes any arcing Surface mounting 10 hp at 200 VAC, 15 hp at 230 VAC, 25 hp at 460/575 VAC Flush mounting general purpose enclosure Type S starter NEMA 1 painted sheet steel
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Action | Non-Reversing |
| Alternate Catalog Number | 8536SDG1V03 |
| Amperage Rating | 45 A |
| Application | USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 8536SDG1V03 |
| Coil Voltage | 220 to 240 VAC |
| Connection | Screw clamp terminals |
| Connection Type | Screw Clamp |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 12-11/16 in H x 7-13/16 in W x 6-5/16 in D |
| Enclosure Type | NEMA 1/2 |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 873.79 |
| Gross Volume per Pack Metric | 14318.83 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 13.0500 lb |
| Gross Weight per Pack Metric | 5.92 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536504000 |
| Height | 18.7960 in |
| Height [Metric] | 18.7960 cm |
| Item Group | 21192 |
| Length | 36.5760 in |
| Length [Metric] | 36.5760 cm |
| Manufacturer | Schneider Electric |
| Material | Sheet Steel |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=517779&lang=en-us |
| Motor Power | 10 hp, 25 hp |
| Number Of Phases | 3 |
| Number Of Poles | 3 |
| Overload Relay | Thermal Melting Alloy 3 |
| Power Supply | 240VAC@60HZ - 220VAC@50HZ |
| Reset Type | MELTING ALLOY 3 THERMAL UNITS |
| Returnable | Y |
| Size | 160 MM,198 MM,322 MM in |
| Standard | UL LISTED-NEMA-CSA |
| Stock Status | NONSTOCK |
| Sub Brand | S |
| Substitute Product Catalog Number | 9999SC2 |
| Type | Type S General Purpose |
| UNSPSC | 39121521 |
| UPC 11 | 78590188170 |
| UPC 12 | 785901881704 |
| Voltage Rating | 600 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 20.8280 in |
| Width [Metric] | 20.8280 cm |
| USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS |
| SCREW CLAMP TERMINALS |
| 10 hp at 200 VAC, 15 hp at 230 VAC, 25 hp at 460/575 VAC power rating |
| Full-voltage starters start and stop 1- and 3-phase AC motors. Manual push-to-test and visible trip indicator |
| Trip-free construction allows overload relay to trip even if reset lever is blocked or in the reset position |
| Normally open holding circuit contact for 3-wire control |
| Angled contacts provide high contact pressure and positive seating |
| Spring-assisted gravity dropout on de-energizing contacts quickly extinguishes any arcing |
| Surface mounting |
| 10 hp at 200 VAC, 15 hp at 230 VAC, 25 hp at 460/575 VAC |
| Flush mounting general purpose enclosure |
| Type S starter |
| NEMA 1 painted sheet steel |
