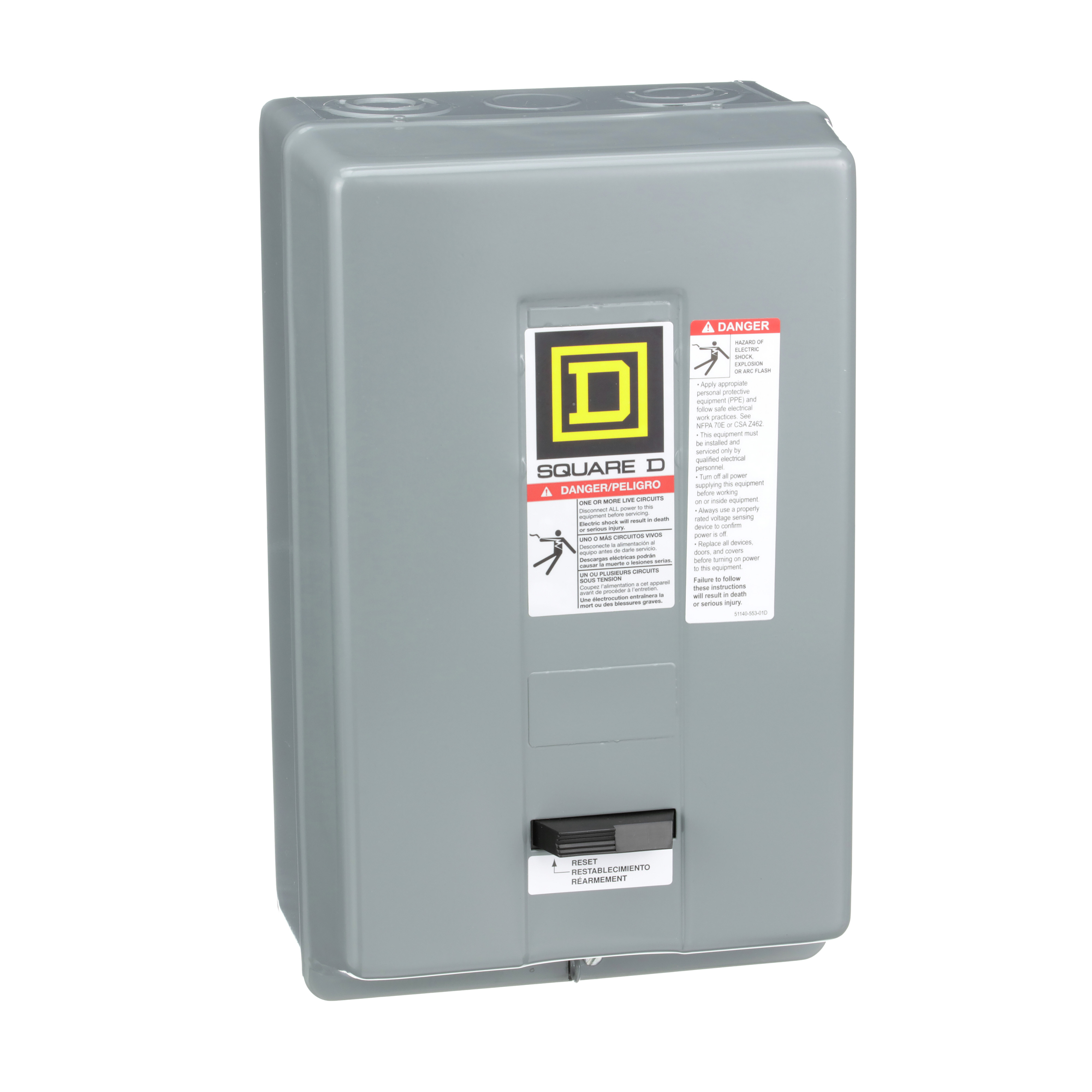

Square D™ 8536SDG1V02S Type S Non-Reversing Starter, 3-Poles, NEMA 1 Enclosure
Custom_Product_Images_Illustration
Square D™
Square D™ 8536SDG1V02S Type S Non-Reversing Starter, 3-Poles, NEMA 1 Enclosure
SKU35032
MFGR #8536SDG1V02S
Your Cost: $1,087.09/ea
List: Square D 8536SDG1V02S STARTER MOTOR CONTROL 1000VAC,10HP200VAC - 15HP230VAC - 25HP460/575VAC,120VAC60Hz - 110VAC50Hz,2,3 phases,45 A,600 V AC,NEMA 1 painted sheet steel,S,Screw Clamp,UL Listed - CSA Certified,Used for Full-Voltage Starting and Stopping of AC Squirrel Cage Motors,melting alloy 3,starter
Square D 8536SDG1V02S STARTER MOTOR CONTROL 1000VAC,10HP200VAC - 15HP230VAC - 25HP460/575VAC,120VAC60Hz - 110VAC50Hz,2,3 phases,45 A,600 V AC,NEMA 1 painted sheet steel,S,Screw Clamp,UL Listed - CSA Certified,Used for Full-Voltage Starting and Stopping of AC Squirrel Cage Motors,melting alloy 3,starter
Alternate Catalog Number 8536SDG1V02S Amperage Rating 45 A Application USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 8536SDG1V02S Coil Voltage 110 to 120 VAC Connection Screw clamp terminals Connection Type Screw Clamp Country of Origin MX Currency USD Dimensions 12.68 in H x 6.3 in W x 7.8 in D Enclosure Type NEMA 1/2 EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 828.75 Gross Volume per Pack Metric 13580.73 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 13.1550 lb Gross Weight per Pack Metric 5.98 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536504000 Height 18.5420 in Height [Metric] 18.5420 cm Item Group 21192 Length 34.2900 in Length [Metric] 34.7980 cm Manufacturer Schneider Electric Material Sheet Steel Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=517765&lang=en-us Motor Power 10 hp, 15 hp, 25 hp NEMA Frame Size 2 Number Of Phases 3 Number Of Poles 3 Overload Relay Thermal Melting Alloy 3 Phase 3 pH Power Supply 120VAC@60HZ - 110VAC@50HZ Reset Type MELTING ALLOY 3 THERMAL UNITS Returnable Y Size 160 MM,198 MM,322 MM in Standard CSA-NEMA-UL LISTED Starting Modes Magnetic Stock Status NORMALLY STOCKED Sub Brand S Substitute Product Catalog Number 9999ST1 Type Type S General Purpose Non-Reversing UNSPSC 39121521 UPC 11 78590188192 UPC 12 785901881926 Voltage Rating 600 VAC Warranty Description Contractual Warranty:18 months Width 21.3360 in Width [Metric] 21.5900 cm USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS SCREW CLAMP TERMINALS Non-reversing Magnetic Starters Used to switch AC inductive motors Available from NEMA Size 00 to NEMA Size 7 Supplied with VAC coil 50/60 Hz. Rated for 600 volts maximum, up to 600 HP and with a maximum of 810A Bellcrank design is used to get improved electrical and mechanical life Replaceable coil and contacts UL and CSA approvals
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 8536SDG1V02S |
| Amperage Rating | 45 A |
| Application | USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 8536SDG1V02S |
| Coil Voltage | 110 to 120 VAC |
| Connection | Screw clamp terminals |
| Connection Type | Screw Clamp |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 12.68 in H x 6.3 in W x 7.8 in D |
| Enclosure Type | NEMA 1/2 |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 828.75 |
| Gross Volume per Pack Metric | 13580.73 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 13.1550 lb |
| Gross Weight per Pack Metric | 5.98 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536504000 |
| Height | 18.5420 in |
| Height [Metric] | 18.5420 cm |
| Item Group | 21192 |
| Length | 34.2900 in |
| Length [Metric] | 34.7980 cm |
| Manufacturer | Schneider Electric |
| Material | Sheet Steel |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=517765&lang=en-us |
| Motor Power | 10 hp, 15 hp, 25 hp |
| NEMA Frame Size | 2 |
| Number Of Phases | 3 |
| Number Of Poles | 3 |
| Overload Relay | Thermal Melting Alloy 3 |
| Phase | 3 pH |
| Power Supply | 120VAC@60HZ - 110VAC@50HZ |
| Reset Type | MELTING ALLOY 3 THERMAL UNITS |
| Returnable | Y |
| Size | 160 MM,198 MM,322 MM in |
| Standard | CSA-NEMA-UL LISTED |
| Starting Modes | Magnetic |
| Stock Status | NORMALLY STOCKED |
| Sub Brand | S |
| Substitute Product Catalog Number | 9999ST1 |
| Type | Type S General Purpose Non-Reversing |
| UNSPSC | 39121521 |
| UPC 11 | 78590188192 |
| UPC 12 | 785901881926 |
| Voltage Rating | 600 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 21.3360 in |
| Width [Metric] | 21.5900 cm |
| USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS |
| SCREW CLAMP TERMINALS |
| Non-reversing Magnetic Starters |
| Used to switch AC inductive motors |
| Available from NEMA Size 00 to NEMA Size 7 |
| Supplied with VAC coil 50/60 Hz. |
| Rated for 600 volts maximum, up to 600 HP and with a maximum of 810A |
| Bellcrank design is used to get improved electrical and mechanical life |
| Replaceable coil and contacts |
| UL and CSA approvals |
