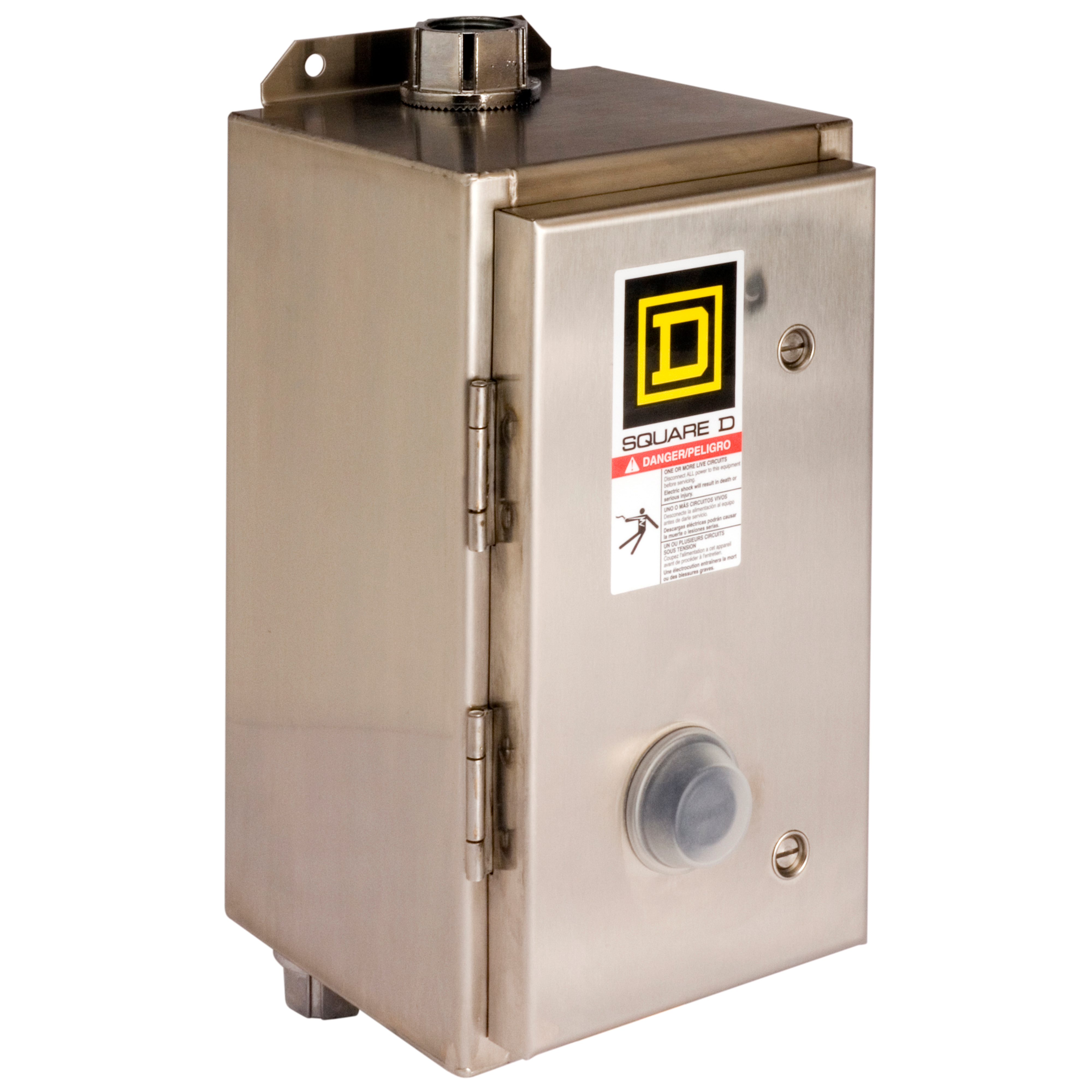

Square D™ 8536SCW13V02S STARTER 600VAC 27
SKU179495
MFGR #8536SCW13V02S
Your Cost: $1,103.00/ea
Square D 8536SCW13V02S STARTER 600VAC 27AMP NEMA +OPTIONS,1,120VAC60Hz - 110VAC50Hz,27 A,3-Phase,3P,600VAC,7.5HP200/230VAC - 10HP460/575VAC,NEMA 4/4X,Non-Reversing Starter,S,Screw Clamp,Thermal - Melting Alloy,UL Listed - CSA Certified,Used for Full-Voltage Starting and Stopping of AC Squirrel Cage Motors
Square D 8536SCW13V02S STARTER 600VAC 27AMP NEMA +OPTIONS,1,120VAC60Hz - 110VAC50Hz,27 A,3-Phase,3P,600VAC,7.5HP200/230VAC - 10HP460/575VAC,NEMA 4/4X,Non-Reversing Starter,S,Screw Clamp,Thermal - Melting Alloy,UL Listed - CSA Certified,Used for Full-Voltage Starting and Stopping of AC Squirrel Cage Motors
Alternate Catalog Number 8536SCW13V02S Amperage Rating 27 A Application USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 8536SCW13V02S Coil Voltage 110 VAC at 50 Hz/120 VAC at 60 Hz Connection Screw Clamp Connection Type Screw Clamp Country of Origin MX Currency USD Dimensions 6.38 in W x 7.8 in D x 13.19 in H Enclosure Type NEMA 4/4X EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Weight Per Pack 13.6200 lb Gross Weight per Pack Metric 6.18 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536504000 Height 7.0866 in Height [Metric] 17.7800 cm Item Group 21203 Length 13.3858 in Length [Metric] 34.0360 cm Manufacturer Schneider Electric Material Stainless Steel Motor Power 7.5 hp at 200/230 VAC/10 hp at 460/575 VAC Number Of Phases 3 Number Of Poles 3 Operating Cycles 10 cpm Operating Temperature 0 to 40 deg C Ambient Overload Relay Thermal Melting Alloy Phase 3 pH Power Supply 120VAC@60HZ - 110VAC@50HZ Reset Type (3) Thermal Melting Alloy Returnable N Series 8536 Size 1 in Standard UL LISTED - CSA CERTIFIED Stock Status NONSTOCK Sub Brand S Type Type S UNSPSC 39121521 UPC 11 78590105750 UPC 12 785901057505 Voltage Rating 600 VAC Warranty Description Contractual Warranty:18 months Width 8.2677 in Width [Metric] 21.0820 cm USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS SCREW CLAMP TERMINALS Used for full voltage starting and stopping AC squirrel cage motors NEMA type 4 and 4X water tight, dust tight brushed stainless steel enclosure NEMA 1
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 8536SCW13V02S |
| Amperage Rating | 27 A |
| Application | USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 8536SCW13V02S |
| Coil Voltage | 110 VAC at 50 Hz/120 VAC at 60 Hz |
| Connection | Screw Clamp |
| Connection Type | Screw Clamp |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 6.38 in W x 7.8 in D x 13.19 in H |
| Enclosure Type | NEMA 4/4X |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 13.6200 lb |
| Gross Weight per Pack Metric | 6.18 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536504000 |
| Height | 7.0866 in |
| Height [Metric] | 17.7800 cm |
| Item Group | 21203 |
| Length | 13.3858 in |
| Length [Metric] | 34.0360 cm |
| Manufacturer | Schneider Electric |
| Material | Stainless Steel |
| Motor Power | 7.5 hp at 200/230 VAC/10 hp at 460/575 VAC |
| Number Of Phases | 3 |
| Number Of Poles | 3 |
| Operating Cycles | 10 cpm |
| Operating Temperature | 0 to 40 deg C Ambient |
| Overload Relay | Thermal Melting Alloy |
| Phase | 3 pH |
| Power Supply | 120VAC@60HZ - 110VAC@50HZ |
| Reset Type | (3) Thermal Melting Alloy |
| Returnable | N |
| Series | 8536 |
| Size | 1 in |
| Standard | UL LISTED - CSA CERTIFIED |
| Stock Status | NONSTOCK |
| Sub Brand | S |
| Type | Type S |
| UNSPSC | 39121521 |
| UPC 11 | 78590105750 |
| UPC 12 | 785901057505 |
| Voltage Rating | 600 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 8.2677 in |
| Width [Metric] | 21.0820 cm |
| USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS |
| SCREW CLAMP TERMINALS |
| Used for full voltage starting and stopping AC squirrel cage motors |
| NEMA type 4 and 4X water tight, dust tight brushed stainless steel enclosure |
| NEMA 1 |
