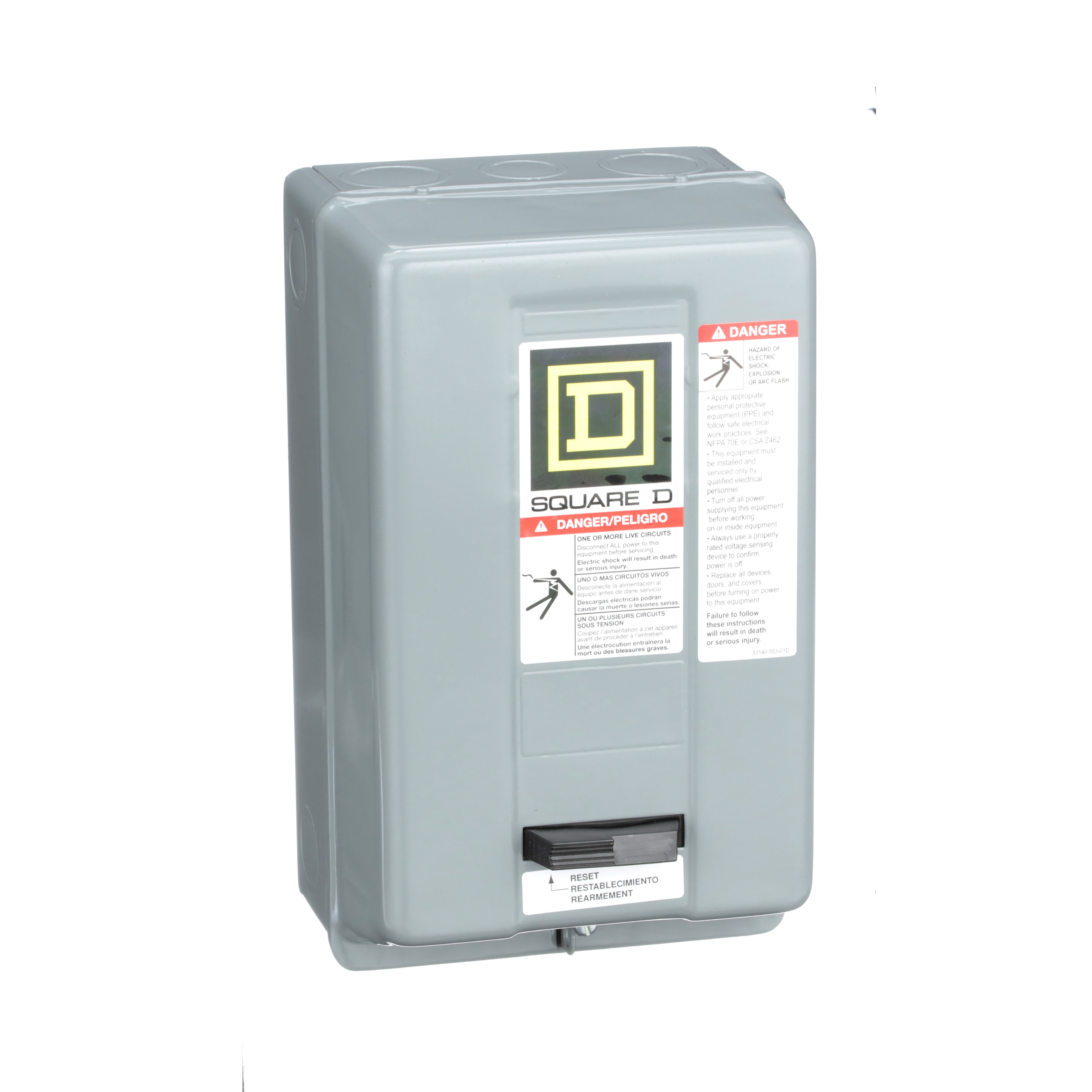

Square D™ 8536SCG3V08 Type S General Purpose Non-Reversing NEMA Magnetic Starter, 208 VAC Coil, 3-Poles
Custom_Product_Images_Illustration
Square D™ 8536SCG3V08 Type S General Purpose Non-Reversing NEMA Magnetic Starter, 208 VAC Coil, 3-Poles
SKU34413
MFGR #8536SCG3V08
Your Cost: $552.91/ea
List: Square D 8536SCG3V08 STARTER MOTOR CONTROL 1000VAC,1,208VAC60Hz,27 A,3 phases,600 V AC,7.5HP200/230VAC - 10HP460/575VAC,NEMA 1 painted sheet steel,S,Screw Clamp,UL Listed - CSA Certified,Used for Full-Voltage Starting and Stopping of AC Squirrel Cage Motors,melting alloy 3,starter
Square D 8536SCG3V08 STARTER MOTOR CONTROL 1000VAC,1,208VAC60Hz,27 A,3 phases,600 V AC,7.5HP200/230VAC - 10HP460/575VAC,NEMA 1 painted sheet steel,S,Screw Clamp,UL Listed - CSA Certified,Used for Full-Voltage Starting and Stopping of AC Squirrel Cage Motors,melting alloy 3,starter
Alternate Catalog Number 8536SCG3V08 Amperage Rating 27 A Application USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 8536SCG3V08 Coil Voltage 208 VAC Connection Screw clamp terminals Connection Type Screw Clamp Country of Origin MX Currency USD Dimensions 10 in H x 5.98 in W x 5.55 in D Enclosure Type NEMA 1 EU RoHS Indicator Y Frequency Rating 60 Hz Gross Volume Per Pack 434.18 Gross Volume per Pack Metric 7114.84 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 7.4500 lb Gross Weight per Pack Metric 3.38 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536504000 Height 15.0000 in Height [Metric] 15.0000 cm Item Group 21192 Length 29.0000 in Length [Metric] 29.0000 cm Manufacturer Schneider Electric Material Sheet Steel Motor Power 7-1/2 hp, 10 hp Number Of Phases 3 Number Of Poles 3 Overload Relay Thermal Melting Alloy 3 Power Supply 208VAC@60HZ Reset Type MELTING ALLOY 3 THERMAL UNITS Returnable Y Size 141 MM,152 MM,254 MM in Standard NEMA-UL LISTED-CSA Starting Modes Magnetic Stock Status NONSTOCK Sub Brand S Substitute Product Catalog Number 9999SC2 Type Type S General Purpose Non-Reversing UNSPSC 39121521 UPC 11 78590176581 UPC 12 785901765813 Voltage Rating 600 VAC Warranty Description Contractual Warranty:18 months Width 16.3000 in Width [Metric] 16.3000 cm USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS SCREW CLAMP TERMINALS 7-1/2 hp at 200/230 VAC, 10 hp at 460/575 VAC motor power rating
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 8536SCG3V08 |
| Amperage Rating | 27 A |
| Application | USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 8536SCG3V08 |
| Coil Voltage | 208 VAC |
| Connection | Screw clamp terminals |
| Connection Type | Screw Clamp |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 10 in H x 5.98 in W x 5.55 in D |
| Enclosure Type | NEMA 1 |
| EU RoHS Indicator | Y |
| Frequency Rating | 60 Hz |
| Gross Volume Per Pack | 434.18 |
| Gross Volume per Pack Metric | 7114.84 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 7.4500 lb |
| Gross Weight per Pack Metric | 3.38 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536504000 |
| Height | 15.0000 in |
| Height [Metric] | 15.0000 cm |
| Item Group | 21192 |
| Length | 29.0000 in |
| Length [Metric] | 29.0000 cm |
| Manufacturer | Schneider Electric |
| Material | Sheet Steel |
| Motor Power | 7-1/2 hp, 10 hp |
| Number Of Phases | 3 |
| Number Of Poles | 3 |
| Overload Relay | Thermal Melting Alloy 3 |
| Power Supply | 208VAC@60HZ |
| Reset Type | MELTING ALLOY 3 THERMAL UNITS |
| Returnable | Y |
| Size | 141 MM,152 MM,254 MM in |
| Standard | NEMA-UL LISTED-CSA |
| Starting Modes | Magnetic |
| Stock Status | NONSTOCK |
| Sub Brand | S |
| Substitute Product Catalog Number | 9999SC2 |
| Type | Type S General Purpose Non-Reversing |
| UNSPSC | 39121521 |
| UPC 11 | 78590176581 |
| UPC 12 | 785901765813 |
| Voltage Rating | 600 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 16.3000 in |
| Width [Metric] | 16.3000 cm |
| USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS |
| SCREW CLAMP TERMINALS |
| 7-1/2 hp at 200/230 VAC, 10 hp at 460/575 VAC motor power rating |
