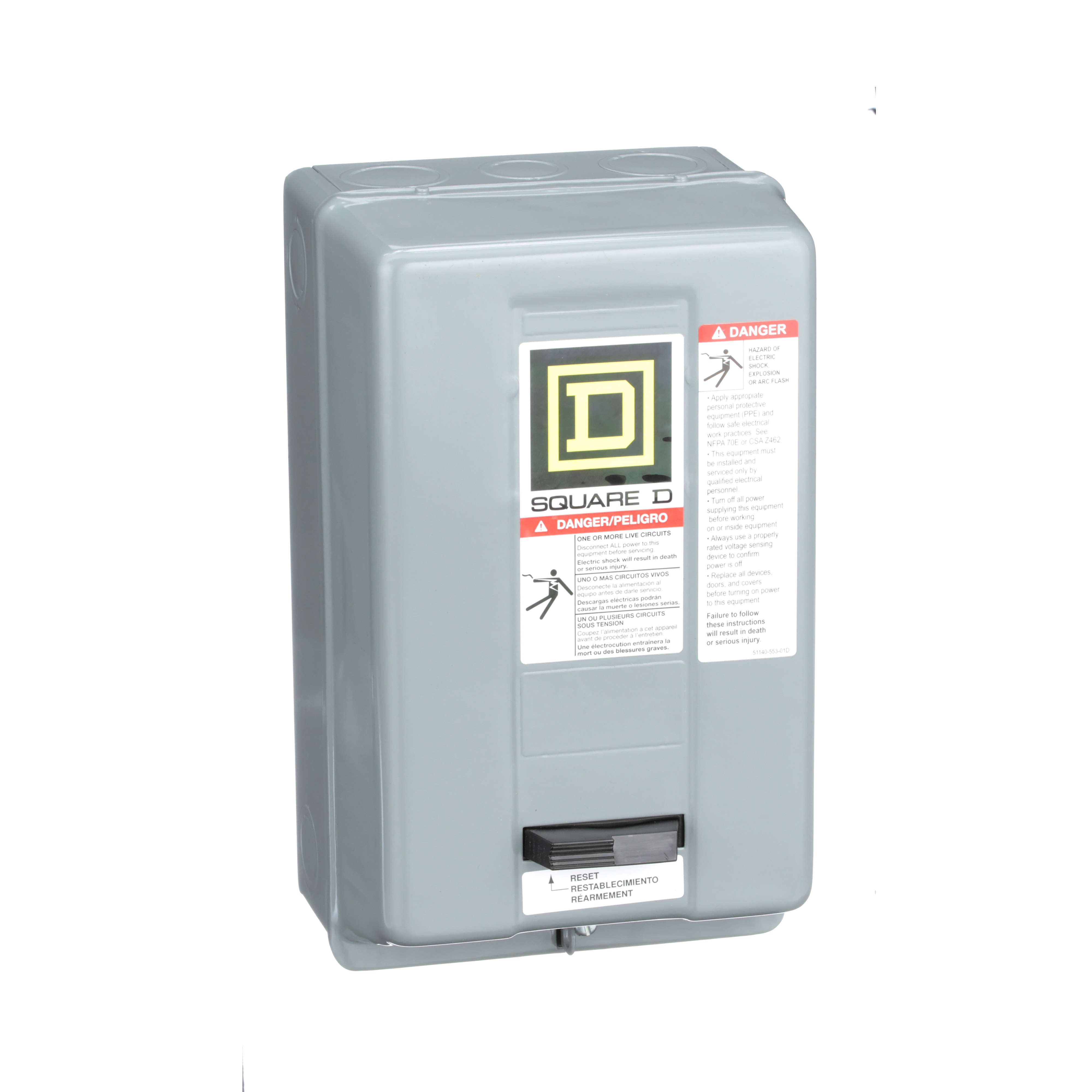

Square D™ 8536SCG3V03H30 Type S General Purpose Non-Reversing NEMA Magnetic Starter, 220/240 VAC Coil, 3-Poles
Starters
875481
MFG #: 8536SCG3V03H30
Square D™
683.00000
/ ea
Square D 8536SCG3V03H30 STARTER 600VAC 27AMP NEMA +OPTIONS,1,240VAC60Hz - 220VAC50Hz,27 A,3 phases,600 V AC,7.5HP200/230VAC - 10HP460/575VAC,NEMA 1 painted sheet steel,S,Screw Clamp,UL Listed - CSA Certified,Used for Full-Voltage Starting and Stopping of AC Squirrel Cage Motors,solid state Motor Logic class 10/20,starter
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8042484360Den&ext=webp(360 Degree View URL)
- Brochure URL - 11003_Q3DJ6XGCRSHN7LFO.pdf(Brochure URL)
- Compliance Cert URL - Square_D_8536SCG3V03H30_Compliance_Certificate.pdf(Compliance Cert URL)
- Install Instructions 1 URL - 11003_BS1QC6EK8G4PT2J5.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet 1 URL - Square_D_8536SCG3V03H30_Specification_Sheet.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - 11003_G4SLXBH6KJ1NTIPC.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11003_8G547S3DJIOHPNLZ.pdf(Tech Bulletin URL)
- Tech Bulletin URL - 11003_R8DPHVO6FAXJE9S2.pdf(Tech Bulletin URL)
- Video - https://www.youtube.com/embed/Gy1KrKzer3o(Video)
- Applications
- Features
| USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS |
| SCREW CLAMP TERMINALS |
| They provide phase loss, phase unbalance protection and a power LED indication |
| Full-voltage starters start and stop 3-phase AC motors |
| Manual push-to-test and visible trip indicator |
| Trip-free construction allows overload relay to trip even if reset lever is blocked or in the reset position |
| Overload relay has heaterless construction and adjustable full load amp setting |
| Normally open holding circuit contact allows 3-wire control |
| Angled contacts provide high contact pressure and positive seating |
| Spring-assisted gravity dropout on de-energizing quickly extinguishes any arcing |
| Surface mounting |
| 7.5 hp at 200/230 VAC, 10 hp at 460/575 VAC |
| Flush mounting general purpose enclosure |
| Type S starter |
| NEMA 1 painted sheet steel |
