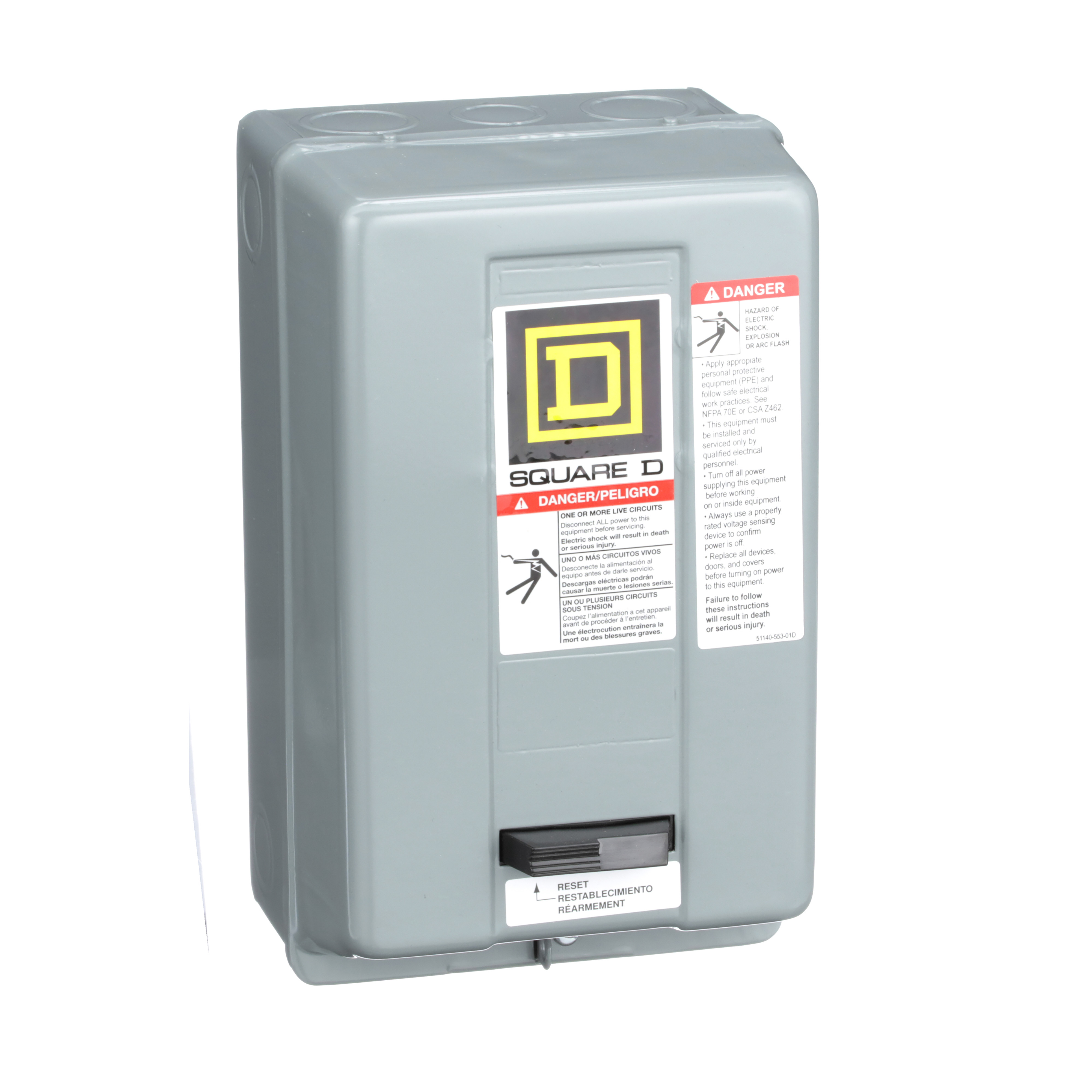

Square D™ 8536SCG3V01S STARTER 600VAC 27A
SKU179136
MFGR #8536SCG3V01S
Your Cost: $552.91/ea
List: Square D 8536SCG3V01S STARTER MOTOR CONTROL 1000VAC,1,24VAC60Hz,27 A,3-Phase,3P,600VAC,7.5HP200/230VAC - 10HP460/575VAC,NEMA 1,Non-Reversing Starter,S,Screw Clamp,Thermal - Melting Alloy,UL Listed - CSA Certified,Used for Full-Voltage Starting and Stopping of AC Squirrel Cage Motors
Square D 8536SCG3V01S STARTER MOTOR CONTROL 1000VAC,1,24VAC60Hz,27 A,3-Phase,3P,600VAC,7.5HP200/230VAC - 10HP460/575VAC,NEMA 1,Non-Reversing Starter,S,Screw Clamp,Thermal - Melting Alloy,UL Listed - CSA Certified,Used for Full-Voltage Starting and Stopping of AC Squirrel Cage Motors
Alternate Catalog Number 8536SCG3V01S Amperage Rating 27 A Application USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 8536SCG3V01S Coil Voltage 24 VAC at 60 Hz V Connection Screw Clamp Connection Type Screw Clamp Country of Origin US Currency USD Dimensions 5.98 in W x 5.55 in D x 10 in H Enclosure Type NEMA 1 EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 437.19 Gross Volume per Pack Metric 7164.23 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 7.5200 lb Gross Weight per Pack Metric 3.41 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536504000 Height 16.5100 in Height [Metric] 16.5100 cm Item Group 21192 Length 28.9560 in Length [Metric] 28.9560 cm Manufacturer Schneider Electric Material Sheet Steel Motor Power 7.5 hp at 200/230 VAC/10 hp at 460/575 VAC NEMA Frame Size 1 Number Of Phases 3 Number Of Poles 3 Operating Cycles 10 cpm Operating Temperature 0 to 40 deg C Ambient Overload Relay Thermal Melting Alloy Phase 3 pH Power Supply 24VAC@60HZ Reset Type (3) Thermal Melting Alloy Returnable Y Series 8536 Size 1 in Standard UL LISTED - CSA CERTIFIED Stock Status NONSTOCK Sub Brand S Type Type S UNSPSC 39121521 UPC 11 78590145847 UPC 12 785901458470 Voltage Rating 600 VAC Warranty Description Contractual Warranty:18 months Wattage 5.5 kW at 200/230 VAC/7.5 kW at 460/575 VAC Width 14.9860 in Width [Metric] 14.9860 cm USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS SCREW CLAMP TERMINALS Used for full voltage starting and stopping AC squirrel cage motors NEMA type 1 general purpose enclosure NEMA 1
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 8536SCG3V01S |
| Amperage Rating | 27 A |
| Application | USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 8536SCG3V01S |
| Coil Voltage | 24 VAC at 60 Hz V |
| Connection | Screw Clamp |
| Connection Type | Screw Clamp |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 5.98 in W x 5.55 in D x 10 in H |
| Enclosure Type | NEMA 1 |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 437.19 |
| Gross Volume per Pack Metric | 7164.23 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 7.5200 lb |
| Gross Weight per Pack Metric | 3.41 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536504000 |
| Height | 16.5100 in |
| Height [Metric] | 16.5100 cm |
| Item Group | 21192 |
| Length | 28.9560 in |
| Length [Metric] | 28.9560 cm |
| Manufacturer | Schneider Electric |
| Material | Sheet Steel |
| Motor Power | 7.5 hp at 200/230 VAC/10 hp at 460/575 VAC |
| NEMA Frame Size | 1 |
| Number Of Phases | 3 |
| Number Of Poles | 3 |
| Operating Cycles | 10 cpm |
| Operating Temperature | 0 to 40 deg C Ambient |
| Overload Relay | Thermal Melting Alloy |
| Phase | 3 pH |
| Power Supply | 24VAC@60HZ |
| Reset Type | (3) Thermal Melting Alloy |
| Returnable | Y |
| Series | 8536 |
| Size | 1 in |
| Standard | UL LISTED - CSA CERTIFIED |
| Stock Status | NONSTOCK |
| Sub Brand | S |
| Type | Type S |
| UNSPSC | 39121521 |
| UPC 11 | 78590145847 |
| UPC 12 | 785901458470 |
| Voltage Rating | 600 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 5.5 kW at 200/230 VAC/7.5 kW at 460/575 VAC |
| Width | 14.9860 in |
| Width [Metric] | 14.9860 cm |
| USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS |
| SCREW CLAMP TERMINALS |
| Used for full voltage starting and stopping AC squirrel cage motors |
| NEMA type 1 general purpose enclosure |
| NEMA 1 |
