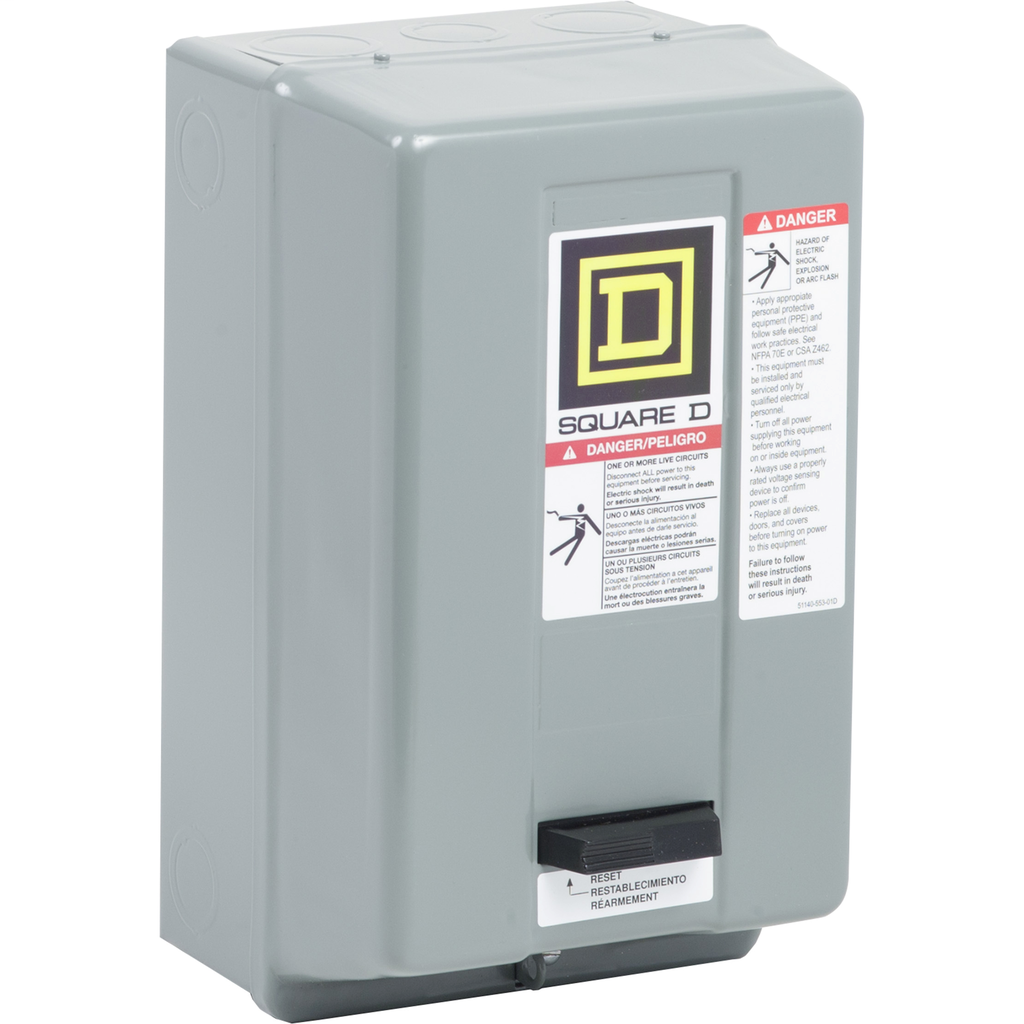

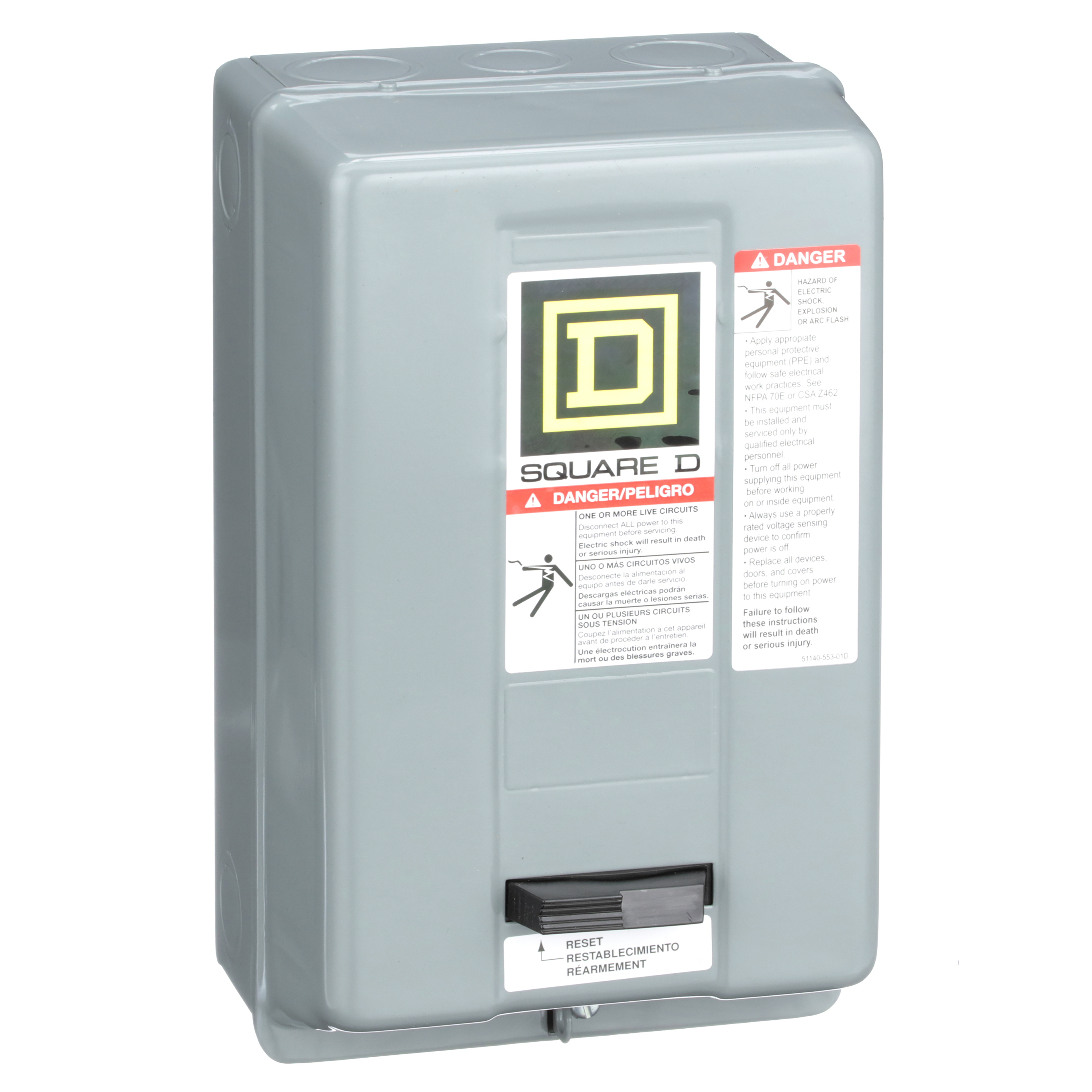

Square D™ 8536SCG1V02S Type S Non-Reversing Starter, 2-Poles, NEMA 1 Enclosure
Custom_Product_Images_Illustration
Square D™ 8536SCG1V02S Type S Non-Reversing Starter, 2-Poles, NEMA 1 Enclosure
SKU278964
MFGR #8536SCG1V02S
Your Cost: $505.11/ea
List: Square D 8536SCG1V02S STARTER MOTOR CONTROL <1000VAC,1,1 phase,120VAC60Hz - 110VAC50Hz,27 A,2HP115VAC - 3HP230VAC,600 V AC,NEMA 1 painted sheet steel,S,Screw Clamp,UL Listed - CSA Certified,Used for Full-Voltage Starting and Stopping of AC Squirrel Cage Motors,melting alloy 1,starter
Square D 8536SCG1V02S STARTER MOTOR CONTROL <1000VAC,1,1 phase,120VAC60Hz - 110VAC50Hz,27 A,2HP115VAC - 3HP230VAC,600 V AC,NEMA 1 painted sheet steel,S,Screw Clamp,UL Listed - CSA Certified,Used for Full-Voltage Starting and Stopping of AC Squirrel Cage Motors,melting alloy 1,starter
Action Non-Reversing Alternate Catalog Number 8536SCG1V02S Amperage Rating 27 A Application USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 8536SCG1V02S Coil Voltage 110 to 120 VAC Connection Screw clamp terminals Connection Type Screw Clamp Country of Origin MX Currency USD Dimensions 10 in H x 5.55 in W x 5.98 in D Enclosure Type NEMA 1 EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 454.74 Gross Volume per Pack Metric 7451.82 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 7.2100 lb Gross Weight per Pack Metric 3.27 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536504000 Height 16.5100 in Height [Metric] 16.5100 cm Item Group 21192 Length 26.9240 in Length [Metric] 26.9240 cm Manufacturer Schneider Electric Material Sheet Steel Motor Power 2 hp, 3 hp NEMA Frame Size 1 Number Of Phases 1 Number Of Poles 2 Operating Temperature 0 to 40 Overload Relay Thermal Melting Alloy 1 Phase 1 pH Power Supply 120VAC@60HZ - 110VAC@50HZ Reset Type MELTING ALLOY 1 THERMAL UNITS Returnable Y Series 8536 Size 141 MM,152 MM,254 MM in Standard UL LISTED-NEMA-CSA Stock Status NONSTOCK Sub Brand S Type Type S UNSPSC 39121521 UPC 11 78590160859 UPC 12 785901608592 Voltage Rating 600 VAC Warranty Description Contractual Warranty:18 months Width 16.7640 in Width [Metric] 16.7640 cm USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS SCREW CLAMP TERMINALS 2 hp at 115 VAC, 3 hp at 230 VAC power rating NEMA 1 painted sheet steel Melting alloy 1 overload relay
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Action | Non-Reversing |
| Alternate Catalog Number | 8536SCG1V02S |
| Amperage Rating | 27 A |
| Application | USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 8536SCG1V02S |
| Coil Voltage | 110 to 120 VAC |
| Connection | Screw clamp terminals |
| Connection Type | Screw Clamp |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 10 in H x 5.55 in W x 5.98 in D |
| Enclosure Type | NEMA 1 |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 454.74 |
| Gross Volume per Pack Metric | 7451.82 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 7.2100 lb |
| Gross Weight per Pack Metric | 3.27 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536504000 |
| Height | 16.5100 in |
| Height [Metric] | 16.5100 cm |
| Item Group | 21192 |
| Length | 26.9240 in |
| Length [Metric] | 26.9240 cm |
| Manufacturer | Schneider Electric |
| Material | Sheet Steel |
| Motor Power | 2 hp, 3 hp |
| NEMA Frame Size | 1 |
| Number Of Phases | 1 |
| Number Of Poles | 2 |
| Operating Temperature | 0 to 40 |
| Overload Relay | Thermal Melting Alloy 1 |
| Phase | 1 pH |
| Power Supply | 120VAC@60HZ - 110VAC@50HZ |
| Reset Type | MELTING ALLOY 1 THERMAL UNITS |
| Returnable | Y |
| Series | 8536 |
| Size | 141 MM,152 MM,254 MM in |
| Standard | UL LISTED-NEMA-CSA |
| Stock Status | NONSTOCK |
| Sub Brand | S |
| Type | Type S |
| UNSPSC | 39121521 |
| UPC 11 | 78590160859 |
| UPC 12 | 785901608592 |
| Voltage Rating | 600 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 16.7640 in |
| Width [Metric] | 16.7640 cm |
| USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS |
| SCREW CLAMP TERMINALS |
| 2 hp at 115 VAC, 3 hp at 230 VAC power rating |
| NEMA 1 painted sheet steel |
| Melting alloy 1 overload relay |
