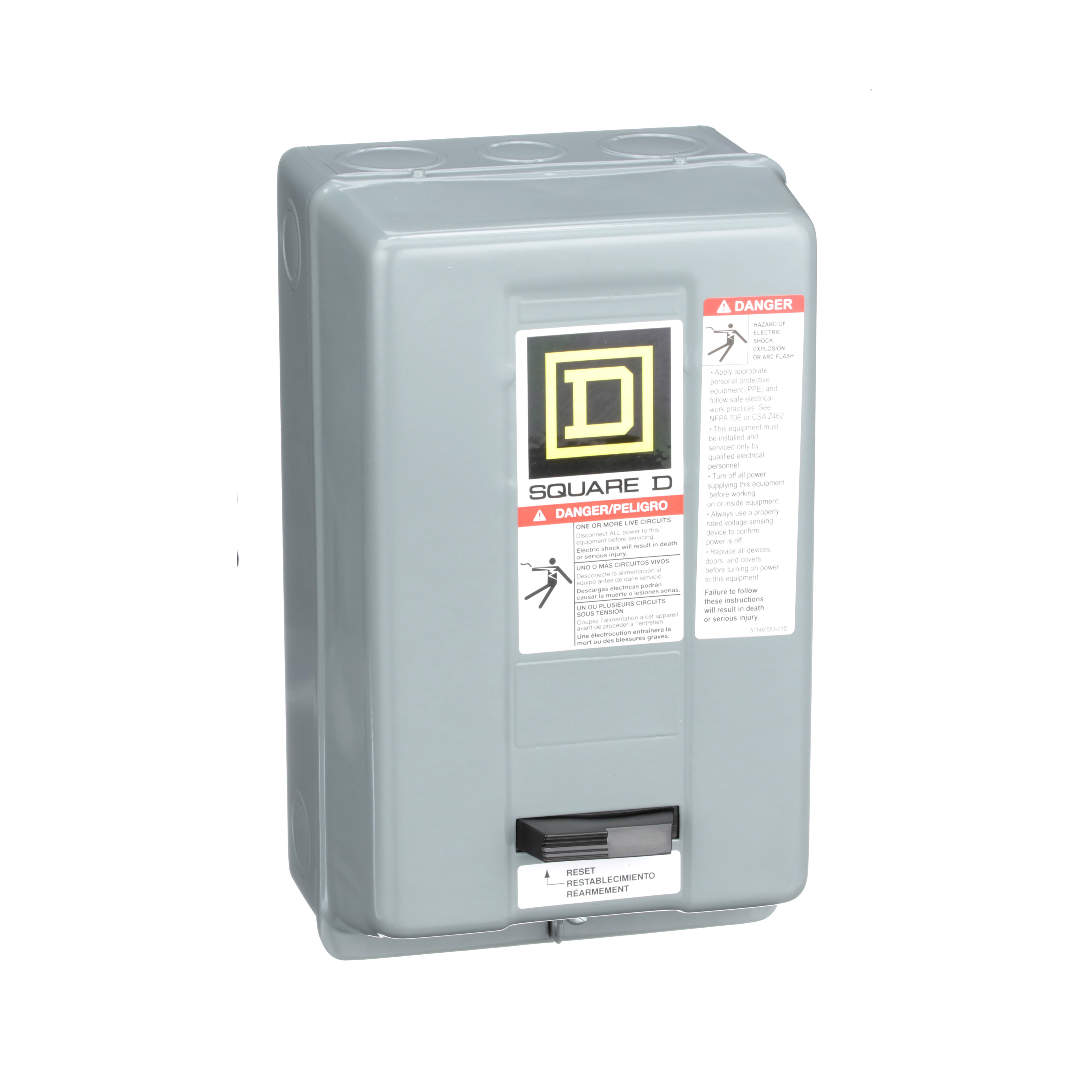

Square D™ 8536SBG2V02H30S Type S Non-Reversing Starter, 3-Poles, NEMA 1 Enclosure
Starters
866519
MFG #: 8536SBG2V02H30S
Square D™
650.15000
/ ea
Square D 8536SBG2V02H30S STARTER MOTOR CONTROL <1000VAC,0,120VAC60Hz - 110VAC50Hz,18 A,3 phases,3HP200/230VAC - 5HP460/575VAC,600 V AC,NEMA 1 painted sheet steel,S,Screw Clamp,UL Listed - CSA Certified,Used for Full-Voltage Starting and Stopping of AC Squirrel Cage Motors,solid state Motor Logic class 10/20,starter
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8042452360Den&ext=webp(360 Degree View URL)
- Catalog URL - IDW_DOCUMENT_9aa2c308c6c64eeadd67861ceed28d46585a4dcd0225d98e5f489de68498bb16.pdf(Catalog URL)
- 3D Rendering URL - SEproductListV2.html?p=8536SBG2V02H30S(3D Rendering URL)
- Install Instructions 1 URL - 11003_KQF2VRI48H6C9NZL.pdf(Install Instructions 1 URL)
- Brochure URL - 11003_Q3DJ6XGCRSHN7LFO.pdf(Brochure URL)
- Tech Bulletin URL - 11003_R8DPHVO6FAXJE9S2.pdf(Tech Bulletin URL)
- Install Instructions URL - Square_D_8536SBG2V02H30S_Installation.pdf(Install Instructions URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_NS9FBR80T164XG2V.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11003_8G547S3DJIOHPNLZ.pdf(Tech Bulletin URL)
- Video - https://www.youtube.com/embed/HH4qt8sWnGI(Video)
- Applications
- Features
| USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS |
| SCREW CLAMP TERMINALS |
| Non-reversing Magnetic Starters |
| Used to switch AC inductive motors |
| Available from NEMA Size 00 to NEMA Size 7 |
| Supplied with VAC coil 50/60 Hz. |
| Rated for 600 volts maximum, up to 600 HP and with a maximum of 810A |
| Bellcrank design is used to get improved electrical and mechanical life |
| Replaceable coil and contacts |
| UL and CSA approvals |
