Square D™

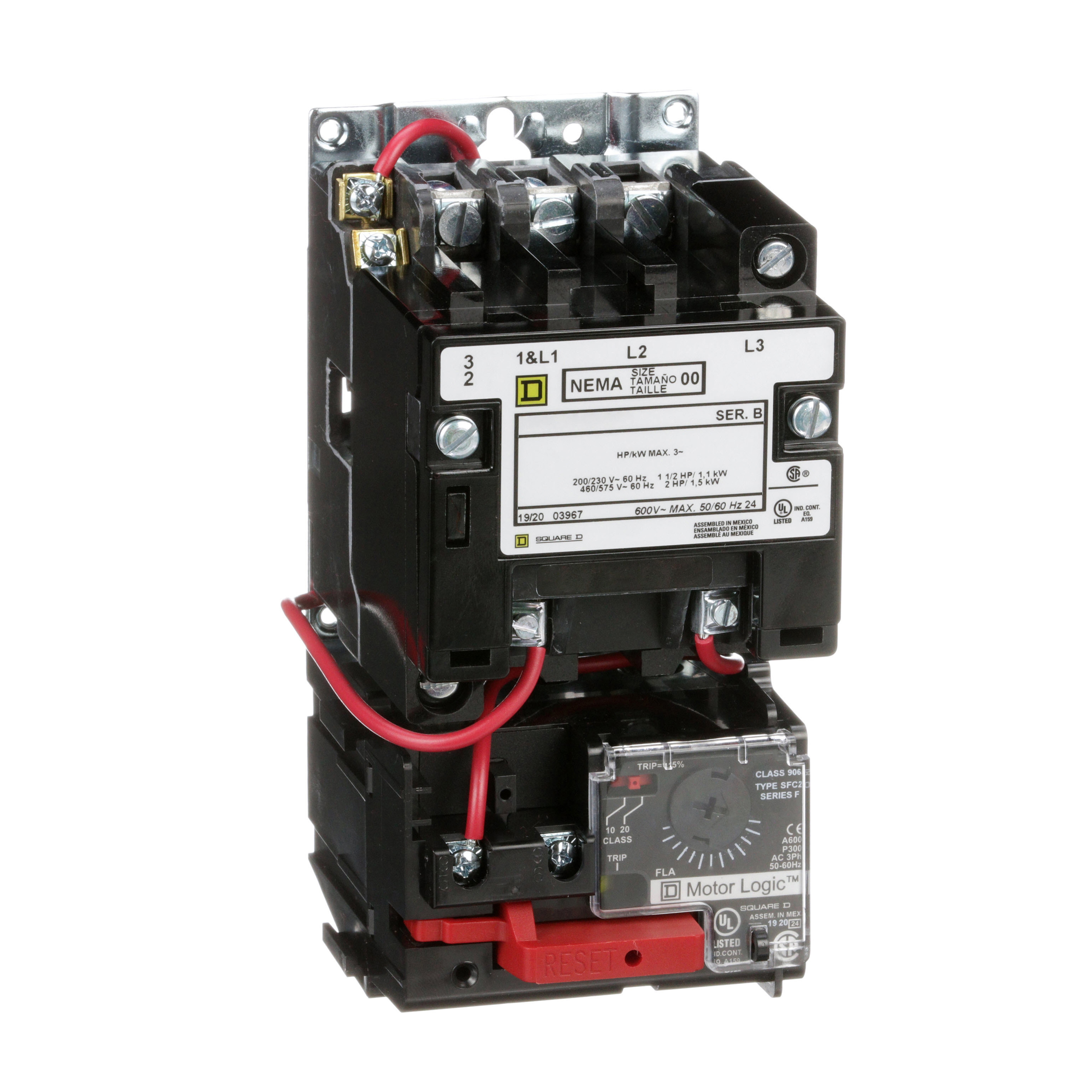

Square D™ 8536SAO12V02H308S STARTER 600VA
Custom_Product_Images_Illustration
Square D™
Square D™ 8536SAO12V02H308S STARTER 600VA
SKU631561
MFGR #8536SAO12V02H308S
Your Cost: $448.89/ea
List: Square D 8536SAO12V02H308S STARTER 600VAC 9AMP NEMA +OPTIONS,00,1.5HP200/230VAC - 2HP460/575VAC,120VAC60Hz - 110VAC50Hz,3 phases,600 V AC,9 A,S,Screw Clamp,UL Listed - CSA Certified,Used for Full-Voltage Starting and Stopping of AC Squirrel Cage Motors,not rated (open device),solid state Motor Logic class 10/20,starter
Square D 8536SAO12V02H308S STARTER 600VAC 9AMP NEMA +OPTIONS,00,1.5HP200/230VAC - 2HP460/575VAC,120VAC60Hz - 110VAC50Hz,3 phases,600 V AC,9 A,S,Screw Clamp,UL Listed - CSA Certified,Used for Full-Voltage Starting and Stopping of AC Squirrel Cage Motors,not rated (open device),solid state Motor Logic class 10/20,starter
Alternate Catalog Number 8536SAO12V02H308S Amperage Rating 9 A Application USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 8536SAO12V02H308S Coil Voltage 110 VAC at 50 Hz/120 VAC at 60 Hz Connection Screw clamp terminals Connection Type Screw Clamp Country of Origin US Currency USD Dimensions 3.23 in W x 4.21 in D x 6.77 in H Enclosure Type Open EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 208.80 Gross Volume per Pack Metric 3421.61 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 4.1000 lb Gross Weight per Pack Metric 1.86 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536504000 Height 11.4300 in Height [Metric] 11.4300 cm Item Group 21191 Length 20.3200 in Length [Metric] 20.3200 cm Manufacturer Schneider Electric Motor Power 1.5 hp at 200/230 VAC/2 hp at 460/575 VAC Number Of Phases 3 Number Of Poles 3 Operating Temperature 0 to 40 deg C Ambient Overload Relay Motor Logic™ Solid State Phase 3 pH Power Supply 120VAC@60HZ - 110VAC@50HZ Reset Type Motor Logic™ Solid State Returnable N Series 8536 Size 107 MM,172 MM,82 MM Standard CSA-UL LISTED-NEMA Stock Status NONSTOCK Sub Brand S Substitute Product Catalog Number 9999ST1 Type Type S UNSPSC 39121521 UPC 11 78590109410 UPC 12 785901094104 Voltage Rating 600 VAC Warranty Description Contractual Warranty:18 months Wattage 1.1 kW at 200/230 VAC/1.5 kW at 460/575 VAC Width 14.7320 in Width [Metric] 14.7320 cm USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS SCREW CLAMP TERMINALS Used for full voltage starting and stopping AC squirrel cage motors Ground fault detection and communication capabilities for future enhancement Ambient insensitive and features phase loss, phase unbalance and over-current protection and LED power indicator for quick detection H30 class 10/20 Motor Logic™ solid state NEMA 00
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 8536SAO12V02H308S |
| Amperage Rating | 9 A |
| Application | USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 8536SAO12V02H308S |
| Coil Voltage | 110 VAC at 50 Hz/120 VAC at 60 Hz |
| Connection | Screw clamp terminals |
| Connection Type | Screw Clamp |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 3.23 in W x 4.21 in D x 6.77 in H |
| Enclosure Type | Open |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 208.80 |
| Gross Volume per Pack Metric | 3421.61 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 4.1000 lb |
| Gross Weight per Pack Metric | 1.86 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536504000 |
| Height | 11.4300 in |
| Height [Metric] | 11.4300 cm |
| Item Group | 21191 |
| Length | 20.3200 in |
| Length [Metric] | 20.3200 cm |
| Manufacturer | Schneider Electric |
| Motor Power | 1.5 hp at 200/230 VAC/2 hp at 460/575 VAC |
| Number Of Phases | 3 |
| Number Of Poles | 3 |
| Operating Temperature | 0 to 40 deg C Ambient |
| Overload Relay | Motor Logic™ Solid State |
| Phase | 3 pH |
| Power Supply | 120VAC@60HZ - 110VAC@50HZ |
| Reset Type | Motor Logic™ Solid State |
| Returnable | N |
| Series | 8536 |
| Size | 107 MM,172 MM,82 MM |
| Standard | CSA-UL LISTED-NEMA |
| Stock Status | NONSTOCK |
| Sub Brand | S |
| Substitute Product Catalog Number | 9999ST1 |
| Type | Type S |
| UNSPSC | 39121521 |
| UPC 11 | 78590109410 |
| UPC 12 | 785901094104 |
| Voltage Rating | 600 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 1.1 kW at 200/230 VAC/1.5 kW at 460/575 VAC |
| Width | 14.7320 in |
| Width [Metric] | 14.7320 cm |
| USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS |
| SCREW CLAMP TERMINALS |
| Used for full voltage starting and stopping AC squirrel cage motors |
| Ground fault detection and communication capabilities for future enhancement |
| Ambient insensitive and features phase loss, phase unbalance and over-current protection and LED power indicator for quick detection |
| H30 class 10/20 Motor Logic™ solid state |
| NEMA 00 |
