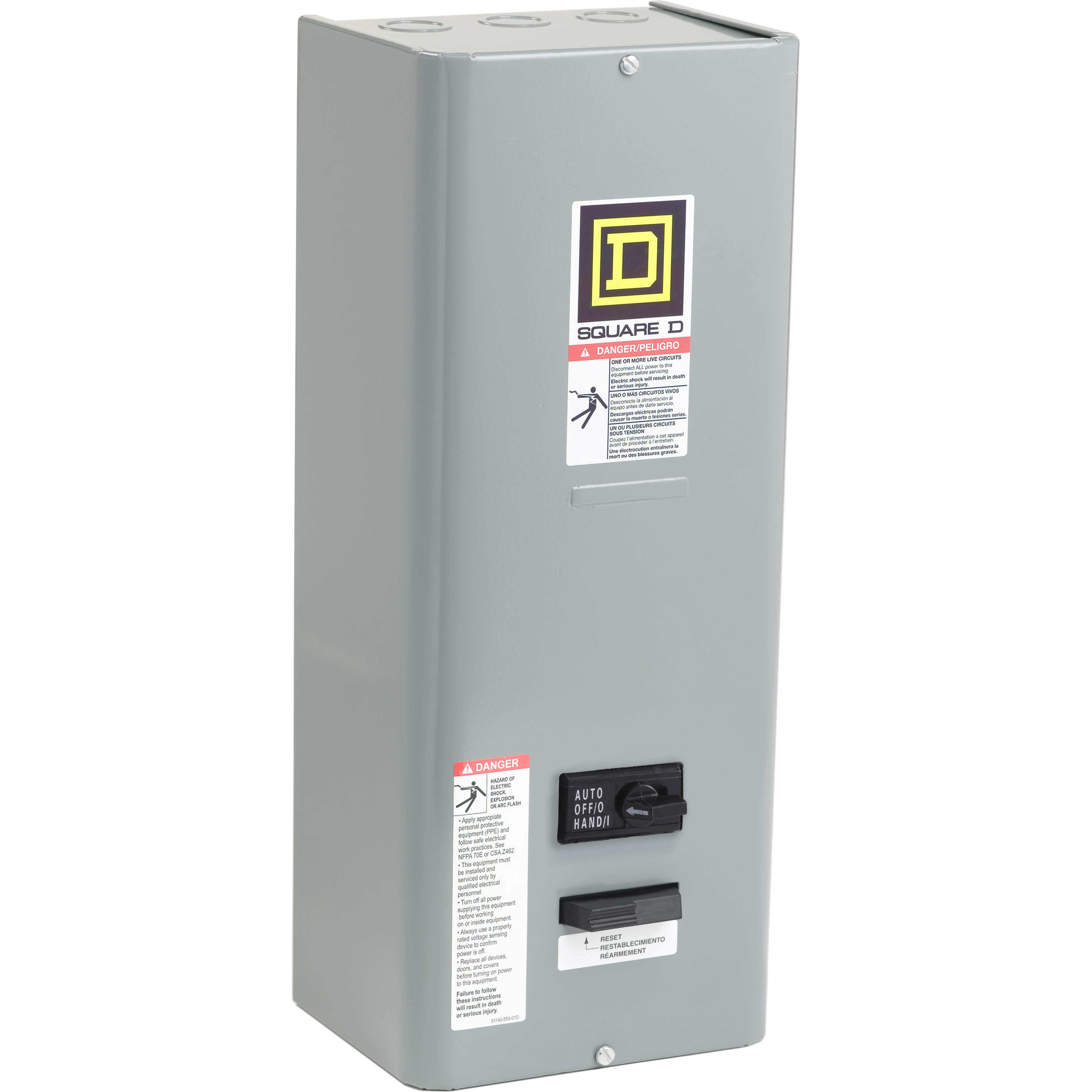

Square D™ 8536SAG12V84CFF4T STARTER 600VA
SKU906688
MFGR #8536SAG12V84CFF4T
Your Cost: $1,731.15/ea
Square D 8536SAG12V84CFF4T STARTER 600VAC 9AMP NEMA +OPTIONS,0,1.5HP200/230VAC - 2HP460/575VAC,120VAC - Control 208VAC - Line,3-Phase,3P,600VAC,9 Amp,NEMA 1,Non-Reversing Starter,S,Screw Clamp,UL Listed - CSA Certified,Used for Full-Voltage Starting and Stopping of AC Squirrel Cage Motors,melting alloy 3
Square D 8536SAG12V84CFF4T STARTER 600VAC 9AMP NEMA +OPTIONS,0,1.5HP200/230VAC - 2HP460/575VAC,120VAC - Control 208VAC - Line,3-Phase,3P,600VAC,9 Amp,NEMA 1,Non-Reversing Starter,S,Screw Clamp,UL Listed - CSA Certified,Used for Full-Voltage Starting and Stopping of AC Squirrel Cage Motors,melting alloy 3
Alternate Catalog Number 8536SAG12V84CFF4T Amperage Rating 9 A Application USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS ARRA Compliant N Buy American Compliant N Catalog Number 8536SAG12V84CFF4T Connection Screw Clamp Connection Type Screw Clamp Control Type Selector Switch HAND-OFF-AUTO Country of Origin MX Dimensions 6.34 in W x 5.2 in D x 15.87 in H EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Weight Per Pack 20.8000 lb Gross Weight per Pack Metric 9.44 Gross Weight UOM Metric kg Height 15.72 in Height [Metric] 40.3000 cm Item Group 21191 Length 5.15 in Length [Metric] 13.2000 cm Material Sheet Steel Motor Power 1.5 hp at 200/230 VAC/2 hp at 460/575 VAC Number Of Phases 3 Number Of Poles 3 Operating Cycles 6 cpm Operating Temperature 0 to 40 deg C Ambient Phase 3 pH Power Supply 120VAC - CONTROL 208VAC - LINE Reset Type (3) Thermal Melting Alloy Returnable N Series 8536 Size 0 in Standard UL LISTED - CSA CERTIFIED Sub Brand S UNSPSC 39121521 UPC 11 78590176807 UPC 12 785901768074 Voltage Rating 600 VAC Warranty Description Contractual Warranty:18 months Wattage 1.1 kW at 200/230 VAC/1.5 kW at 460/575 VAC Width 6.28 IN Width [Metric] 16.1000 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Action Non-Reversing Coil Voltage 208/120 VAC at 60 Hz Enclosure Type NEMA 1 Type Type S USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS 2 FUSES (PRIMARY), 1 FUSE (SECONDARY) Used for full voltage starting and stopping AC squirrel cage motors NEMA type 1 general purpose enclosure FF4t fused transformer control circuit (primary and secondary fuses) NEMA 00
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 8536SAG12V84CFF4T |
| Amperage Rating | 9 A |
| Application | USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | 8536SAG12V84CFF4T |
| Connection | Screw Clamp |
| Connection Type | Screw Clamp |
| Control Type | Selector Switch HAND-OFF-AUTO |
| Country of Origin | MX |
| Dimensions | 6.34 in W x 5.2 in D x 15.87 in H |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 20.8000 lb |
| Gross Weight per Pack Metric | 9.44 |
| Gross Weight UOM Metric | kg |
| Height | 15.72 in |
| Height [Metric] | 40.3000 cm |
| Item Group | 21191 |
| Length | 5.15 in |
| Length [Metric] | 13.2000 cm |
| Material | Sheet Steel |
| Motor Power | 1.5 hp at 200/230 VAC/2 hp at 460/575 VAC |
| Number Of Phases | 3 |
| Number Of Poles | 3 |
| Operating Cycles | 6 cpm |
| Operating Temperature | 0 to 40 deg C Ambient |
| Phase | 3 pH |
| Power Supply | 120VAC - CONTROL 208VAC - LINE |
| Reset Type | (3) Thermal Melting Alloy |
| Returnable | N |
| Series | 8536 |
| Size | 0 in |
| Standard | UL LISTED - CSA CERTIFIED |
| Sub Brand | S |
| UNSPSC | 39121521 |
| UPC 11 | 78590176807 |
| UPC 12 | 785901768074 |
| Voltage Rating | 600 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 1.1 kW at 200/230 VAC/1.5 kW at 460/575 VAC |
| Width | 6.28 IN |
| Width [Metric] | 16.1000 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Action | Non-Reversing |
| Coil Voltage | 208/120 VAC at 60 Hz |
| Enclosure Type | NEMA 1 |
| Type | Type S |
| USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS |
| 2 FUSES (PRIMARY), 1 FUSE (SECONDARY) |
| Used for full voltage starting and stopping AC squirrel cage motors |
| NEMA type 1 general purpose enclosure |
| FF4t fused transformer control circuit (primary and secondary fuses) |
| NEMA 00 |
