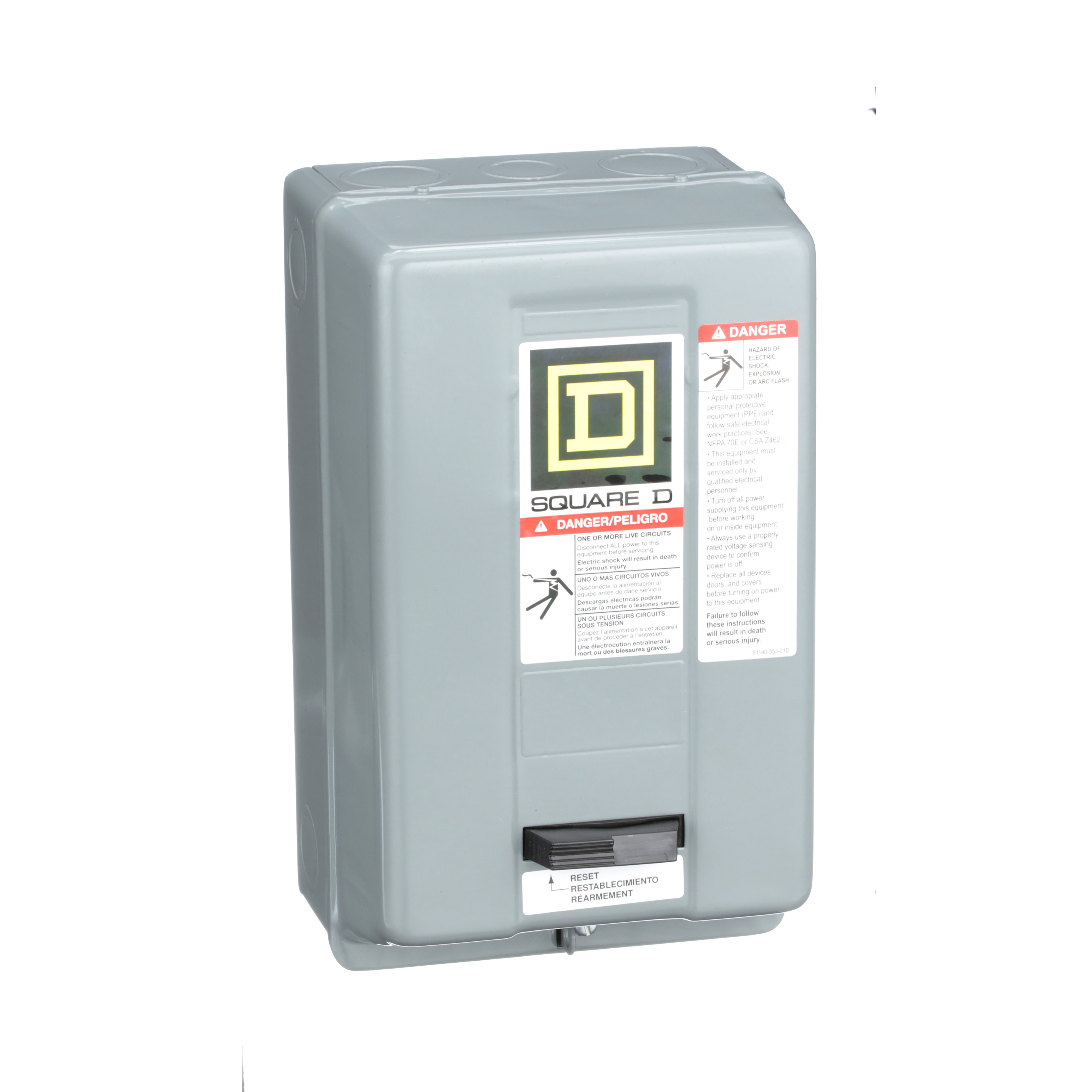

Square D™ 8536SAG12V01S Type S General Purpose Non-Reversing NEMA Magnetic Starter, 24 VAC Coil, 3-Poles
Starters
560579
MFG #: 8536SAG12V01S
Square D™
419.00000
/ ea
Square D 8536SAG12V01S STARTER MOTOR CONTROL <1000VAC,0,1.5HP200/230VAC - 2HP460/575VAC,24VAC60Hz,3-Phase,3P,600VAC,9 Amp,NEMA 1,Non-Reversing Starter,S,Screw Clamp,Thermal - Melting Alloy,UL Listed - CSA Certified,Used for Full-Voltage Starting and Stopping of AC Squirrel Cage Motors
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8151690360Den&ext=webp(360 Degree View URL)
- Brochure URL - 11003_Q3DJ6XGCRSHN7LFO.pdf(Brochure URL)
- Compliance Cert URL - Square_D_8536SAG12V01S_Compliance_Certificate.pdf(Compliance Cert URL)
- Install Instructions 1 URL - 11003_2LTK4W50IZJYDPUN.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet 1 URL - Square_D_8536SAG12V01S_Specification_Sheet.pdf(Spec Sheet 1 URL)
- Spec Sheet URL(Spec Sheet URL)
- Spec Sheet URL - 11003_XD9QZNPBFIVJ8K7R.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11003_8G547S3DJIOHPNLZ.pdf(Tech Bulletin URL)
- Tech Bulletin URL - 11003_R8DPHVO6FAXJE9S2.pdf(Tech Bulletin URL)
- Tech Drawing URL - 11003_3Y04AQHP8WTO5KFB.pdf(Tech Drawing URL)
- Tech Drawing URL - 11003_NC0VXIWJK8P5EGQA.pdf(Tech Drawing URL)
- Video - https://www.youtube.com/embed/MsloUt8sPL0(Video)
- Applications
- Features
| USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS |
| SCREW CLAMP TERMINALS |
| Motor overload protection is provided via melting alloy type thermal overload relays |
| Surface mounting |
| 1.5 hp at 200/230 VAC, 2 hp at 460/575 VAC |
| Flush mounting general purpose enclosure |
| Separate control circuit |
| Type S starter |
| NEMA 1 painted sheet steel |
