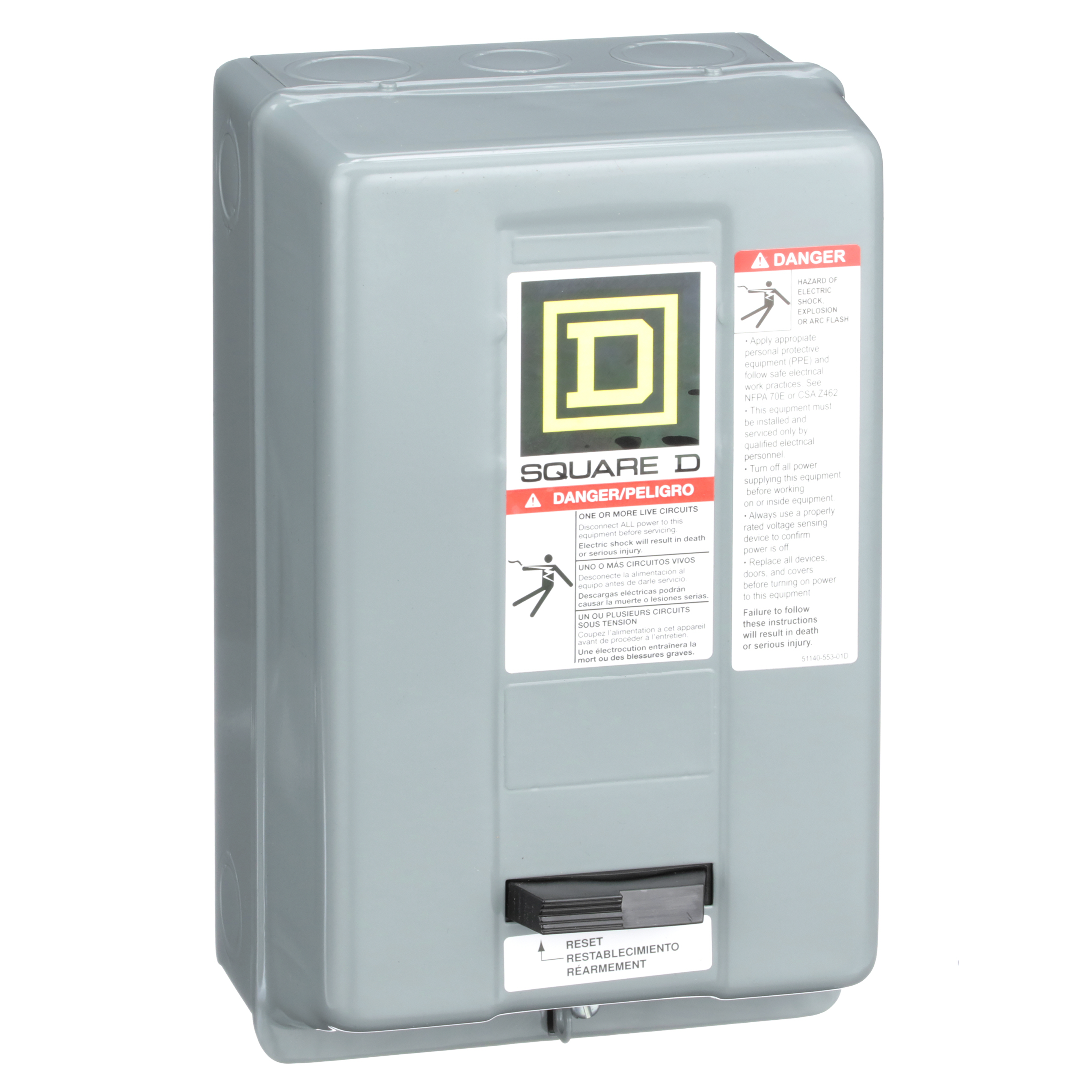

Square D™ 8536SAG11V02S Type S General Purpose Non-Reversing NEMA Magnetic Starter, 110/120 VAC Coil, 2-Poles
Custom_Product_Images_Illustration
Square D™ 8536SAG11V02S Type S General Purpose Non-Reversing NEMA Magnetic Starter, 110/120 VAC Coil, 2-Poles
SKU268717
MFGR #8536SAG11V02S
Your Cost: $392.66/ea
List: Square D 8536SAG11V02S STARTER MOTOR CONTROL <1000VAC,0,0.34HP115VAC - 1HP230VAC,1-Phase,120VAC60Hz - 110VAC50Hz,2P,600VAC,9 Amp,NEMA 1,Non-Reversing Starter,S,Screw Clamp,Thermal - Melting Alloy,UL Listed - CSA Certified,Used for Full-Voltage Starting and Stopping of AC Squirrel Cage Motors
Square D 8536SAG11V02S STARTER MOTOR CONTROL <1000VAC,0,0.34HP115VAC - 1HP230VAC,1-Phase,120VAC60Hz - 110VAC50Hz,2P,600VAC,9 Amp,NEMA 1,Non-Reversing Starter,S,Screw Clamp,Thermal - Melting Alloy,UL Listed - CSA Certified,Used for Full-Voltage Starting and Stopping of AC Squirrel Cage Motors
Alternate Catalog Number 8536SAG11V02S Amperage Rating 9 A Application USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 8536SAG11V02S Coil Voltage 110 to 120 VAC Connection Screw Clamp Connection Type Screw Clamp Country of Origin US Currency USD Dimensions 10 in H x 5.98 in W x 5.55 in D Enclosure Type NEMA 0/1 EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 443.62 Gross Volume per Pack Metric 7269.68 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 7.1200 lb Gross Weight per Pack Metric 3.23 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536504000 Height 16.5100 in Height [Metric] 16.5100 cm Item Group 21191 Length 26.6700 in Length [Metric] 26.6700 cm Manufacturer Schneider Electric Material Sheet Steel Motor Power 1 hp NEMA Frame Size 00 Number Of Phases 1 Number Of Poles 2 Overload Relay Thermal Melting Alloy Power Supply 120VAC@60HZ - 110VAC@50HZ Reset Type THERMAL - MELTING ALLOY Returnable Y Size 0 in Standard UL LISTED - CSA CERTIFIED Standards UL Listed, CSA Certified, RoHS Compliant Stock Status NONSTOCK Sub Brand S Type Type S General Purpose Non-Reversing UNSPSC 39121521 UPC 11 78590101871 UPC 12 785901018711 Voltage Rating 600 VAC Warranty Description Contractual Warranty:18 months Width 16.5100 in Width [Metric] 16.5100 cm USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS SCREW CLAMP TERMINALS
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 8536SAG11V02S |
| Amperage Rating | 9 A |
| Application | USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 8536SAG11V02S |
| Coil Voltage | 110 to 120 VAC |
| Connection | Screw Clamp |
| Connection Type | Screw Clamp |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 10 in H x 5.98 in W x 5.55 in D |
| Enclosure Type | NEMA 0/1 |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 443.62 |
| Gross Volume per Pack Metric | 7269.68 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 7.1200 lb |
| Gross Weight per Pack Metric | 3.23 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536504000 |
| Height | 16.5100 in |
| Height [Metric] | 16.5100 cm |
| Item Group | 21191 |
| Length | 26.6700 in |
| Length [Metric] | 26.6700 cm |
| Manufacturer | Schneider Electric |
| Material | Sheet Steel |
| Motor Power | 1 hp |
| NEMA Frame Size | 00 |
| Number Of Phases | 1 |
| Number Of Poles | 2 |
| Overload Relay | Thermal Melting Alloy |
| Power Supply | 120VAC@60HZ - 110VAC@50HZ |
| Reset Type | THERMAL - MELTING ALLOY |
| Returnable | Y |
| Size | 0 in |
| Standard | UL LISTED - CSA CERTIFIED |
| Standards | UL Listed, CSA Certified, RoHS Compliant |
| Stock Status | NONSTOCK |
| Sub Brand | S |
| Type | Type S General Purpose Non-Reversing |
| UNSPSC | 39121521 |
| UPC 11 | 78590101871 |
| UPC 12 | 785901018711 |
| Voltage Rating | 600 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 16.5100 in |
| Width [Metric] | 16.5100 cm |
| USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS |
| SCREW CLAMP TERMINALS |
