Square D™ 8502SCG2V02S CONTACTOR 600VAC 2
NEMA & IEC Contactors
62851
MFG #: 8502SCG2V02S
Square D™
518.00000
/ ea

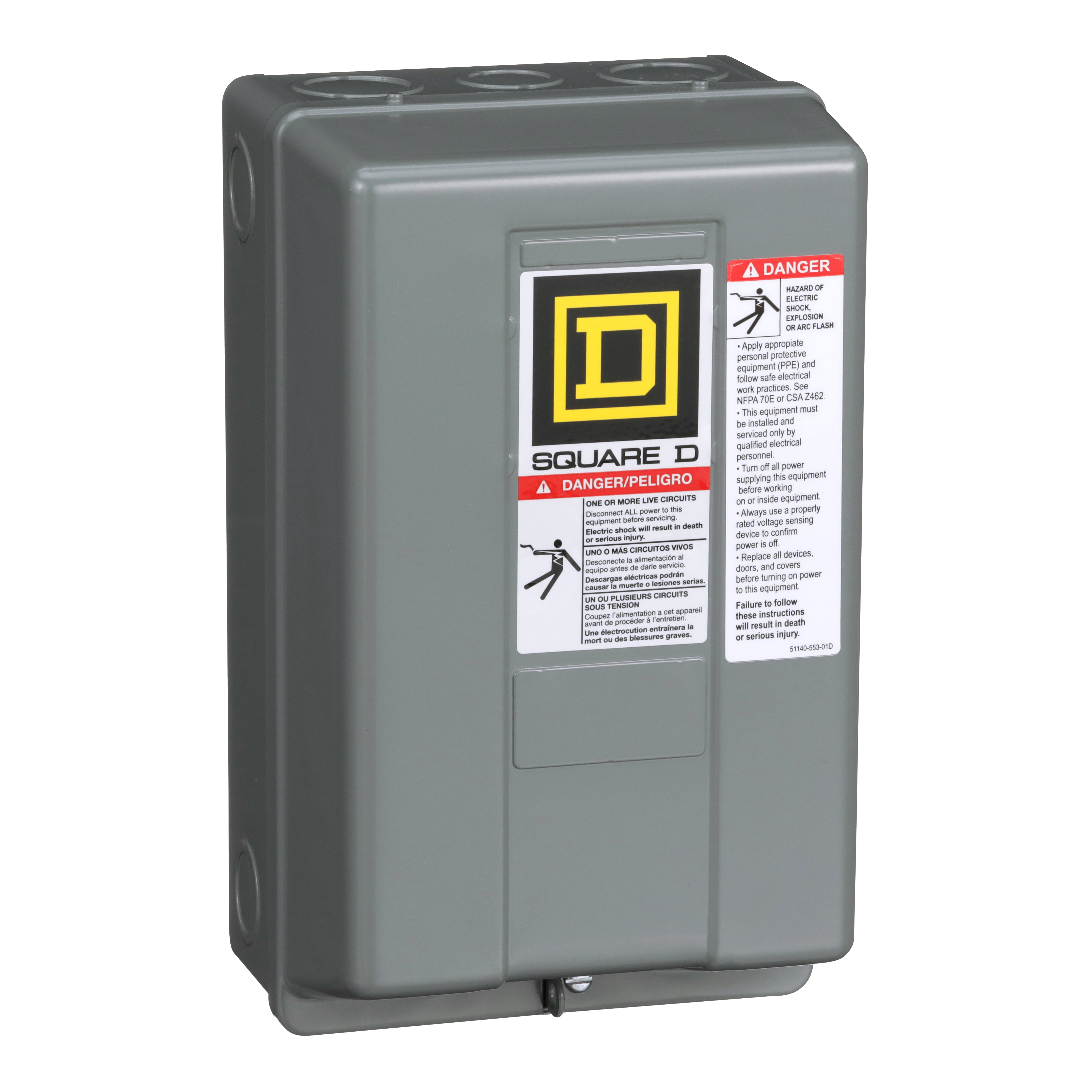

Square D 8502SCG2V02S CONTACTOR 600VAC 27AMP NEMA +OPTIONS,1,120VAC60Hz - 110VAC50Hz,3-Phase,3-Pole,8502S,Non-Reversing Contactor,Screw Clamp,UL Listed - CSA Certified,Used to switch heating loads, capacitors, transformer and electric motors where overload protection is provided separately,no indicator
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8065284360Den&ext=webp(360 Degree View URL)
- Brochure URL - 1b27ab4ed991044d15147558595d991bbb4abc6a.pdf(Brochure URL)
- Catalog URL - Square_D_8502SDW12V06_Catalog.pdf(Catalog URL)
- Install Instructions 1 URL - 11003_CSZWV63BJ0UK47ED.pdf(Install Instructions 1 URL)
- ROHS Compliance URL - Square_D_8502SCG2V02S_RoHS.pdf(ROHS Compliance URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_K4DACE5LSTBGJ8NX.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11003_8G547S3DJIOHPNLZ.pdf(Tech Bulletin URL)
- Tech Bulletin URL - 11003_R8DPHVO6FAXJE9S2.pdf(Tech Bulletin URL)
- Applications
- Features
| Non-reversing;Circuit-breaker 70 A maximum, SCCR: 100 kA at 480 V AC;fuse J 60 A maximum, SCCR: 100 kA at 600 V AC;fuse T 60 A maximum, SCCR: 100 kA at 600 V AC;fuse RK1 60 A maximum, SCCR: 100 kA at 600 V AC;fuse RK5 60 A maximum, SCCR: 100 kA at 600 V AC |
| 7.5 HP 200 V AC-7.5 HP 230 V AC-10 HP 460 V AC-10 HP 575 V AC,SEPARATE CONTROL CIRCUIT |
| A normally open holding circuit contact for three wire control is provided as standard |
| For flexibility field-installable or factory modified accessories include auxiliary contacts, power poles and cover mounted control stations |
| Bell crank design promotes superior electrical and mechanical life |
| NEMA sizes 00 to 5 are supplied with coils that are designed to operate satisfactorily on line voltages of 85% to 110% of rated voltage |
| NEMA sizes 5, 6 and 7 contactors are supplied with a DC coil operated by a solid state rectifier circuit that is powered by an AC source |
| Sizes 00 to 2 contactors use a class 9999 SX11 auxiliary contact as the holding circuit contact |
| Sizes 3 to 7 contactors use a class 9999 SX6 auxiliary contact as the holding circuit contact |
| NEMA type 1 general purpose enclosure |
| Used to switch heating loads capacitors, transformers and electric motors where overload protections is provided separately |
| 600 VAC system voltage |
| Without indicator |
