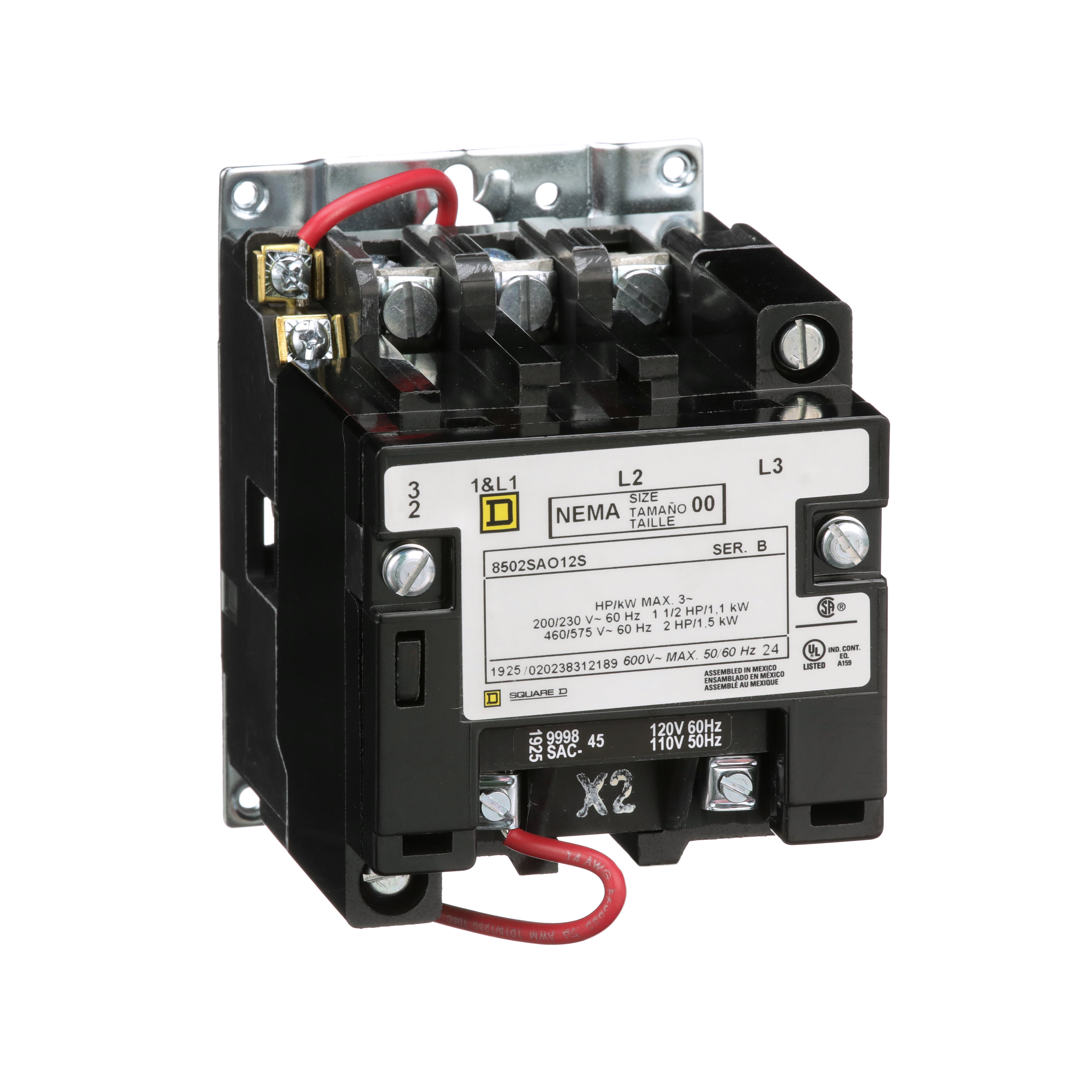

SQD 8502SAO12V02S CONTACTOR 600V 9A
- 360 Degree View URL - 360(360 Degree View URL)
- Brochure URL - 1dd055d407a404cf0573a71104eb1e47aed1cd07.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=8502SCO1V02S.dwf(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - files?p_File_Name=30072-013-08.pdf(Install Instructions 1 URL)
- Spec Sheet URL - 8502SAO12V02S(Spec Sheet URL)
- Tech Bulletin URL(Tech Bulletin URL)
- Tech Drawing URL - files?p_enDocType=Technical Drawing&p_File_Name=8502SCO1V02S.dwg(Tech Drawing URL)
- WEB CATALOG URL - Square_D_8502SDW12V06_Catalog.pdf(WEB CATALOG URL)
- WEB ROHS COMPLIANCE URL - Square_D_8502SAO12V02S_RoHS.pdf(WEB ROHS COMPLIANCE URL)
- WEB SELLER HOME PAGE URL - us(WEB SELLER HOME PAGE URL)
- Applications
- Features
| Non-reversing;Circuit-breaker 70 A maximum, SCCR: 100 kA at 480 V AC;fuse J 60 A maximum, SCCR: 100 kA at 600 V AC;fuse T 60 A maximum, SCCR: 100 kA at 600 V AC;fuse RK1 60 A maximum, SCCR: 100 kA at 600 V AC;fuse RK5 60 A maximum, SCCR: 100 kA at 600 V AC |
| 1.5 HP 200 V AC-1.5 HP 230 V AC-2 HP 460 V AC-2 HP 575 V AC,SEPARATE CONTROL CIRCUIT |
| A normally open holding circuit contact for three wire control is provided as standard |
| For flexibility field-installable or factory modified accessories include auxiliary contacts, power poles and cover mounted control stations |
| Bell crank design promotes superior electrical and mechanical life |
| NEMA sizes 00 to 5 are supplied with coils that are designed to operate satisfactorily on line voltages of 85% to 110% of rated voltage |
| NEMA sizes 5, 6 and 7 contactors are supplied with a DC coil operated by a solid state rectifier circuit that is powered by an AC source |
| Sizes 00 to 2 contactors use a class 9999 SX11 auxiliary contact as the holding circuit contact |
| Sizes 3 to 7 contactors use a class 9999 SX6 auxiliary contact as the holding circuit contact |
| 600 VAC system voltage |
| Without indicator |
