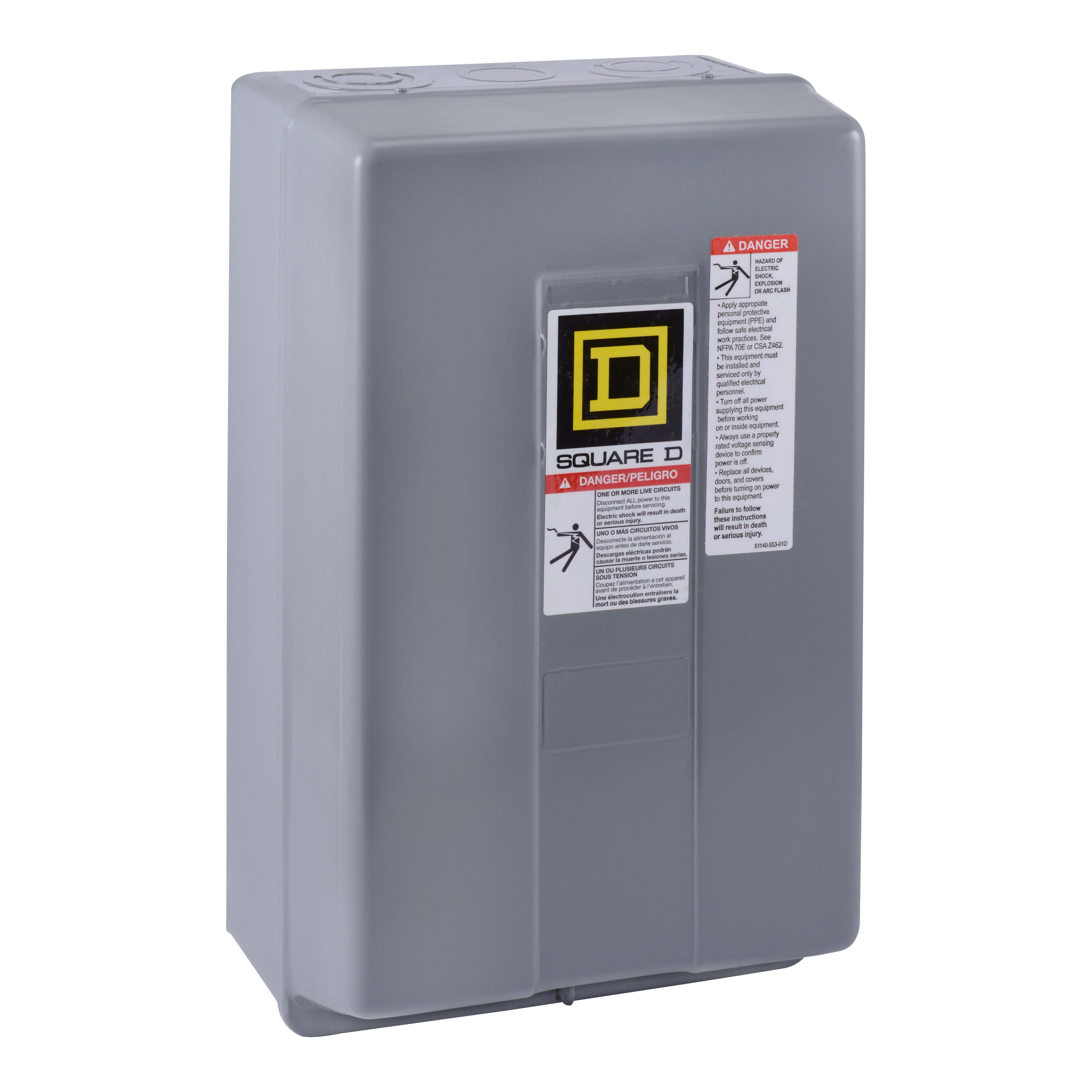

Square D™ 8502S Type S NEMA Contactor 8502SDG2V02S, 120 VAC Coil, 45 A Max Load, 3 Poles
NEMA & IEC Contactors
100110
MFG #: 8502SDG2V02S
Square D™
1031.00000
/ ea
Square D 8502SDG2V02S CONTACTOR 600VAC 45AMP NEMA +OPTIONS,120VAC60Hz - 110VAC50Hz,2,3-Phase,3-Pole,8502S,Box Lug,Non-Reversing Contactor,UL Listed - CSA Certified,Used to switch heating loads, capacitors, transformer and electric motors where overload protection is provided separately,no indicator
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8074523360Den&ext=webp(360 Degree View URL)
- Brochure URL - 1dd055d407a404cf0573a71104eb1e47aed1cd07.pdf(Brochure URL)
- Install Instructions 1 URL - 11003_VP12HTGW0YAN5847.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet 1 URL - Schneider_Electric_8502SDG2V02S_Datasheet.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - 11003_IDFGV8X1KQ5UAREM.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11003_8G547S3DJIOHPNLZ.pdf(Tech Bulletin URL)
- Tech Bulletin URL - 11003_R8DPHVO6FAXJE9S2.pdf(Tech Bulletin URL)
- Video - https://www.youtube.com/embed/RTyhiDcl_fA(Video)
- Applications
- Features
| Non-reversing;Circuit-breaker 100 A maximum, SCCR: 100 kA at 480 V AC;fuse J 100 A maximum, SCCR: 100 kA at 600 V AC;fuse T 100 A maximum, SCCR: 100 kA at 600 V AC;fuse RK1 100 A maximum, SCCR: 100 kA at 600 V AC;fuse RK5 100 A maximum, SCCR: 100 kA at 600 V AC |
| 10 HP 200 V AC-15 HP 230 V AC-25 HP 460 V AC-25 HP 575 V AC,SEPARATE CONTROL CIRCUIT |
| No control units |
| Separate control circuit |
| Fuse not supplied |
| 3-phase |
| 600 VAC system voltage |
| 10 hp at 200 VAC, 15 hp at 230 VAC, 25 hp at 460/575 VAC rated power |
