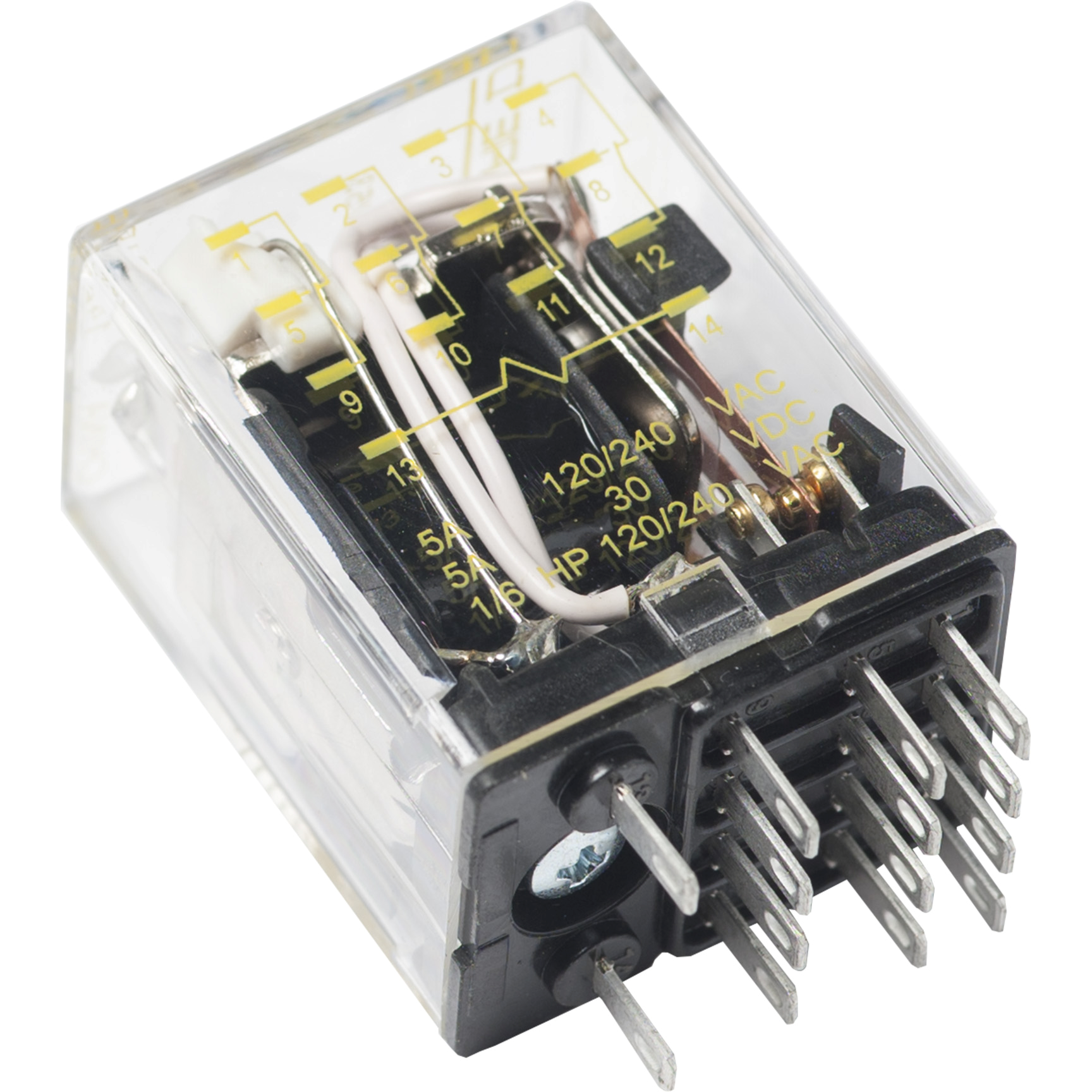

Square D™ 8501RSD14P14V53 Miniature Low Voltage General Purpose Relay, 14 Pins, 4PDT Contact Form, 24 VDC Coil
Custom_Product_Images_Illustration
Square D™ 8501RSD14P14V53 Miniature Low Voltage General Purpose Relay, 14 Pins, 4PDT Contact Form, 24 VDC Coil
SKU33881
MFGR #8501RSD14P14V53
Your Cost: $47.21/ea
Square D 8501RSD14P14V53 RELAY 240VAC 5AMP TYPE R +OPTIONS,-40deg.F to 158deg.F,24Vdc,4PDT,5A,Miniature Relay,Pick-Up 20ms(max) Drop-Out 20ms(max),Spade,low voltage,socket
Square D 8501RSD14P14V53 RELAY 240VAC 5AMP TYPE R +OPTIONS,-40deg.F to 158deg.F,24Vdc,4PDT,5A,Miniature Relay,Pick-Up 20ms(max) Drop-Out 20ms(max),Spade,low voltage,socket
Alternate Catalog Number 8501RSD14P14V53 Amperage Rating 5 A Application 8501NR45 ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 8501RSD14P14V53 Coil 300 V AT AC-30 V AT DC Coil Voltage 24 VDC Connection SPADE Contact Configuration 4PDT Contact Form 4PDT Contact Material Silver alloy, gold flashed Contact Rating 5 A at 30/240 VAC Country of Origin CN Currency USD Depth 1.6339 in EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 3.90 Gross Volume per Pack Metric 63.91 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.0800 lb Gross Weight per Pack Metric 36.29 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536490050 Height 3.3020 in Height [Metric] 3.3020 cm Item Group 21143 Length 5.0800 in Length [Metric] 5.0800 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=367623&lang=en-us Mounting Socket Mounting Type Socket Number of Pins 14 Number Of Poles 4 Operating Temperature -40-131 A°F Pickup Voltage 24 V DC Power Rating 1/6 hp Returnable Y Series 8501R Standard UL LISTED-UL RECOGNIZED-CSA-CE Stock Status NONSTOCK Substitute Product Catalog Number 8501NR45 Temperature Rating -40 to 158 °F Terminal Type Spade Type Miniature Low Voltage UNSPSC 39122325 UPC 11 78590158407 UPC 12 785901584070 Warranty Description Contractual Warranty:18 months Width 3.8100 in Width [Metric] 3.8100 cm 8501NR45 GREEN INDICATOR RELAY ENERGISED LED,WITHOUT TEST BUTTON Silver cadmium-oxide is best suited for inductive loads 20 ms pick-up, 20 ms drop out Spade shape pin
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 8501RSD14P14V53 |
| Amperage Rating | 5 A |
| Application | 8501NR45 |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 8501RSD14P14V53 |
| Coil | 300 V AT AC-30 V AT DC |
| Coil Voltage | 24 VDC |
| Connection | SPADE |
| Contact Configuration | 4PDT |
| Contact Form | 4PDT |
| Contact Material | Silver alloy, gold flashed |
| Contact Rating | 5 A at 30/240 VAC |
| Country of Origin | CN |
| Currency | USD |
| Depth | 1.6339 in |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 3.90 |
| Gross Volume per Pack Metric | 63.91 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.0800 lb |
| Gross Weight per Pack Metric | 36.29 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536490050 |
| Height | 3.3020 in |
| Height [Metric] | 3.3020 cm |
| Item Group | 21143 |
| Length | 5.0800 in |
| Length [Metric] | 5.0800 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=367623&lang=en-us |
| Mounting | Socket |
| Mounting Type | Socket |
| Number of Pins | 14 |
| Number Of Poles | 4 |
| Operating Temperature | -40-131 A°F |
| Pickup Voltage | 24 V DC |
| Power Rating | 1/6 hp |
| Returnable | Y |
| Series | 8501R |
| Standard | UL LISTED-UL RECOGNIZED-CSA-CE |
| Stock Status | NONSTOCK |
| Substitute Product Catalog Number | 8501NR45 |
| Temperature Rating | -40 to 158 °F |
| Terminal Type | Spade |
| Type | Miniature Low Voltage |
| UNSPSC | 39122325 |
| UPC 11 | 78590158407 |
| UPC 12 | 785901584070 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 3.8100 in |
| Width [Metric] | 3.8100 cm |
| 8501NR45 |
| GREEN INDICATOR RELAY ENERGISED LED,WITHOUT TEST BUTTON |
| Silver cadmium-oxide is best suited for inductive loads |
| 20 ms pick-up, 20 ms drop out |
| Spade shape pin |
