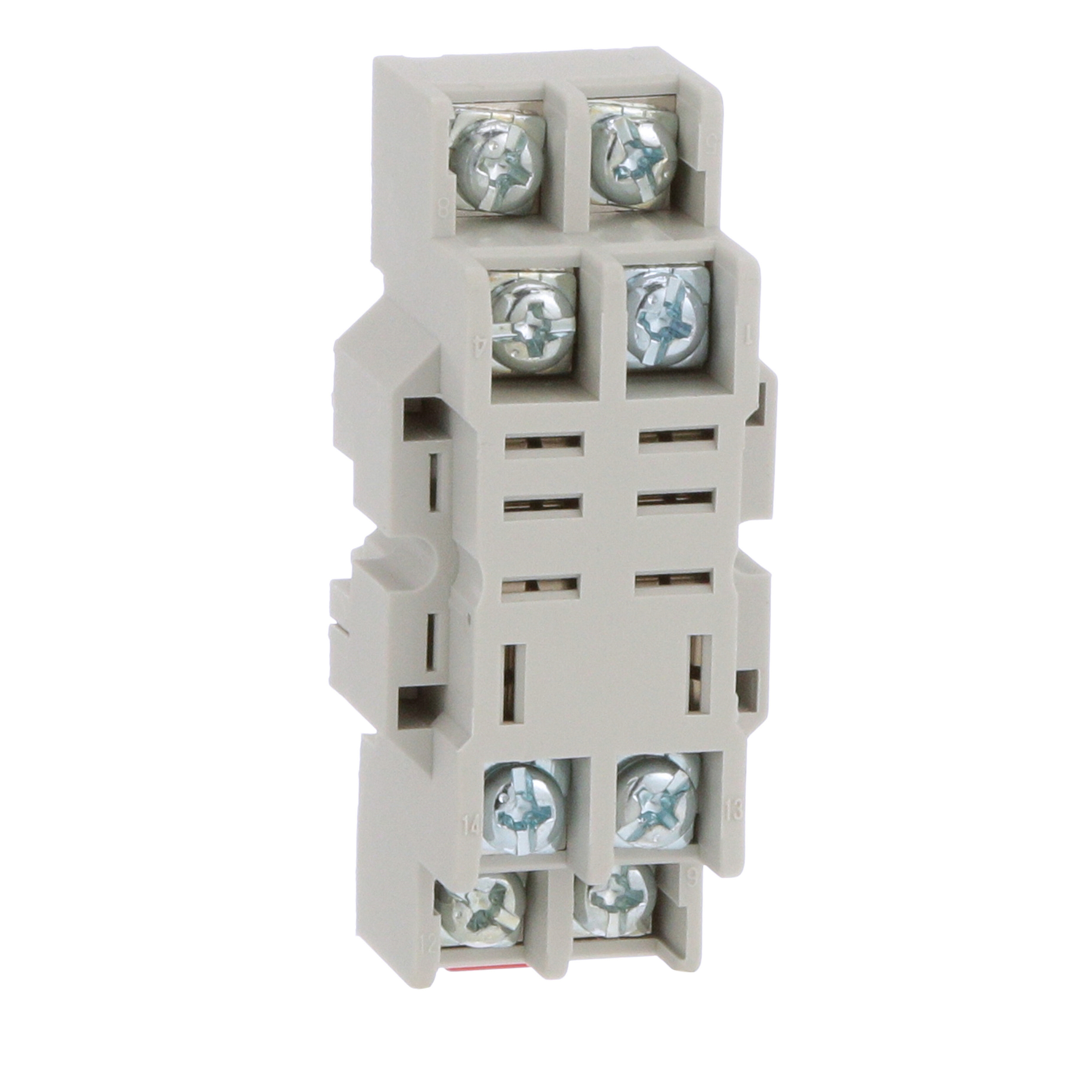

Square D™ 8501N Type R Plug-In Relay Socket, 300 VAC, 10 A, For Use With 8501RS42XXX, 8501RSD42XXX Relay, 8 Pins
Terminal Blocks
32090
MFG #: 8501NR42B
Square D™
34.24000
/ ea
Square D 8501NR42B RELAY SOCKET 300VAC 10AMP TYPE R +OPTION,10A300V,Panel or DIN Rail,Relay Socket,Spade 8 Pin,UL Recognized Component - CSA Certified - CE Marked
- 360 Degree View URL - index.html?pid=11003&id=8019487360Den&ext=webp(360 Degree View URL)
- Brochure URL - 79cae4b81852445a99d3745cc987da86c5fc1ff4.pdf(Brochure URL)
- Catalog URL - SquareD_8501CO16V08_Catalog.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=E0703701-01.dwg(Computer~Aided [CAD|BIM] Model URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_6DFN03YATJVW1LUI.pdf(Spec Sheet URL)
- Tech Drawing URL - e63540531a3efd309d7bee7bc29266c712f737b8.pdf(Tech Drawing URL)
- Video - https://www.youtube.com/embed/Hq-lwURWDPs(Video)
- Features
| SET OF 10 |
| Spade shape pin |
| Double tiered screw clamp terminals |
