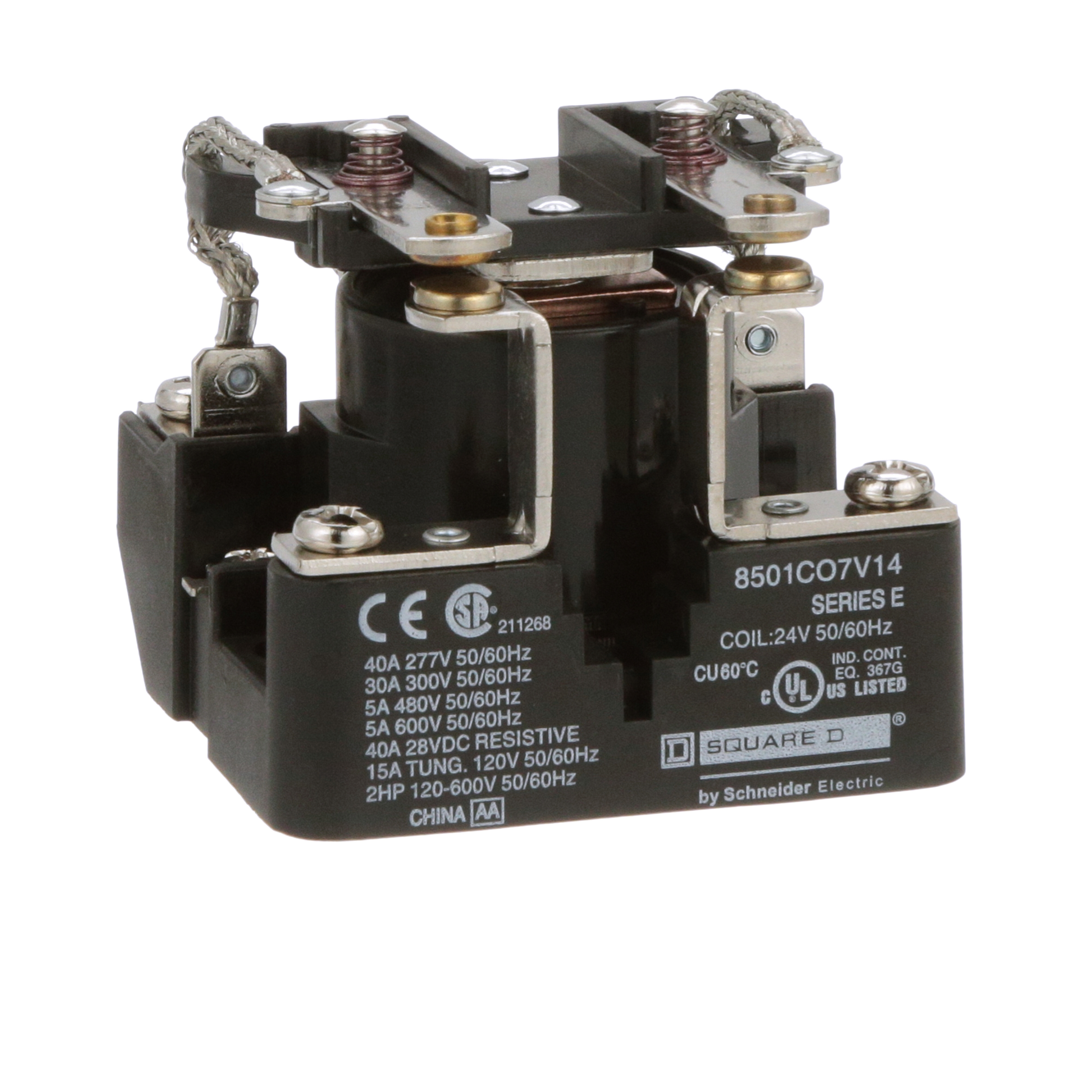

Square D™ 8501CO7V14 General Purpose Power Relay, 30 A, 1NO DPST Contact Form, 24 VAC Coil
Custom_Product_Images_Illustration
Square D™
Square D™ 8501CO7V14 General Purpose Power Relay, 30 A, 1NO DPST Contact Form, 24 VAC Coil
SKU31792
MFGR #8501CO7V14
Call For Price
List: Square D 8501CO7V14 RELAY 600VAC 5AMP TYPE C +OPTIONS,-22...122 deg.F,1-Phase,2 NO DPST,24 Vac50/60Hz,30A,AC Rated,Panel Mount,Screw Clamp,Suited for controlling small single phase motors and other light loads such as electric heaters, pilot lights or audible signals.,UL Listed File E78351 CCN NLDX - CSA Certified File 209683 Class 3211 04 - CE Marked
Square D 8501CO7V14 RELAY 600VAC 5AMP TYPE C +OPTIONS,-22...122 deg.F,1-Phase,2 NO DPST,24 Vac50/60Hz,30A,AC Rated,Panel Mount,Screw Clamp,Suited for controlling small single phase motors and other light loads such as electric heaters, pilot lights or audible signals.,UL Listed File E78351 CCN NLDX - CSA Certified File 209683 Class 3211 04 - CE Marked
Alternate Catalog Number 8501CO7V14 Amperage Rating 30 A Application SUITED FOR CONTROLLING SMALL SINGLE PHASE MOTORS AND OTHER LIGHT LOADS SUCH AS ELECTRIC HEATERS, PILOT LIGHTS OR AUDIBLE SIGNALS. ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 8501CO7V14 Coil 24 VAC@50/60HZ Coil Voltage 24 VAC Connection Screw Clamp Contact Configuration 2 NO Contact Form 2NO DPST Contact Rating 30 A at 300 VAC, 5 A at 600 VAC Country of Origin CN Currency USD Dimensions 2.25 in H x 2.43 in W x 2.5 in D Enclosure Type NEMA 1 EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 14.38 Gross Volume per Pack Metric 235.56 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.5500 lb Gross Weight per Pack Metric 249.48 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536490075 Height 5.8420 in Height [Metric] 5.8420 cm Item Group 21131 Length 6.3500 in Length [Metric] 6.3500 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=366837&lang=en-us Mounting PANEL MOUNTING Mounting Type Panel Number Of Poles 2 Operating Temperature -22...122 °F Phase 1-Phase Pickup Voltage 24 V AC 50/60 HZ Power Rating 1-1/2 hp Returnable Y Series 8501C Standard UL LISTED FILE E78351 CCN NLDX-CSA-CE Stock Status NORMALLY STOCKED Sub Brand TYPE C Substitute Product Catalog Number 9991UE1 Temperature Rating -22 to 122 °F Terminal Type Screw/Clamp Type 1-Phase General Purpose UNSPSC 39122324 UPC 11 78590105206 UPC 12 785901052067 Warranty Description Contractual Warranty:18 months Width 6.3500 in Width [Metric] 6.3500 cm SUITED FOR CONTROLLING SMALL SINGLE PHASE MOTORS AND OTHER LIGHT LOADS SUCH AS ELECTRIC HEATERS, PILOT LIGHTS OR AUDIBLE SIGNALS. Visible contacts Low cost Horsepower rated 8501 Type C open-frame power relays 600 VAC voltage rating
