Square D™

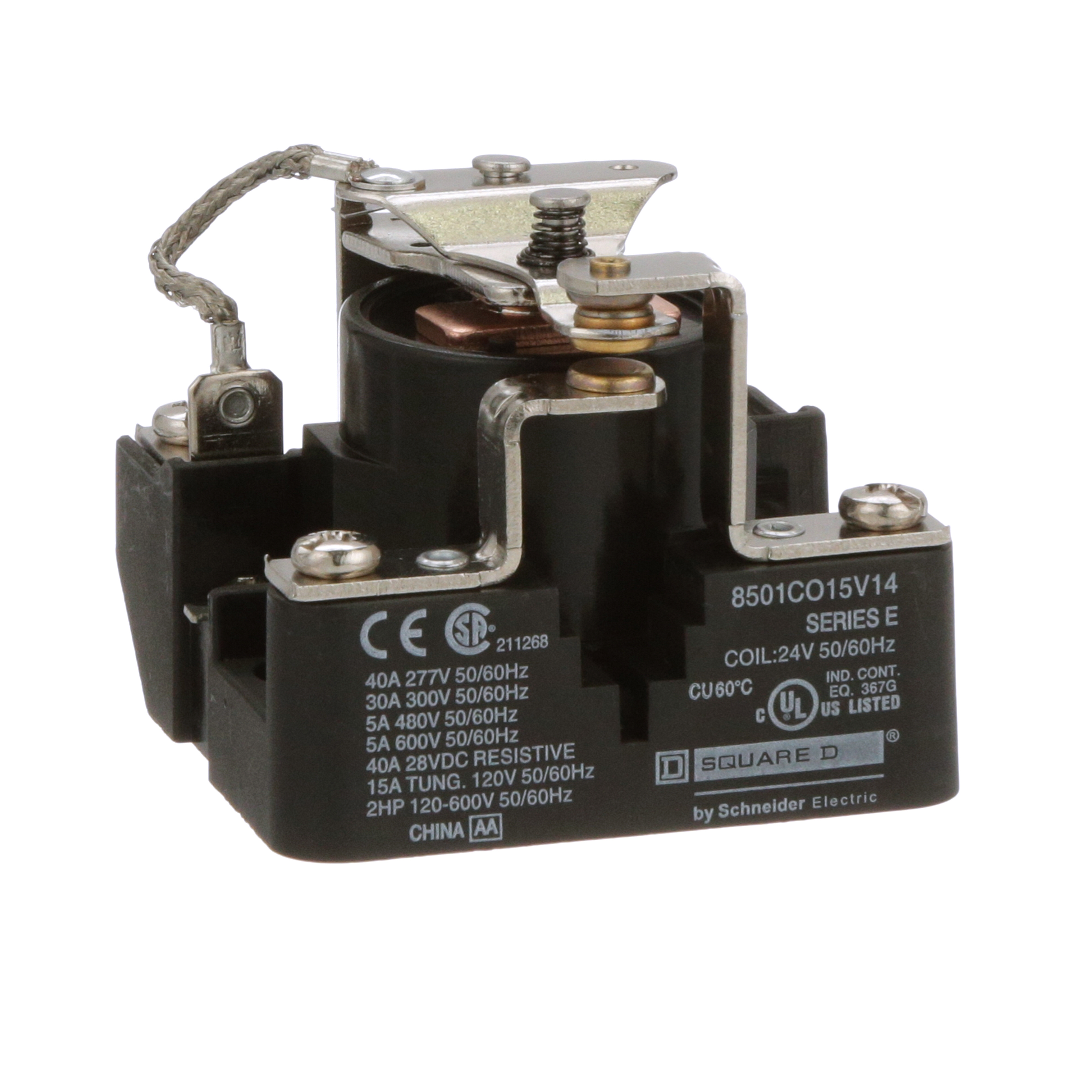

Square D™ 8501CO15V14 RELAY 600VAC 5AMP T
Custom_Product_Images_Illustration
Square D™
Square D™ 8501CO15V14 RELAY 600VAC 5AMP T
SKU96102
MFGR #8501CO15V14
Your Cost: $73.11/ea
Square D 8501CO15V14 RELAY 600VAC 5AMP TYPE C +OPTIONS,-22...122 deg.F,1 NO/1 NC SPDT,1-Phase,24 Vac50/60Hz,30A,AC Rated,Panel Mount,Screw Clamp,Suited for controlling small single phase motors and other light loads such as electric heaters, pilot lights or audible signals.,UL Listed File E78351 CCN NLDX - CSA Certified File 209683 Class 3211 04 - CE Marked
Square D 8501CO15V14 RELAY 600VAC 5AMP TYPE C +OPTIONS,-22...122 deg.F,1 NO/1 NC SPDT,1-Phase,24 Vac50/60Hz,30A,AC Rated,Panel Mount,Screw Clamp,Suited for controlling small single phase motors and other light loads such as electric heaters, pilot lights or audible signals.,UL Listed File E78351 CCN NLDX - CSA Certified File 209683 Class 3211 04 - CE Marked
Alternate Catalog Number 8501CO15V14 Amperage Rating 5 A Application SUITED FOR CONTROLLING SMALL SINGLE PHASE MOTORS AND OTHER LIGHT LOADS SUCH AS ELECTRIC HEATERS, PILOT LIGHTS OR AUDIBLE SIGNALS. ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 8501CO15V14 Coil 24 VAC@50/60HZ Coil Voltage 24 VAC at 50/60 Hz Connection Screw Clamp Contact Configuration 1 NO/1 NC Contact Form 1NO/1NC, SPDT Contact Rating 30 A Country of Origin US Currency USD Enclosure Type Open EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 15.55 Gross Volume per Pack Metric 254.78 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.4900 lb Gross Weight per Pack Metric 222.26 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536410020 Height 5.8420 in Height [Metric] 5.8420 cm Item Group 21131 Length 6.6040 in Length [Metric] 6.6040 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=366747&lang=en-us Mounting Panel mounting Mounting Type Panel Number of Pins 5 Number Of Poles 1 Operating Temperature -22...122 °F Phase 1-Phase Pickup Voltage 24 V AC 50/60 HZ Power Rating 1.5 hp Returnable Y Series 8501 Standard UL LISTED FILE E78351 CCN NLDX-CSA-CE Stock Status NONSTOCK Sub Brand Type C Substitute Product Catalog Number 9991UE1 Temperature Rating 2.5 in W x 2.18 in D x 2.43 in H Terminal Type Screw/Clamp Type Heavy Duty Type C UNSPSC 39122324 UPC 11 78590105209 UPC 12 785901052098 Warranty Description Contractual Warranty:18 months Width 6.6040 in Width [Metric] 6.6040 cm SUITED FOR CONTROLLING SMALL SINGLE PHASE MOTORS AND OTHER LIGHT LOADS SUCH AS ELECTRIC HEATERS, PILOT LIGHTS OR AUDIBLE SIGNALS. Ideally suited for controlling 1-ph motors used in robust conditions Durable open-frame construction
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 8501CO15V14 |
| Amperage Rating | 5 A |
| Application | SUITED FOR CONTROLLING SMALL SINGLE PHASE MOTORS AND OTHER LIGHT LOADS SUCH AS ELECTRIC HEATERS, PILOT LIGHTS OR AUDIBLE SIGNALS. |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 8501CO15V14 |
| Coil | 24 VAC@50/60HZ |
| Coil Voltage | 24 VAC at 50/60 Hz |
| Connection | Screw Clamp |
| Contact Configuration | 1 NO/1 NC |
| Contact Form | 1NO/1NC, SPDT |
| Contact Rating | 30 A |
| Country of Origin | US |
| Currency | USD |
| Enclosure Type | Open |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 15.55 |
| Gross Volume per Pack Metric | 254.78 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.4900 lb |
| Gross Weight per Pack Metric | 222.26 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536410020 |
| Height | 5.8420 in |
| Height [Metric] | 5.8420 cm |
| Item Group | 21131 |
| Length | 6.6040 in |
| Length [Metric] | 6.6040 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=366747&lang=en-us |
| Mounting | Panel mounting |
| Mounting Type | Panel |
| Number of Pins | 5 |
| Number Of Poles | 1 |
| Operating Temperature | -22...122 °F |
| Phase | 1-Phase |
| Pickup Voltage | 24 V AC 50/60 HZ |
| Power Rating | 1.5 hp |
| Returnable | Y |
| Series | 8501 |
| Standard | UL LISTED FILE E78351 CCN NLDX-CSA-CE |
| Stock Status | NONSTOCK |
| Sub Brand | Type C |
| Substitute Product Catalog Number | 9991UE1 |
| Temperature Rating | 2.5 in W x 2.18 in D x 2.43 in H |
| Terminal Type | Screw/Clamp |
| Type | Heavy Duty Type C |
| UNSPSC | 39122324 |
| UPC 11 | 78590105209 |
| UPC 12 | 785901052098 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 6.6040 in |
| Width [Metric] | 6.6040 cm |
| SUITED FOR CONTROLLING SMALL SINGLE PHASE MOTORS AND OTHER LIGHT LOADS SUCH AS ELECTRIC HEATERS, PILOT LIGHTS OR AUDIBLE SIGNALS. |
| Ideally suited for controlling 1-ph motors used in robust conditions |
| Durable open-frame construction |
