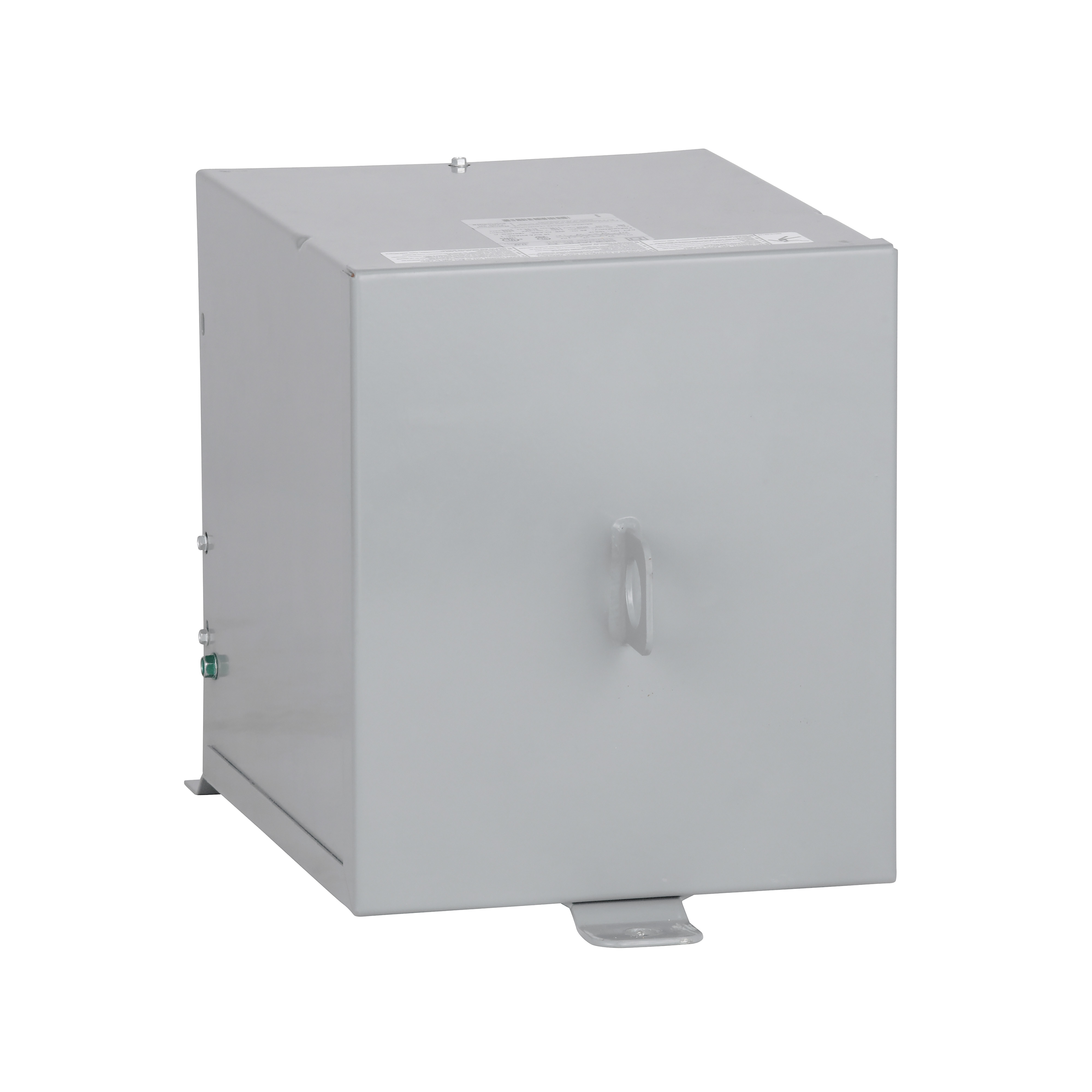

Square D™ 7S1F Dry Encapsulated General Purpose Resin Sealed Transformer, 240/480 VAC Primary, 120/240 VAC Secondary
Custom_Product_Images_Illustration
Square D™ 7S1F Dry Encapsulated General Purpose Resin Sealed Transformer, 240/480 VAC Primary, 120/240 VAC Secondary
SKU33118
MFGR #7S1F
Your Cost: $1,377.28/ea
List: Square D 7S1F TRANSFORMER DRY 7.5KVA 240X480V-120/240V,1 phase,115 Degrees C,120/240VAC,180 deg.C,240 x 480VAC,7.5 kVA,Dry Sealed Transformer,General Purpose - Intended for power, heating and lighting applications,NEMA 3R,Wall,cULus Listed
Square D 7S1F TRANSFORMER DRY 7.5KVA 240X480V-120/240V,1 phase,115 Degrees C,120/240VAC,180 deg.C,240 x 480VAC,7.5 kVA,Dry Sealed Transformer,General Purpose - Intended for power, heating and lighting applications,NEMA 3R,Wall,cULus Listed
Alternate Catalog Number 7S1F Application GENERAL PURPOSE - INTENDED FOR POWER, HEATING AND LIGHTING APPLICATIONS ARRA Compliant N Buy American Compliant N Catalog Number 7S1F Country of Origin MX Currency USD Dimensions 14.8 in H x 9.8 in W x 11.8 in D Enclosure Painted sheet steel;13B Enclosure Type NEMA 3R EU RoHS Indicator Y Gross Volume Per Pack 2228.50 Gross Volume per Pack Metric 36518.51 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 134.9900 lb Gross Weight per Pack Metric 61.23 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504320000 Height 35.0000 in Height [Metric] 35.0000 cm Housing Material Steel Insulation Class 115 Item Group 16277 KVA Rating 7.5 Length 39.0000 in Length [Metric] 39.0000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=456239&lang=en-us Mounting Wall Mounted Mounting Type Wall Number Of Taps 0 Returnable Y Standard UL LISTED-CULUS-CSA Substitute Product Catalog Number VCELSK1 Temperature Rating 115 °C Type Dry Sealed Encapsulated General Purpose UNSPSC 39121001 UPC 11 78590135955 UPC 12 785901359555 Warranty Description Contractual Warranty:18 months Width 24.0000 in Width [Metric] 24.0000 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Frequency Rating 60 Hz Phase 1 Power Rating 7.5 kVA Primary Voltage 240/480 VAC Secondary Voltage 120/240 VAC GENERAL PURPOSE - INTENDED FOR POWER, HEATING AND LIGHTING APPLICATIONS DRY SEALED TRANSFORMER Resin-filled general purpose transformers are epoxy encapsulated The enclosure has no openings, making resin-filled transformers ideal for use indoor or outdoor where airborne particles or contaminants could be detrimental to operation The core-and-coil assembly is embedded in an epoxy resin compound and wall mounted for maximum protection
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 7S1F |
| Application | GENERAL PURPOSE - INTENDED FOR POWER, HEATING AND LIGHTING APPLICATIONS |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | 7S1F |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 14.8 in H x 9.8 in W x 11.8 in D |
| Enclosure | Painted sheet steel;13B |
| Enclosure Type | NEMA 3R |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 2228.50 |
| Gross Volume per Pack Metric | 36518.51 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 134.9900 lb |
| Gross Weight per Pack Metric | 61.23 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504320000 |
| Height | 35.0000 in |
| Height [Metric] | 35.0000 cm |
| Housing Material | Steel |
| Insulation Class | 115 |
| Item Group | 16277 |
| KVA Rating | 7.5 |
| Length | 39.0000 in |
| Length [Metric] | 39.0000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=456239&lang=en-us |
| Mounting | Wall Mounted |
| Mounting Type | Wall |
| Number Of Taps | 0 |
| Returnable | Y |
| Standard | UL LISTED-CULUS-CSA |
| Substitute Product Catalog Number | VCELSK1 |
| Temperature Rating | 115 °C |
| Type | Dry Sealed Encapsulated General Purpose |
| UNSPSC | 39121001 |
| UPC 11 | 78590135955 |
| UPC 12 | 785901359555 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 24.0000 in |
| Width [Metric] | 24.0000 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Frequency Rating | 60 Hz |
| Phase | 1 |
| Power Rating | 7.5 kVA |
| Primary Voltage | 240/480 VAC |
| Secondary Voltage | 120/240 VAC |
| GENERAL PURPOSE - INTENDED FOR POWER, HEATING AND LIGHTING APPLICATIONS |
| DRY SEALED TRANSFORMER |
| Resin-filled general purpose transformers are epoxy encapsulated |
| The enclosure has no openings, making resin-filled transformers ideal for use indoor or outdoor where airborne particles or contaminants could be detrimental to operation |
| The core-and-coil assembly is embedded in an epoxy resin compound and wall mounted for maximum protection |
