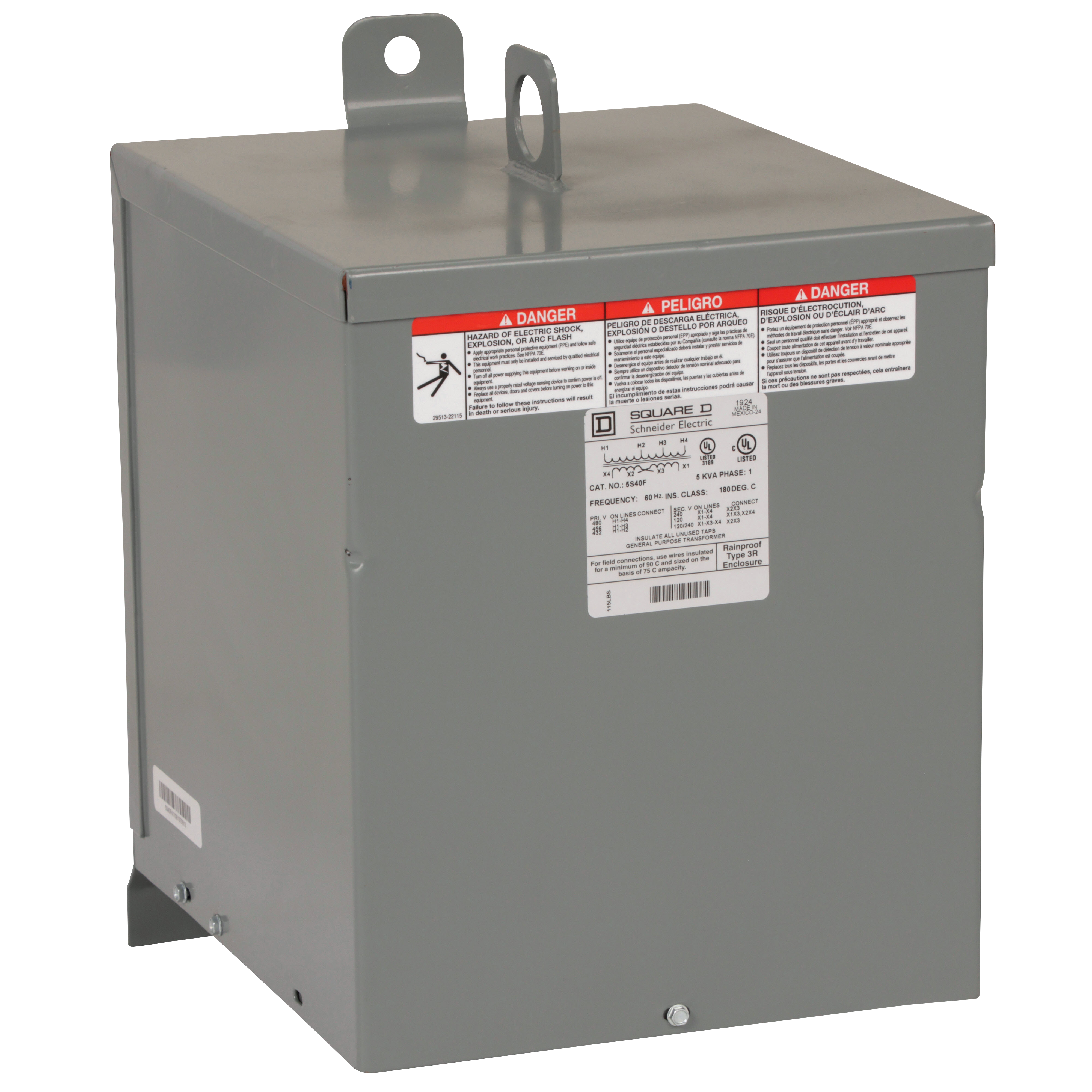

Square D™ 5S40F Encapsulated General Purpose Sealed Transformer, 480 VAC Primary, 120/240 VAC Secondary, 5 kVA, 60 Hz
General Purpose - Multi-Use Transformers
33113
MFG #: 5S40F
Square D™
1512.75000
/ ea
Square D 5S40F TRANSFORMER DRY 1PH 5KVA 480V-120/240V,1-Phase,115 Deg. C,120/240V60Hz,180 Degrees C,480V,5kVA,General Purpose - Intended for power, heating and lighting applications,Painted Steel,Sealed,Wall,cULus Listed
- 360 Degree View URL - index.html?pid=11003&id=8002651360Den&ext=webp(360 Degree View URL)
- Brochure URL - c5cb230133234aed14925dde8e73fa734a010f83.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_35f928f3b9c72a47fe6f7d69625b65faf2d87caff4fe70835fbbd692da225585.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=3590.dwg(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_Y1GL5X6ZNJE3R9KP.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_BA4V25UHP63WMSDG.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11003_I5X80GJ2HWECKZ3T.pdf(Tech Bulletin URL)
- Tech Drawing URL - 11003_QH6A3PO981S7CEDZ.zip(Tech Drawing URL)
- Applications
- Features
| GENERAL PURPOSE - INTENDED FOR POWER, HEATING AND LIGHTING APPLICATIONS |
| Resin-filled general purpose transformers are epoxy encapsulated |
| The enclosure has no openings, making resin-filled transformer ideal for use indoor or outdoor where airborne particles or contaminants could be detrimental to operation |
| The core-and-coil assembly is embedded in an epoxy resin compound and wall mounted for maximum protection |
