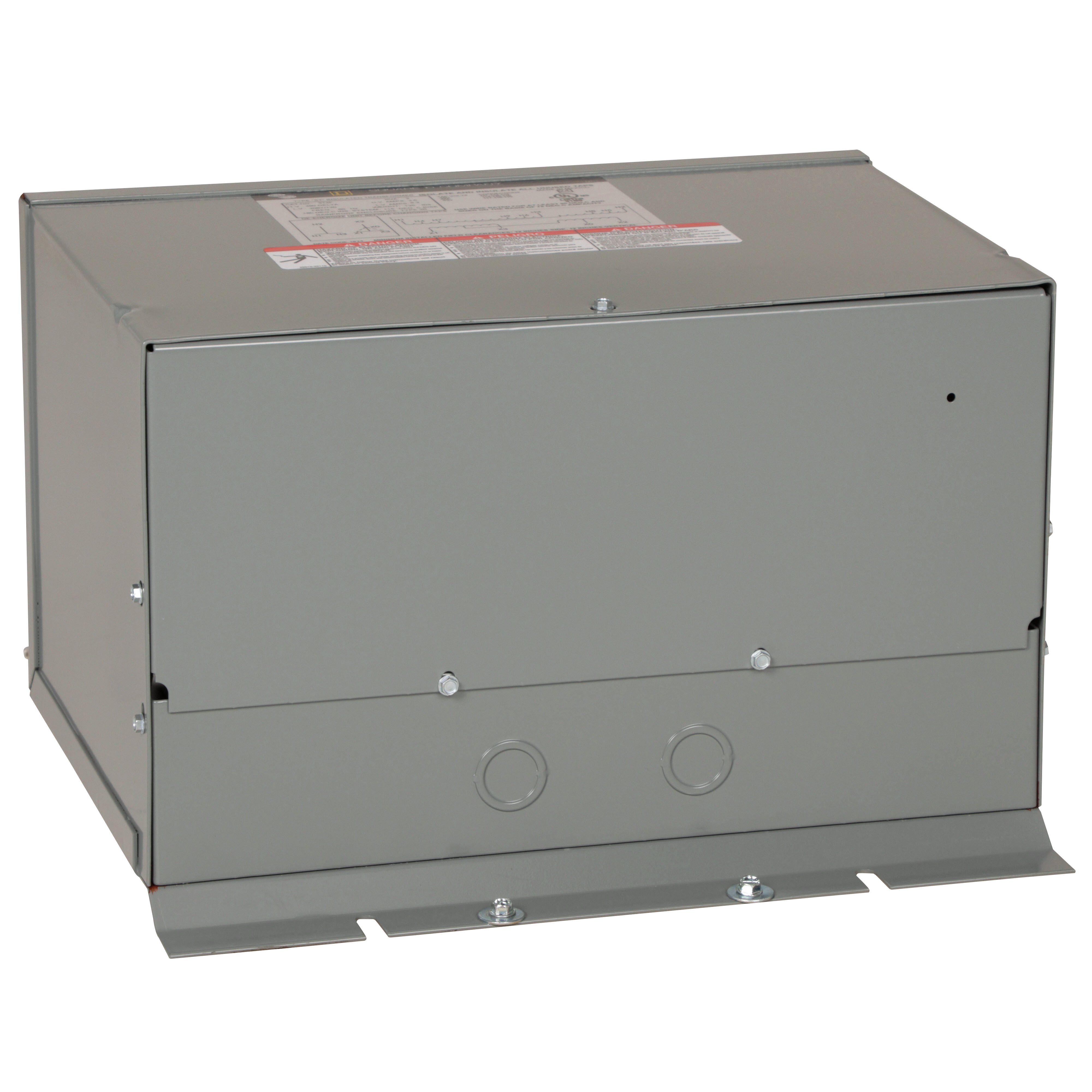

Square D™ 3T2F Dry Encapsulated General Purpose Resin Sealed Transformer, 480 VAC Delta Primary, 208Y/120 VAC Secondary
General Purpose - Multi-Use Transformers
97945
MFG #: 3T2F
Square D™
1719.00000
/ ea
Square D 3T2F TRANSFORMER DRY 3PH 3KVA 480V-208Y/120V,115 Degrees C,180 deg.C,208Y/120VAC,3 kVA,3 phases,480VAC (Delta),Dry Sealed Transformer,General Purpose - Intended for power, heating and lighting applications,NEMA 3R,Wall,cULus Listed
- 18 Months(WEB WARRANTY URL)
- 360 Degree View URL - 360(360 Degree View URL)
- Brochure URL - c5cb230133234aed14925dde8e73fa734a010f83.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=3544.DWF(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - files?p_File_Name=39000-243-01.pdf(Install Instructions 1 URL)
- Spec Sheet URL - 964aaca0edfdf74ac9c7583a79f40958851c1d43.pdf(Spec Sheet URL)
- WEB COMPLIANCE CERT URL - Square_D_3T2F_Compliance_Certificate.pdf(WEB COMPLIANCE CERT URL)
- WEB SELLER HOME PAGE URL - us(WEB SELLER HOME PAGE URL)
- WEB TECH BULLETIN URL - 3d659c77db06ddebcbcc9ee8a8124e0c0a6bc56f.pdf(WEB TECH BULLETIN URL)
- WEB TECH DRAWING URL - 96d0bc1d0ec39a51ad2f19ef1f3ab0b0c0450782.pdf(WEB TECH DRAWING URL)
- Applications
- Features
| GENERAL PURPOSE - INTENDED FOR POWER, HEATING AND LIGHTING APPLICATIONS |
| DRY SEALED TRANSFORMER |
| Resin-filled general purpose transformers are epoxy encapsulated |
| The enclosure has no openings, making resin-filled transformers ideal for use indoor or outdoor where airborne particles or contaminants could be detrimental to operation |
| The core-and-coil assembly is embedded in an epoxy resin compound and wall mounted for maximum protection |
| Painted steel |
