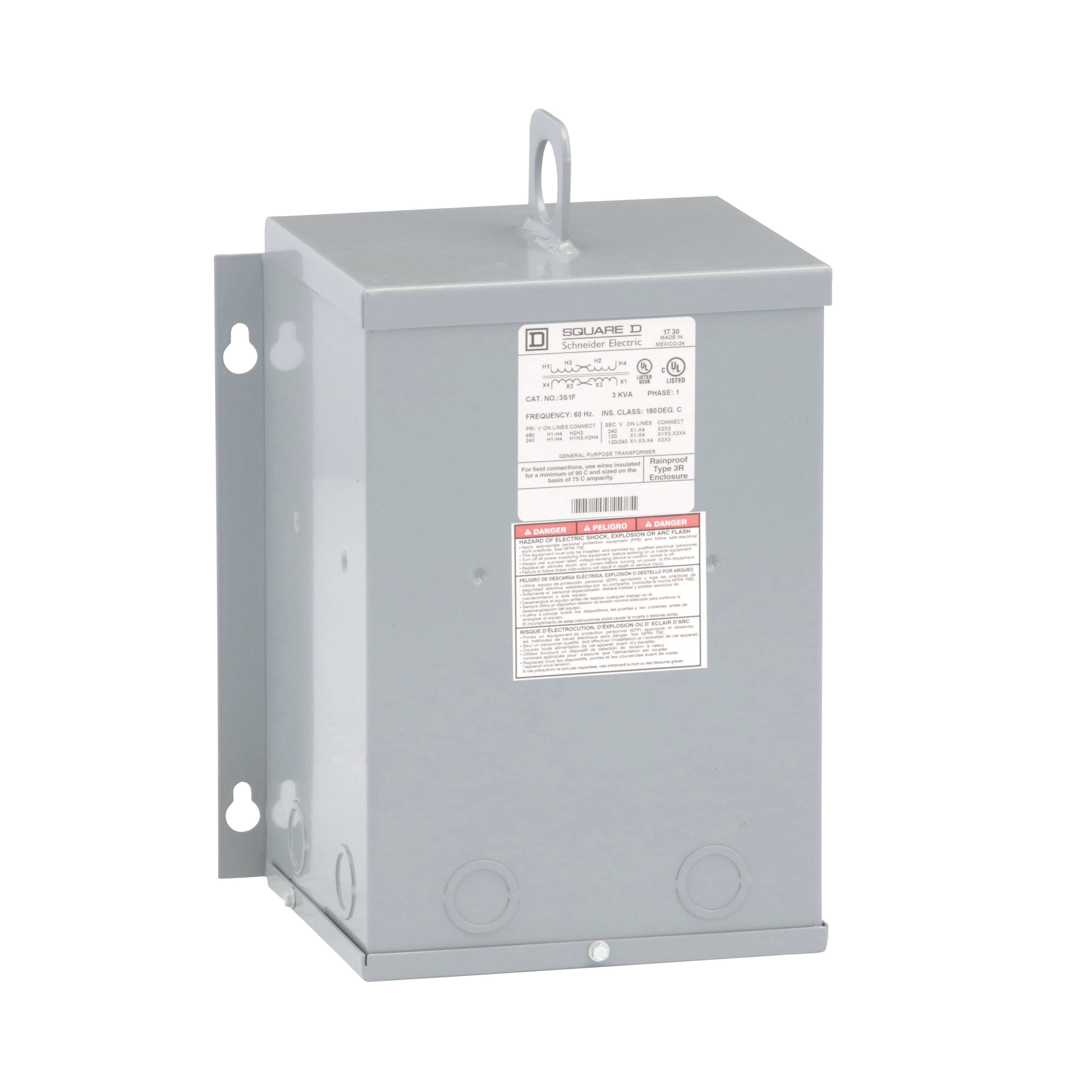

Square D™ 3S1F Dry Encapsulated General Purpose Resin Sealed Transformer, 240/480 VAC Primary, 120/240 VAC Secondary
General Purpose - Multi-Use Transformers
33110
MFG #: 3S1F
Square D™
1546.00000
/ ea
Square D 3S1F TRANSFORMER DRY 3KVA 240X480V-120/240V,1 phase,115 Degrees C,120/240VAC,180 deg.C,240 x 480VAC,3 kVA,Dry Sealed Transformer,General Purpose - Intended for power, heating and lighting applications,NEMA 3R,Wall,cULus Listed
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8002639360Den&ext=webp(360 Degree View URL)
- 3D Rendering URL - SEproductListV2.html?p=3S1F(3D Rendering URL)
- Brochure URL - c5cb230133234aed14925dde8e73fa734a010f83.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_35f928f3b9c72a47fe6f7d69625b65faf2d87caff4fe70835fbbd692da225585.pdf(Catalog URL)
- Compliance Cert URL - Square_D_3S1F_Compliance_Certificate.pdf(Compliance Cert URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=3589.DWF(Computer~Aided [CAD|BIM] Model URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=3589.dwg(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_Y1GL5X6ZNJE3R9KP.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_IOD5CY7USAKJFE2G.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11003_DVHEKX1S046YAG57.pdf(Tech Bulletin URL)
- Tech Bulletin URL - 11003_I5X80GJ2HWECKZ3T.pdf(Tech Bulletin URL)
- Tech Drawing URL - 11003_5TVDF4O2ZU1GIAEM.zip(Tech Drawing URL)
- Tech Drawing URL - 11003_HVOT0S65WQ1ANF9L.zip(Tech Drawing URL)
- Applications
- Features
| GENERAL PURPOSE - INTENDED FOR POWER, HEATING AND LIGHTING APPLICATIONS |
| DRY SEALED TRANSFORMER |
| Resin filled general purpose transformers are epoxy encapsulated |
| The enclosure has no openings, making resin filled transformers ideal for use indoor or outdoor where airborne particles or contaminants could be detrimental to operation |
| The core and coil assembly is embedded in an epoxy resin compound and wall mounted for maximum protection |
