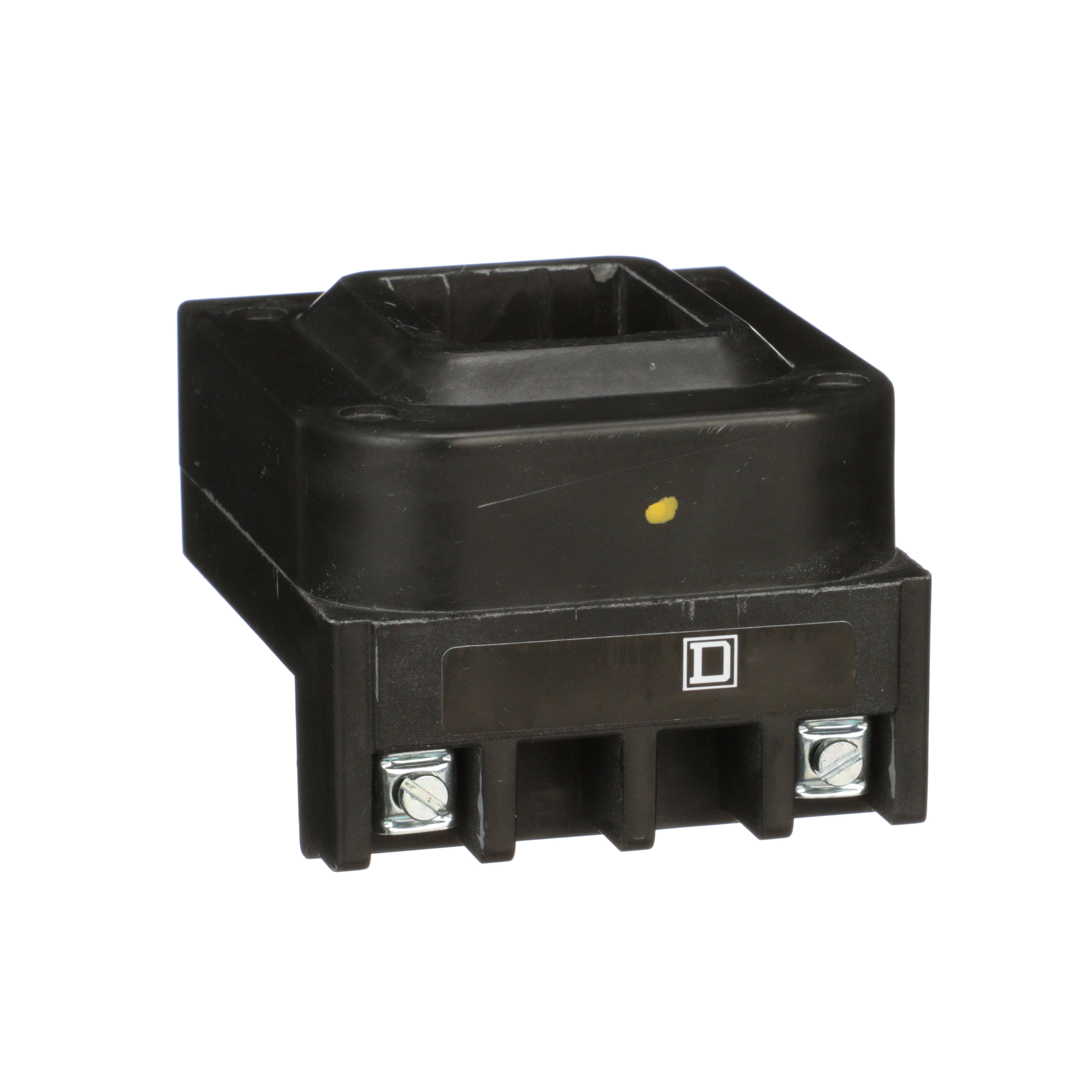

Square D™ 3107440047 Contactor/Starter Coil, NEMA 3, 240 VAC, 50/60 Hz
Motor Control Coils
32137
MFG #: 3107440047
Square D™
254.00000
/ ea
Square D 3107440047 CONTACTOR+STARTER COIL 240VAC,2 & 3 Pole configurations, Type DPA12, SE, SQ, & SYD138,240 V AC,40C Ambient,50/60Hz,Contactors and Starters,Direct,Nema Size 3 & 100A,Schneider Electric Screw Clamp,UL, CSA
- 360 Degree View URL - 360(360 Degree View URL)
- Brochure URL - 1dd055d407a404cf0573a71104eb1e47aed1cd07.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=E0300501-01.dwg(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - files?p_File_Name=30072-452-68 Rev.01.pdf(Install Instructions 1 URL)
- Spec Sheet URL - 0e2e03978dca43d6967bc4b894e952746eb8fc4b.pdf(Spec Sheet URL)
- Video - https://youtube.com/embed/px9WH8Biy0o(Video)
- WEB INSTALL INSTR URL - Square_D_3107440038_Installation.pdf(WEB INSTALL INSTR URL)
- WEB SELLER HOME PAGE URL - us(WEB SELLER HOME PAGE URL)
- WEB TECH DRAWING URL - 23188ba5ab6e5241a8d5be27b35407da83ad08cf(WEB TECH DRAWING URL)
- Applications
- Features
| CONTACTORS AND STARTERS |
| 2 & 3 POLE CONFIGURATIONS, TYPE DPA12, SE, SQ, & SYD138 |
| Non-reversing Magnetic Starters |
| Used to switch AC inductive motors |
| Available from NEMA Size 00 to NEMA Size 7 |
| Supplied with VAC coil 50/60 Hz. |
| Rated for 600 volts maximum, up to 600 HP and with a maximum of 810A |
| Bellcrank design is used to get improved electrical and mechanical life |
| Replaceable coil and contacts |
| UL and CSA approvals |
