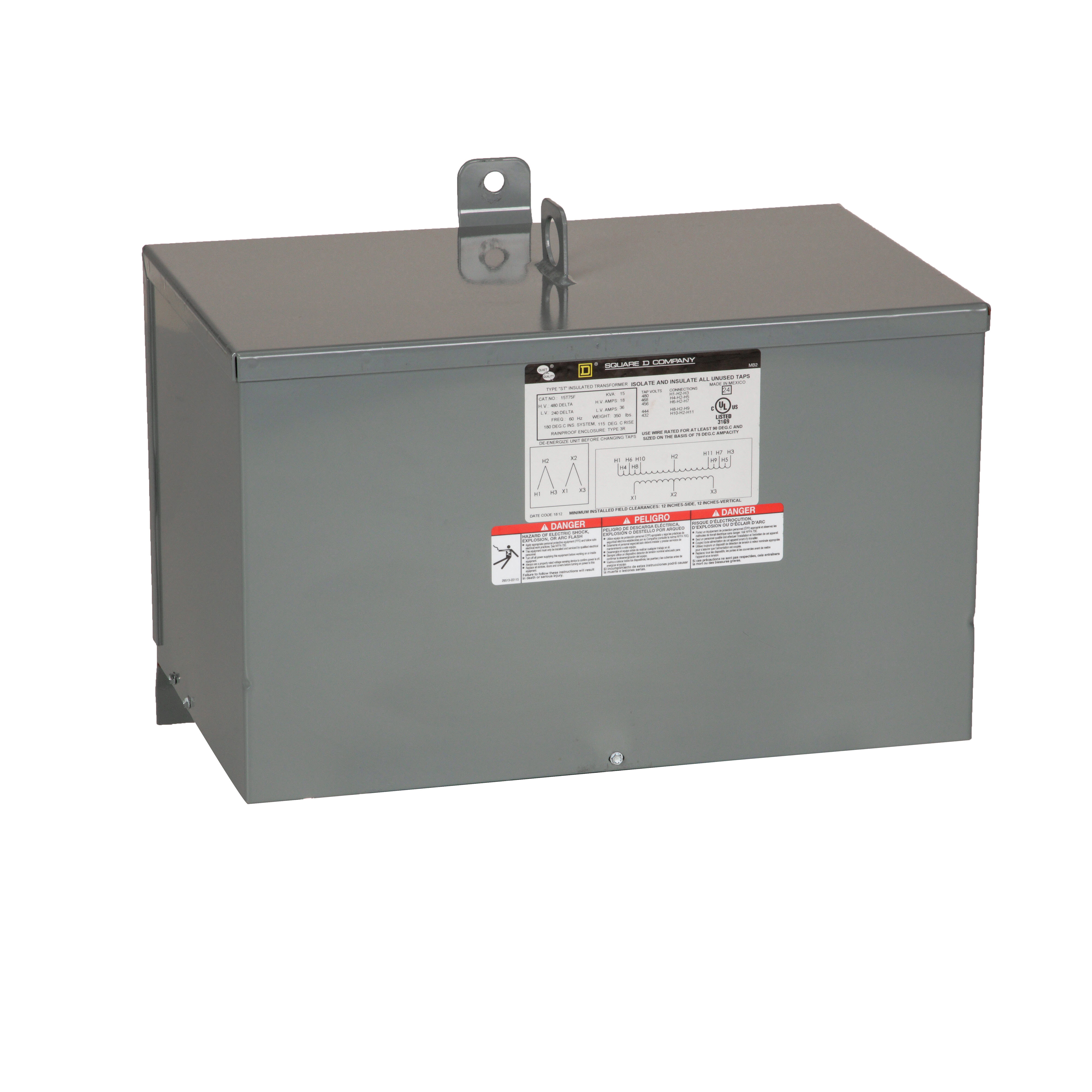

Square D™ 30T2FSS TRANSFORMER DRY 3PH 30K
General Purpose - Multi-Use Transformers
951499
MFG #: 30T2FSS
Square D™
19771.86000
/ ea
Square D 30T2FSS TRANSFORMER DRY 3PH 30KVA 480V-208Y/120V,(2) 5 FCBN,115 Degrees C,180 deg.C,208Y/120VAC,3 phases,30 kVA,480VAC (Delta),Dry Sealed Transformer,General Purpose - Intended for power, heating and lighting applications,NEMA 3R,Wall,cULus Listed
- Brochure URL - c5cb230133234aed14925dde8e73fa734a010f83.pdf(Brochure URL)
- Catalog URL - Square_D_37S3HNV_Catalog.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_Archive_Name=3546.zip&p_enDocType=CAD&p_Doc_Ref=3546(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_Y1GL5X6ZNJE3R9KP.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - files?p_File_Name=39000-243-01.pdf(Install Instructions 1 URL)
- ROHS Compliance URL - Square_D_30T2FSS_RoHS.pdf(ROHS Compliance URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_UO0BZHW1CN7RDXL8.pdf(Spec Sheet URL)
- Spec Sheet URL - a5b734d356377de082c0e98fb3d527fade7b7da7.pdf(Spec Sheet URL)
- Tech Drawing URL - 7a43da6735cc7b3b62f7e1fe9f9ba3c4f98f100b(Tech Drawing URL)
- Applications
- Features
GENERAL PURPOSE - INTENDED FOR POWER, HEATING AND LIGHTING APPLICATIONS |
DRY SEALED TRANSFORMER |
Individual enclosures from 50 VA through 5 kVA allowing for the most compact solutions in the industry |
Large stock level of the product located in 2 Square D™ distribution centers, allowing customer to obtain product quickly |
Can be field connected for 3 ph applications, when codes limit size of transformers (other air handling space - not to exceed 50kVA) or where floor space is limited but wall space is abundant |
Can be configured into autotransformer open delta to convert 480 delta to 380 delta or 400 delta or can supply isolation solution from 480 delta to 415Y/240 for overseas equipment arriving in the United States - eliminating the need to wait for customer built transformer |
General purpose - intended for power, heating and lighting applications, these units can be used outdoors without accessories |
Resin-filled transformers |
