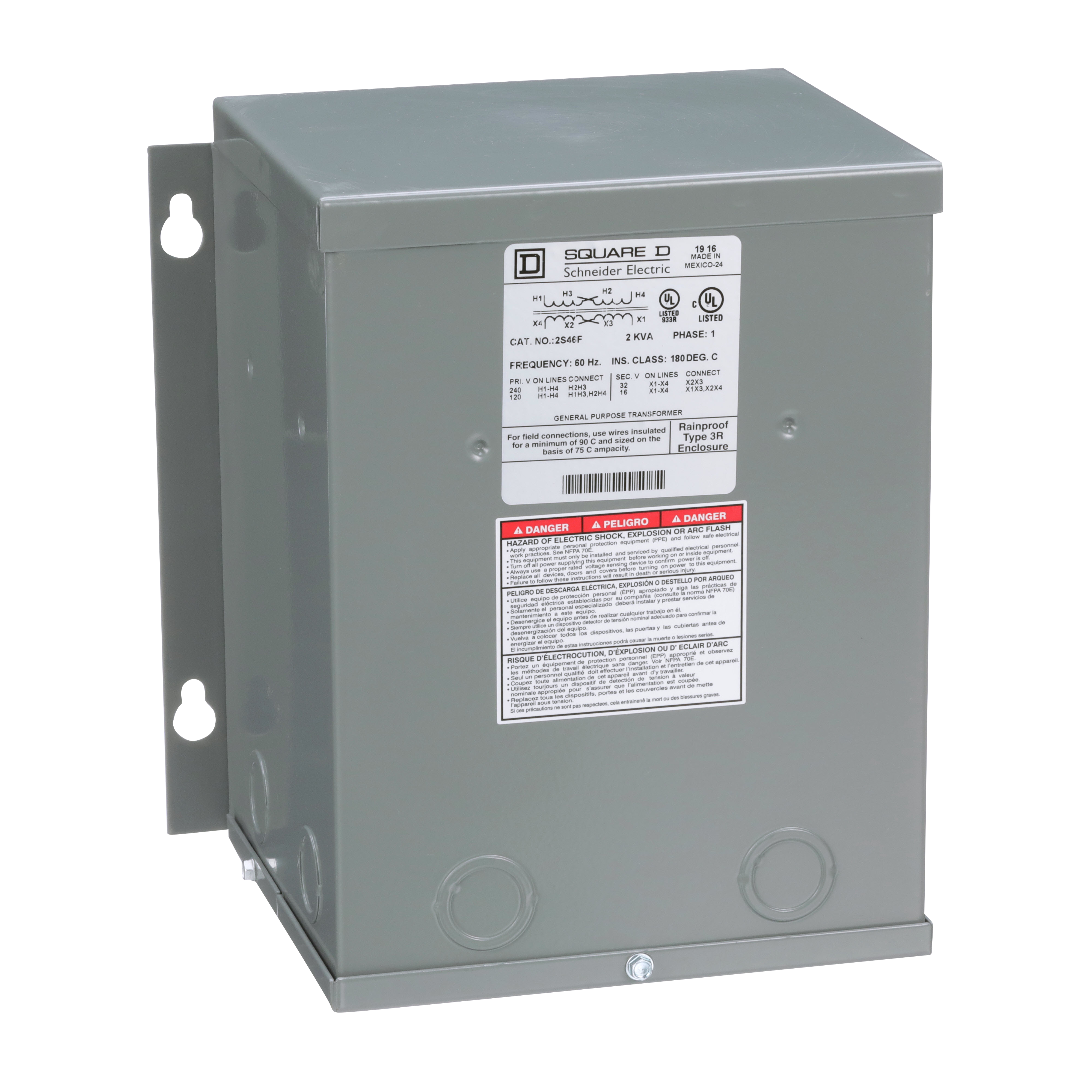

Square D™ 2S46F Buck Boost Transformer, 120/240 VAC Primary, 16/32 VAC Secondary, 2 kVA, 60 Hz, 1 Phase
Buck Boost Transformers
296610
MFG #: 2S46F
Square D™
1448.00000
/ ea
Square D 2S46F TRANSFORMER DRY 1PH 2KVA 120X240V-16/32V,115 Degrees C,120 x 240VAC,16/32VAC,180 deg.C,Buck and Boost - Primary use is that the primary and secondary can be interconnected for use as an autotransformer,Buck and Boost Transformer,Painted Steel NEMA 3R,Sealed and Resin Filled,Wall,cULus Listed
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8073242360Den&ext=webp(360 Degree View URL)
- Brochure URL - ff938e5f56a38a38258a6e42087ff84ea17ee23c.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=3620.DWF(Computer~Aided [CAD|BIM] Model URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=3620.dxf(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_ZYSWBQ47IUVEC5HX.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_64BEHMVWSFI9XQJR.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11003_DVHEKX1S046YAG57.pdf(Tech Bulletin URL)
- Tech Bulletin URL - 11003_I5X80GJ2HWECKZ3T.pdf(Tech Bulletin URL)
- Tech Drawing URL - 11003_AUDCGJPXYL018FHB.zip(Tech Drawing URL)
- Tech Drawing URL - 11003_W6CJ7V9NOI4ZPSYX.zip(Tech Drawing URL)
- Video - https://www.youtube.com/embed/VjTpJIJURls(Video)
- Applications
- Features
BUCK AND BOOST - PRIMARY USE IS THAT THE PRIMARY AND SECONDARY CAN BE INTERCONNECTED FOR USE AS AN AUTOTRANSFORMER |
SEALED AND RESIN FILLED |
The equipment enclosure is designed and constructed for indoor or outdoor use and is NEMA 3R rated |
Carry the full load stated on the nameplate isolation transformer |
Can carry loads in excess of their nameplate rating |
Numerous voltage ratios and current ratings can be obtained by varying the connection between the two primary windings and the two secondary windings |
Increased ampacity depends upon the ratio and the voltage to which the transformer is subjected |
Economical, compact means of slightly adjusting an application's voltage up or down |
Gray color |
Powder coated painted steel enclosure |
Sealed and resin filled |
