Square D™

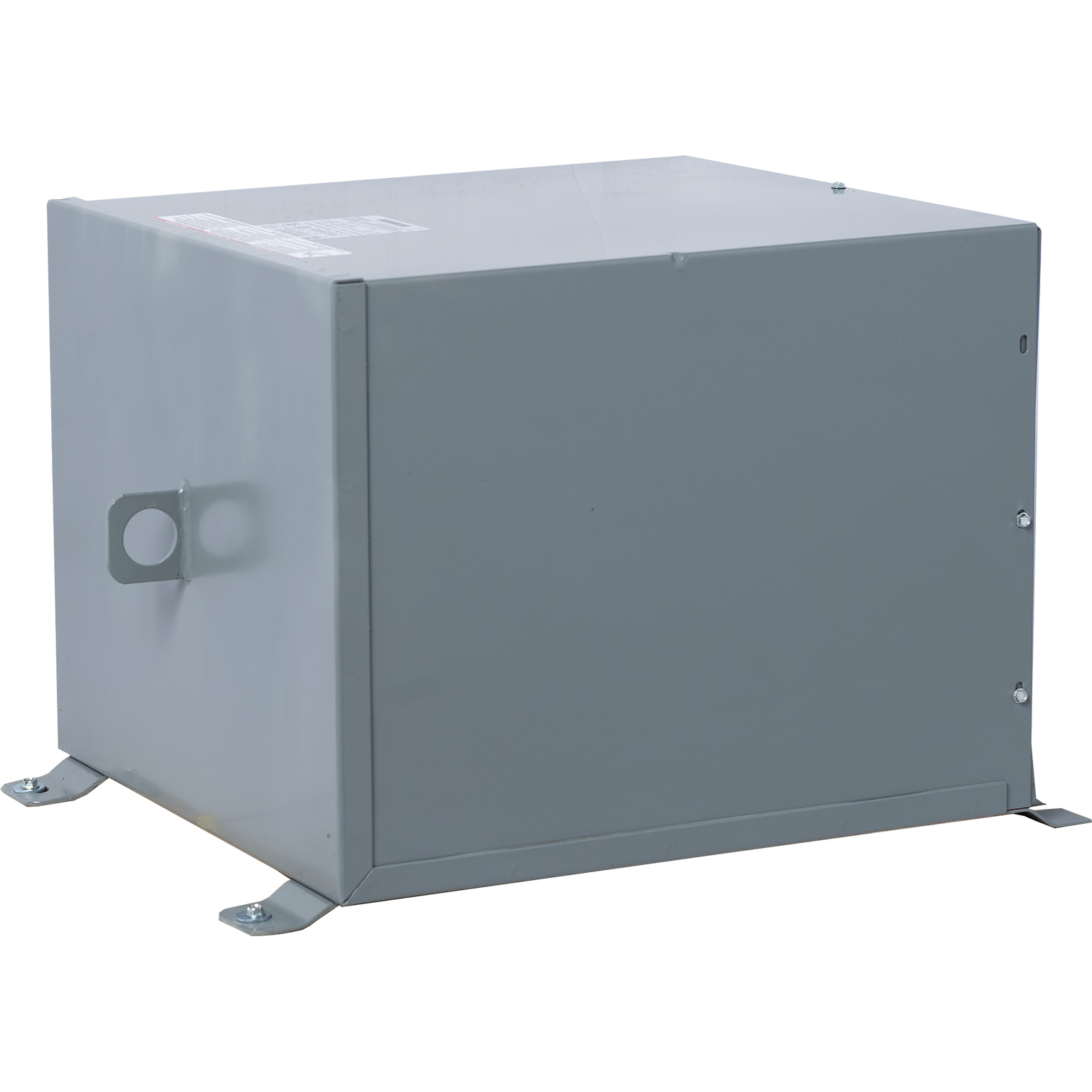

Square D™ 25S40F TRANSFORMER DRY 1PH 25KV
Custom_Product_Images_Illustration
Square D™
Square D™ 25S40F TRANSFORMER DRY 1PH 25KV
SKU95916
MFGR #25S40F
Your Cost: $8,435.92/ea
Square D 25S40F TRANSFORMER DRY 1PH 25KVA 480V-120/240V,1-Phase,115 Degrees C,120/240V60Hz,180 Degrees C,2-5 FCBN,25kVA,480V,General Purpose - Intended for power, heating and lighting applications,Painted Steel,Sealed,Wall,cULus Listed
Square D 25S40F TRANSFORMER DRY 1PH 25KVA 480V-120/240V,1-Phase,115 Degrees C,120/240V60Hz,180 Degrees C,2-5 FCBN,25kVA,480V,General Purpose - Intended for power, heating and lighting applications,Painted Steel,Sealed,Wall,cULus Listed
Alternate Catalog Number 25S40F Application GENERAL PURPOSE - INTENDED FOR POWER, HEATING AND LIGHTING APPLICATIONS ARRA Compliant N Buy American Compliant N Catalog Number 25S40F Country of Origin MX Currency USD Enclosure PAINTED STEEL EU RoHS Indicator Y Gross Volume Per Pack 4724.64 Gross Volume per Pack Metric 77422.68 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 384.9900 lb Gross Weight per Pack Metric 174.63 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504330020 Height 50.8000 in Height [Metric] 50.8000 cm Housing Material Sheet Steel Item Group 16277 KVA Rating 25KVA Length 34.2900 in Length [Metric] 34.2900 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=455559&lang=en-us Mounting Wall Mounting Type Wall Number Of Taps 2 Returnable Y Standard cULus Listed Temperature Rating 115 °C Type Dry Sealed UNSPSC 39121001 UPC 11 78590103939 UPC 12 785901039396 Warranty Description Contractual Warranty:18 months Width 38.1000 in Width [Metric] 38.1000 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Frequency Rating 60 Hz Phase 1 pH Power Rating 25 kVA Primary Voltage 480 VAC Secondary Voltage 120/240 VAC GENERAL PURPOSE - INTENDED FOR POWER, HEATING AND LIGHTING APPLICATIONS Painted finish Individual enclosures from 50 VA through 5 kVA allowing for the most compact solutions in the industry Large stock level of the product located in 2 Square D™ distribution centers, allowing customer to obtain product quickly Can be field connected for 3 ph applications, when codes limit size of transformers (other air handling space - not to exceed 50kVA) or where floor space is limited but wall space is abundant Can be configured into autotransformer open delta to convert 480 delta to 380 delta or 400 delta or can supply isolation solution from 480 delta to 415Y/240 for overseas equipment arriving in the United States - eliminating the need to wait for customer built transformer General purpose - intended for power, heating and lighting applications, these units can be used outdoors without accessories Resin-filled transformers
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 25S40F |
| Application | GENERAL PURPOSE - INTENDED FOR POWER, HEATING AND LIGHTING APPLICATIONS |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | 25S40F |
| Country of Origin | MX |
| Currency | USD |
| Enclosure | PAINTED STEEL |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 4724.64 |
| Gross Volume per Pack Metric | 77422.68 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 384.9900 lb |
| Gross Weight per Pack Metric | 174.63 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504330020 |
| Height | 50.8000 in |
| Height [Metric] | 50.8000 cm |
| Housing Material | Sheet Steel |
| Item Group | 16277 |
| KVA Rating | 25KVA |
| Length | 34.2900 in |
| Length [Metric] | 34.2900 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=455559&lang=en-us |
| Mounting | Wall |
| Mounting Type | Wall |
| Number Of Taps | 2 |
| Returnable | Y |
| Standard | cULus Listed |
| Temperature Rating | 115 °C |
| Type | Dry Sealed |
| UNSPSC | 39121001 |
| UPC 11 | 78590103939 |
| UPC 12 | 785901039396 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 38.1000 in |
| Width [Metric] | 38.1000 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Frequency Rating | 60 Hz |
| Phase | 1 pH |
| Power Rating | 25 kVA |
| Primary Voltage | 480 VAC |
| Secondary Voltage | 120/240 VAC |
| GENERAL PURPOSE - INTENDED FOR POWER, HEATING AND LIGHTING APPLICATIONS |
| Painted finish |
| Individual enclosures from 50 VA through 5 kVA allowing for the most compact solutions in the industry |
| Large stock level of the product located in 2 Square D™ distribution centers, allowing customer to obtain product quickly |
| Can be field connected for 3 ph applications, when codes limit size of transformers (other air handling space - not to exceed 50kVA) or where floor space is limited but wall space is abundant |
| Can be configured into autotransformer open delta to convert 480 delta to 380 delta or 400 delta or can supply isolation solution from 480 delta to 415Y/240 for overseas equipment arriving in the United States - eliminating the need to wait for customer built transformer |
| General purpose - intended for power, heating and lighting applications, these units can be used outdoors without accessories |
| Resin-filled transformers |
