Square D™ 2511KG11B MANUAL SWITCH 600VAC
AC Motor Starting Switches
PDW~6429345
MFG #: 2511KG11B
Square D™
431.66000
/ ea
Schneider Electric,MANUAL SWITCH 600VAC K +OPTIONS,1 phase,1.5 hp 230 V DC-1 hp 90 V DC-2 hp 115 V AC-2 hp 230 V AC-2 hp 115 V DC-3 hp 575 V AC-3 hp 460 V AC,230 V DC-600 V AC,30 A,Duplex Unit Manual Switch,K,NEMA 1 painted sheet steel standard size
- 18 months(WEB WARRANTY URL)
- Brochure URL - 1dd055d407a404cf0573a71104eb1e47aed1cd07.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - 9c7c0ef9de26376b783d19c2c6559efaf81722b8.pdf(Computer~Aided [CAD|BIM] Model URL)
- Spec Sheet URL - 71a109545d4fcaba6e8db87beac92e992fcecb2f.pdf(Spec Sheet URL)
- WEB CATALOG URL - Schneider_Electric_2510FK1_Catalog.pdf(WEB CATALOG URL)
- WEB ROHS COMPLIANCE URL - Schneider_Electric_2511KG11B_RoHS.pdf(WEB ROHS COMPLIANCE URL)
- WEB SELLER HOME PAGE URL - us(WEB SELLER HOME PAGE URL)
- WEB TECH DRAWING URL - 79350227e32b955e707bd8085dd9b38db4726419(WEB TECH DRAWING URL)
- Features
| RED INDICATOR, 230 V |

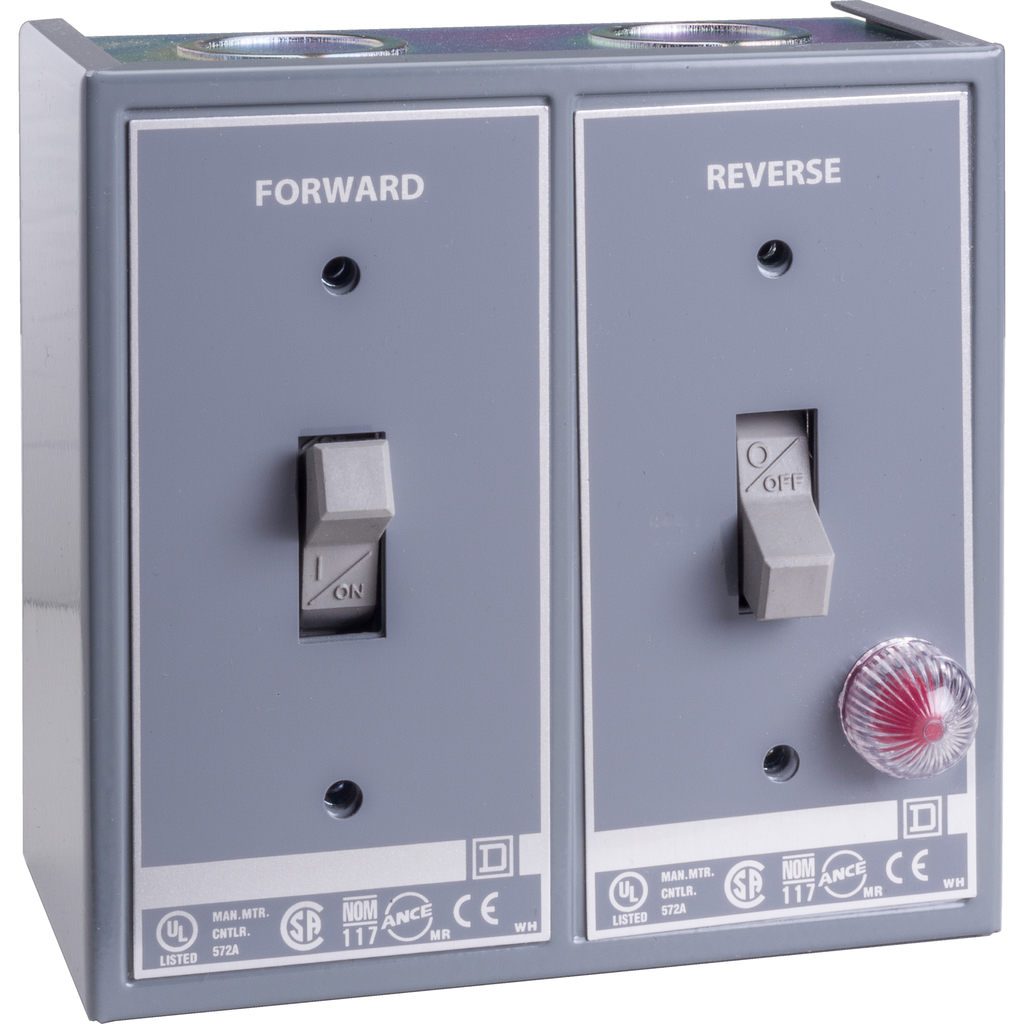

| Type K reversing manual switches provide a compact means of starting, stopping and reversing AC motors where overload protection is not required or is provided separately |
| Two switches are used, one to connect the motor for forward rotation and one for reverse |
| Two switches are employed to give ON-OFF control in each speed |
| 2 hp at 230 VAC, 2 hp at 115 VAC, 3 hp at 460 VAC, 3 hp at 575 V AC, 1 hp at 90 VDC, 2 hp at 115 VDC, 1-1/2 hp at 230 VDC |
| 30 A at 600 VAC, 30 A at 24 VDC |
