Square D™

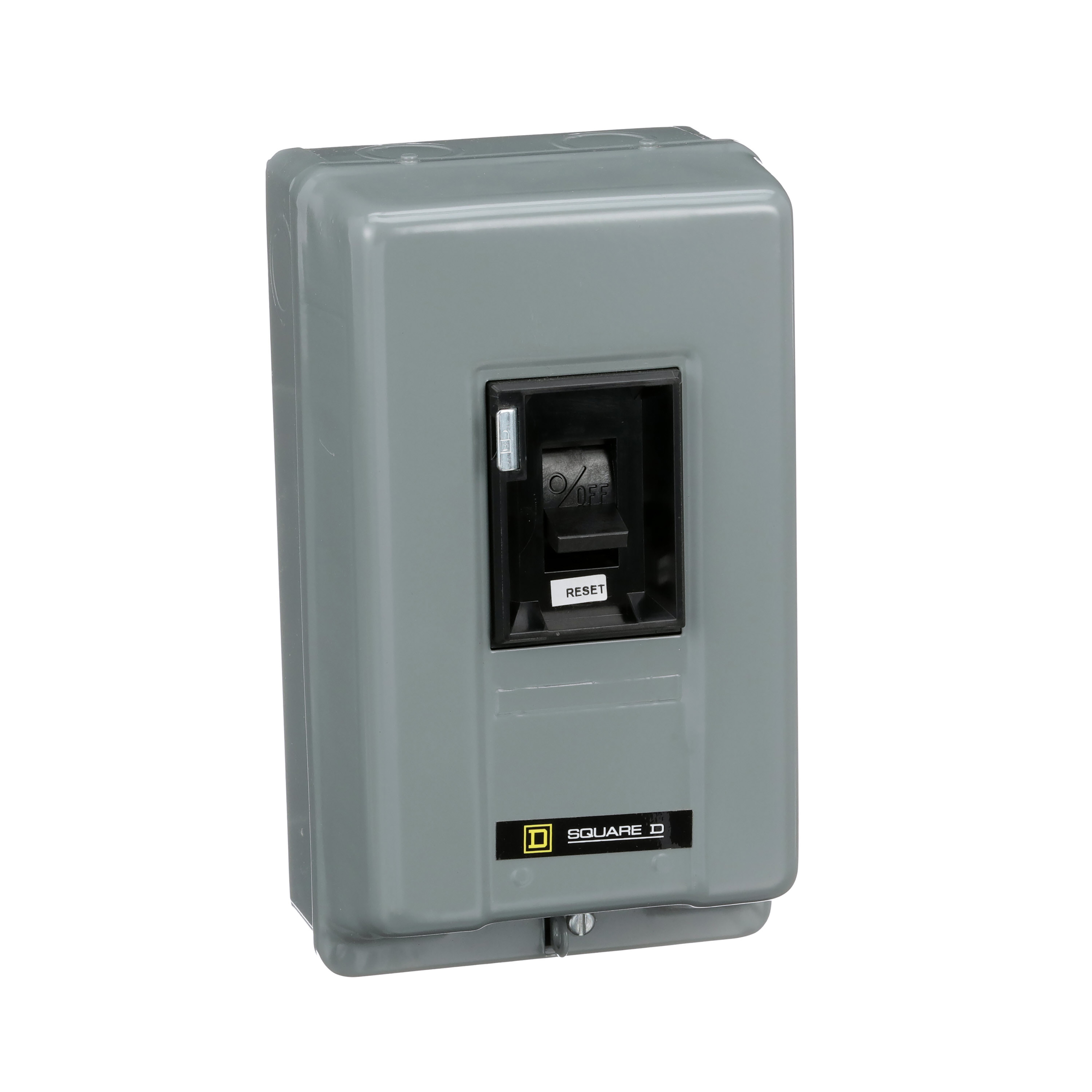

Square D™ 2510TBG2 2510T Type T Non-Reversing Manual Starter, 3 Poles, NEMA 1 Enclosure
Custom_Product_Images_Illustration
Square D™
Square D™ 2510TBG2 2510T Type T Non-Reversing Manual Starter, 3 Poles, NEMA 1 Enclosure
SKU34535
MFGR #2510TBG2
Your Cost: $309.13/ea
List: Square D 2510TBG2 MANUAL STARTER 600VAC,18A,3 hp 200...230 V AC 3 phases-5 hp 380...575 V AC 3 phases,3,M-0,3-Phase,600 V AC,General Purpose (Indoor),Manual Starter,NEMA 1 painted sheet steel,Pressure Wire Clamp,T,Thermal - Melting Alloy,UL Listed - CSA C
Square D 2510TBG2 MANUAL STARTER 600VAC,18A,3 hp 200...230 V AC 3 phases-5 hp 380...575 V AC 3 phases,3,M-0,3-Phase,600 V AC,General Purpose (Indoor),Manual Starter,NEMA 1 painted sheet steel,Pressure Wire Clamp,T,Thermal - Melting Alloy,UL Listed - CSA C
Action Non-Reversing Alternate Catalog Number 2510TBG2 Amperage Rating 18 A ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 2510TBG2 Connection PRESSURE WIRE CLAMP Connection Type Pressure Wire Clamp Control Type Toggle Country of Origin MX Currency USD Depth 4.13 in Dimensions 8.63 in H x 5 in W x 4.13 in D Enclosure Type NEMA 1/3/M-0 EU RoHS Indicator Y Gross Volume Per Pack 243.00 Gross Volume per Pack Metric 3982.04 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 4.2300 lb Gross Weight per Pack Metric 1.92 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536504000 Height 11.4300 in Height [Metric] 11.4300 cm Item Group 21103 Length 22.8600 in Length [Metric] 22.8600 cm Manufacturer Schneider Electric Material Sheet Steel Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=506429&lang=en-us Motor Power 5 hp Number Of Poles 3 Overload Relay Thermal Melting Alloy 3 Phase 3 pH Reset Type Manual Returnable Y Series 2510T Size 4.13 IN,5 IN,8.63 IN in Standard UL LISTED FILE E42243 CCN NLRV-CSA LR60905 CLASS 3211 05 Stock Status NONSTOCK Sub Brand T Substitute Product Catalog Number 9999MP1 Type Type T Integral Horsepower Surface Mount UNSPSC 39121521 UPC 11 78590179561 UPC 12 785901795612 Voltage Rating 600 VAC Warranty Description Contractual Warranty:18 months Width 15.2400 in Width [Metric] 15.2400 cm NO INDICATOR 3 hp 200/230 VAC, 5 hp 380 VAC power rating Provide convenient ON/OFF operation of small 1-phase, polyphase or DC motors Typical applications include small machine tools, pumps, fans and conveyors Without auxiliary contact composition
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Action | Non-Reversing |
| Alternate Catalog Number | 2510TBG2 |
| Amperage Rating | 18 A |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 2510TBG2 |
| Connection | PRESSURE WIRE CLAMP |
| Connection Type | Pressure Wire Clamp |
| Control Type | Toggle |
| Country of Origin | MX |
| Currency | USD |
| Depth | 4.13 in |
| Dimensions | 8.63 in H x 5 in W x 4.13 in D |
| Enclosure Type | NEMA 1/3/M-0 |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 243.00 |
| Gross Volume per Pack Metric | 3982.04 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 4.2300 lb |
| Gross Weight per Pack Metric | 1.92 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536504000 |
| Height | 11.4300 in |
| Height [Metric] | 11.4300 cm |
| Item Group | 21103 |
| Length | 22.8600 in |
| Length [Metric] | 22.8600 cm |
| Manufacturer | Schneider Electric |
| Material | Sheet Steel |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=506429&lang=en-us |
| Motor Power | 5 hp |
| Number Of Poles | 3 |
| Overload Relay | Thermal Melting Alloy 3 |
| Phase | 3 pH |
| Reset Type | Manual |
| Returnable | Y |
| Series | 2510T |
| Size | 4.13 IN,5 IN,8.63 IN in |
| Standard | UL LISTED FILE E42243 CCN NLRV-CSA LR60905 CLASS 3211 05 |
| Stock Status | NONSTOCK |
| Sub Brand | T |
| Substitute Product Catalog Number | 9999MP1 |
| Type | Type T Integral Horsepower Surface Mount |
| UNSPSC | 39121521 |
| UPC 11 | 78590179561 |
| UPC 12 | 785901795612 |
| Voltage Rating | 600 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 15.2400 in |
| Width [Metric] | 15.2400 cm |
| NO INDICATOR |
| 3 hp 200/230 VAC, 5 hp 380 VAC power rating |
| Provide convenient ON/OFF operation of small 1-phase, polyphase or DC motors |
| Typical applications include small machine tools, pumps, fans and conveyors |
| Without auxiliary contact composition |
