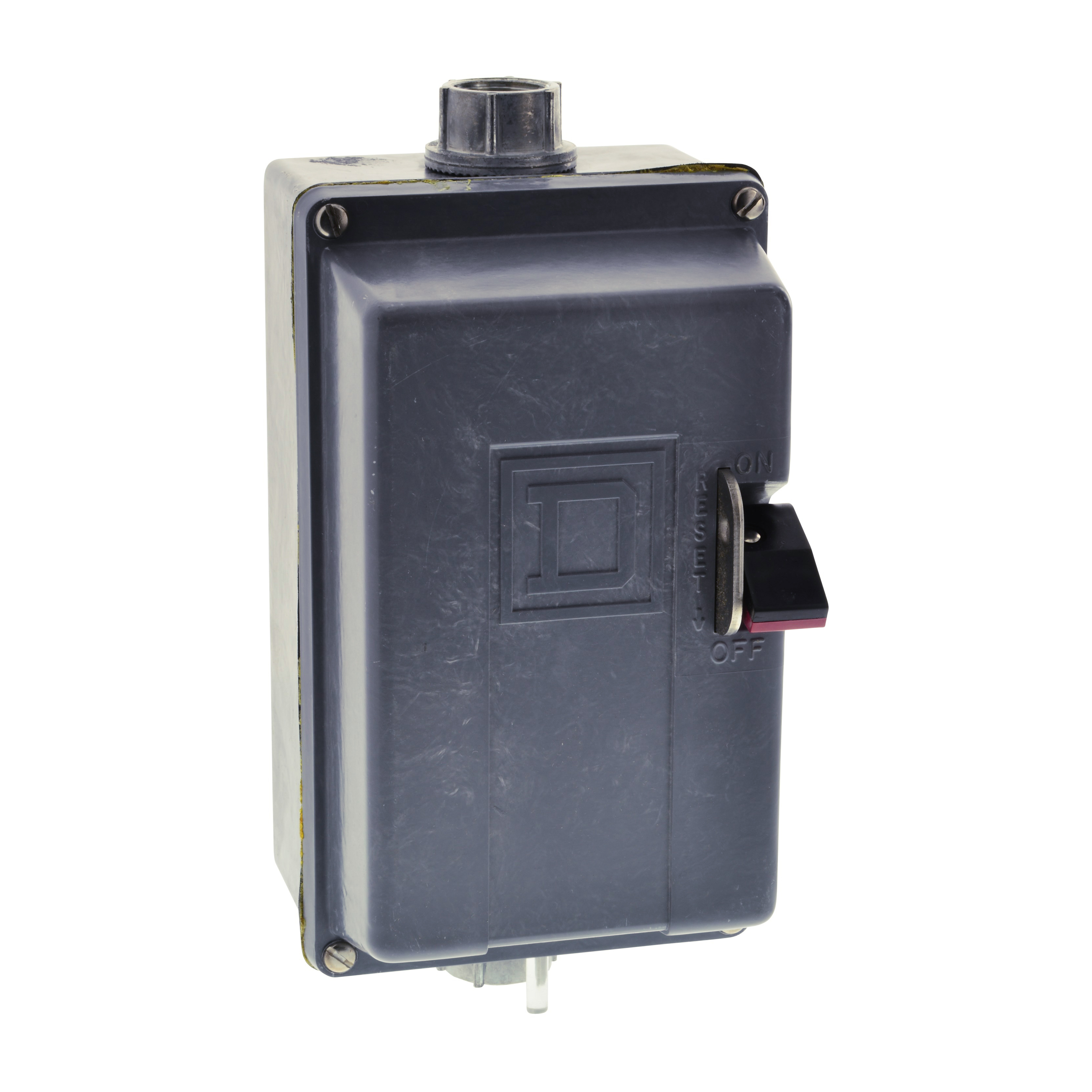

Square D™ 2510MCW1 Type M Non-Reversing Manual Starter, 2 Poles, NEMA 4/4X Enclosure
Custom_Product_Images_Illustration
Square D™ 2510MCW1 Type M Non-Reversing Manual Starter, 2 Poles, NEMA 4/4X Enclosure
SKU278716
MFGR #2510MCW1
$/ea
Square D 2510MCW1 MANUAL STARTER 230VAC,1-Phase,27A,2HP115VAC - 3HP230VAC,2P,600VAC/250VDC,Glass Polyester - Water tight, Dust tight and Corrosion Resistant,M,M-1,NEMA 4/4X,Non-Reversing Manual Starter,Pressure Wire Clamp,Thermal - Melting Alloy,UL List
Square D 2510MCW1 MANUAL STARTER 230VAC,1-Phase,27A,2HP115VAC - 3HP230VAC,2P,600VAC/250VDC,Glass Polyester - Water tight, Dust tight and Corrosion Resistant,M,M-1,NEMA 4/4X,Non-Reversing Manual Starter,Pressure Wire Clamp,Thermal - Melting Alloy,UL List
Alternate Catalog Number 2510MCW1 Amperage Rating 27 A ARRA Compliant N Buy American Compliant N Catalog Number 2510MCW1 Connection PRESSURE WIRE CLAMP Connection Type Pressure Wire Clamp Control Type Pushbutton Country of Origin MX Currency USD Depth 6.41 in Dimensions 12.13 in H x 6.5 in W x 6.41 in D Disconnect Type push-button EU RoHS Indicator Y Gross Weight Per Pack 0.0892 lb Gross Weight per Pack Metric 8.92 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536504000 Height 16.5100 in Height [Metric] 16.5100 cm Item Group 21103 Length 33.0200 in Length [Metric] 33.0200 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=506355&lang=en-us Motor Power 3 hp at 230 VAC NEMA Frame Size M-1 Number Of Poles 2 Overload Relay Thermal Phase 1 pH Reset Type THERMAL - MELTING ALLOY Returnable N Size M-1 in Standard UL LISTED - CSA CERTIFIED Standards ARRA, Buy American Act Compliant, CE Certified, CSA File No. LR60905 Class 3211-05, UL File E42243 CCN NLRV Sub Brand M Substitute Product Catalog Number 9999SX11 UNSPSC 39121521 UPC 11 78590145594 UPC 12 785901455943 Voltage Rating 600 VAC/250 VDC VAC Warranty Description Contractual Warranty:18 months Width 21.5900 in Width [Metric] 21.5900 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Enclosure Type NEMA 4/4X Type Type M Integral Horsepower Non-Reversing WITHOUT Non-reversing motor starter type 14 to 8 AWG copper wire Melting alloy overload relay
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 2510MCW1 |
| Amperage Rating | 27 A |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | 2510MCW1 |
| Connection | PRESSURE WIRE CLAMP |
| Connection Type | Pressure Wire Clamp |
| Control Type | Pushbutton |
| Country of Origin | MX |
| Currency | USD |
| Depth | 6.41 in |
| Dimensions | 12.13 in H x 6.5 in W x 6.41 in D |
| Disconnect Type | push-button |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.0892 lb |
| Gross Weight per Pack Metric | 8.92 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536504000 |
| Height | 16.5100 in |
| Height [Metric] | 16.5100 cm |
| Item Group | 21103 |
| Length | 33.0200 in |
| Length [Metric] | 33.0200 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=506355&lang=en-us |
| Motor Power | 3 hp at 230 VAC |
| NEMA Frame Size | M-1 |
| Number Of Poles | 2 |
| Overload Relay | Thermal |
| Phase | 1 pH |
| Reset Type | THERMAL - MELTING ALLOY |
| Returnable | N |
| Size | M-1 in |
| Standard | UL LISTED - CSA CERTIFIED |
| Standards | ARRA, Buy American Act Compliant, CE Certified, CSA File No. LR60905 Class 3211-05, UL File E42243 CCN NLRV |
| Sub Brand | M |
| Substitute Product Catalog Number | 9999SX11 |
| UNSPSC | 39121521 |
| UPC 11 | 78590145594 |
| UPC 12 | 785901455943 |
| Voltage Rating | 600 VAC/250 VDC VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 21.5900 in |
| Width [Metric] | 21.5900 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Enclosure Type | NEMA 4/4X |
| Type | Type M Integral Horsepower Non-Reversing |
| WITHOUT |
| Non-reversing motor starter type |
| 14 to 8 AWG copper wire |
| Melting alloy overload relay |
