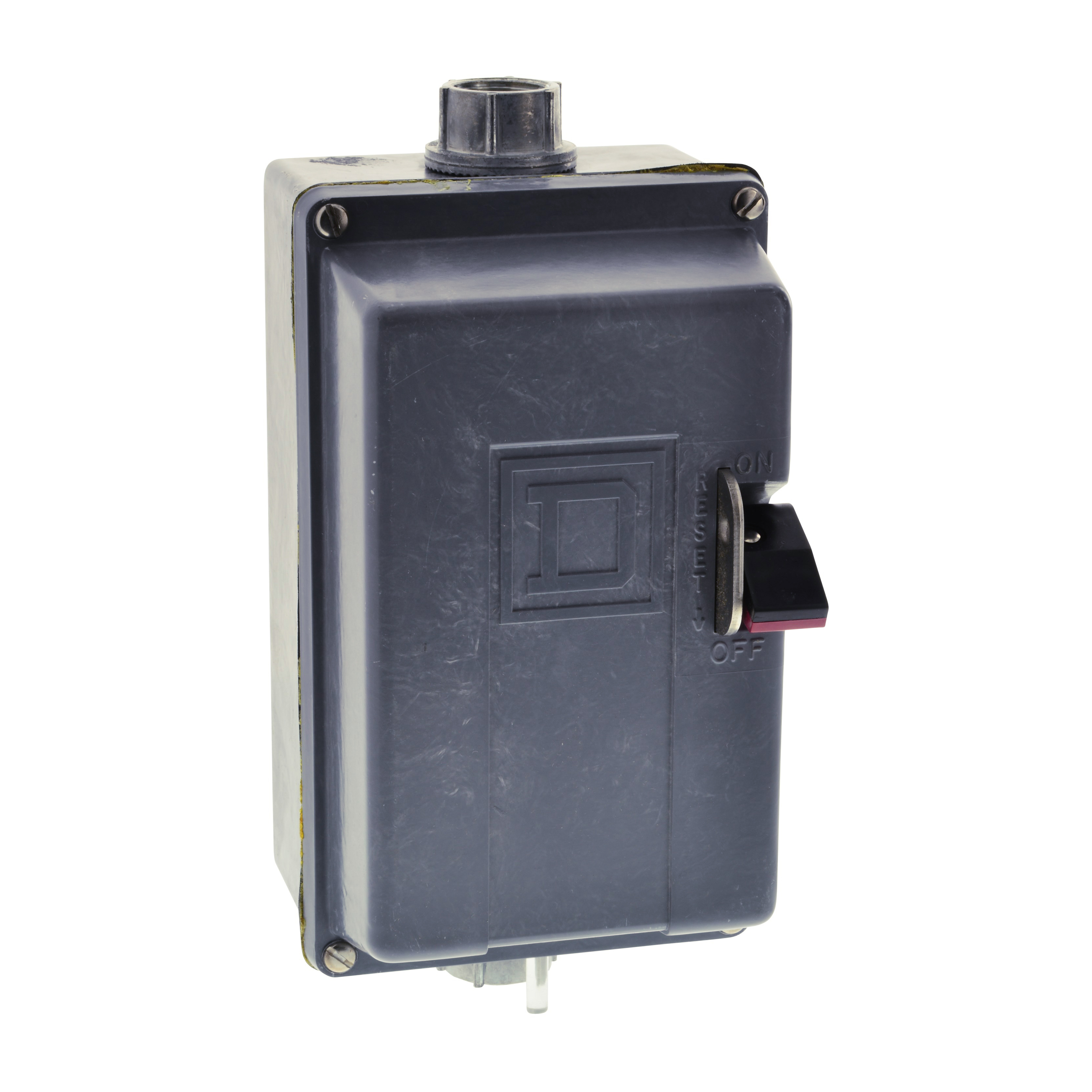

Square D™ 2510MBW1 MANUAL STARTER 230VAC
SKU298967
MFGR #2510MBW1
Your Cost: $708.97/ea
List: Square D 2510MBW1 MANUAL STARTER 230VAC,1-Phase,18A,1HP115VAC - 2HP230VAC,2P,600VAC/250VDC,Glass Polyester - Water tight, Dust tight and Corrosion Resistant,M,M-0,NEMA 4/4X,Non-Reversing Manual Starter,Pressure Wire Clamp,Thermal - Melting Alloy,UL List
Square D 2510MBW1 MANUAL STARTER 230VAC,1-Phase,18A,1HP115VAC - 2HP230VAC,2P,600VAC/250VDC,Glass Polyester - Water tight, Dust tight and Corrosion Resistant,M,M-0,NEMA 4/4X,Non-Reversing Manual Starter,Pressure Wire Clamp,Thermal - Melting Alloy,UL List
Alternate Catalog Number 2510MBW1 Amperage Rating 18 A ARRA Compliant N Buy American Compliant N Catalog Number 2510MBW1 Connection PRESSURE WIRE CLAMP Connection Type Pressure Wire Clamp Control Type Pushbutton Switch Country of Origin US Currency USD Depth 5.78 in Dimensions 5.13 in W x 5.78 in D x 10.34 in H EU RoHS Indicator Y Gross Volume Per Pack 472.87 Gross Volume per Pack Metric 7748.95 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 5.6700 lb Gross Weight per Pack Metric 2.57 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536504000 Height 15.4940 in Height [Metric] 15.4940 cm Item Group 21103 Length 28.9560 in Length [Metric] 28.9560 cm Material Glass Polyester Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=506219&lang=en-us Motor Power 1 hp at 115 VAC/2 hp at 230 VAC Number Of Poles 2 Operating Temperature 0 to 40 deg C Ambient Overload Relay Thermal Melting Alloy Phase 1 pH Reset Type Thermal Melting Alloy Returnable Y Series 2510 Size M-0 in Standard UL LISTED - CSA CERTIFIED Sub Brand M Substitute Product Catalog Number B0.44 UNSPSC 39121521 UPC 11 78590182081 UPC 12 785901820819 Voltage Rating 600 VAC/250 VDC VAC Warranty Description Contractual Warranty:18 months Width 17.2720 in Width [Metric] 17.2720 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Enclosure Type NEMA 4/4X Type TYPE M WITHOUT Inexpensive motor control where low voltage protection is not required Reliable melting alloy thermal units Simple operation Melting alloy thermal overload relays have provisions for one Type B thermal unit for single phase starters and three NEMA M-0 NEMA type 4 and 4X water tight, dust tight brushed stainless steel enclosure
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 2510MBW1 |
| Amperage Rating | 18 A |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | 2510MBW1 |
| Connection | PRESSURE WIRE CLAMP |
| Connection Type | Pressure Wire Clamp |
| Control Type | Pushbutton Switch |
| Country of Origin | US |
| Currency | USD |
| Depth | 5.78 in |
| Dimensions | 5.13 in W x 5.78 in D x 10.34 in H |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 472.87 |
| Gross Volume per Pack Metric | 7748.95 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 5.6700 lb |
| Gross Weight per Pack Metric | 2.57 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536504000 |
| Height | 15.4940 in |
| Height [Metric] | 15.4940 cm |
| Item Group | 21103 |
| Length | 28.9560 in |
| Length [Metric] | 28.9560 cm |
| Material | Glass Polyester |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=506219&lang=en-us |
| Motor Power | 1 hp at 115 VAC/2 hp at 230 VAC |
| Number Of Poles | 2 |
| Operating Temperature | 0 to 40 deg C Ambient |
| Overload Relay | Thermal Melting Alloy |
| Phase | 1 pH |
| Reset Type | Thermal Melting Alloy |
| Returnable | Y |
| Series | 2510 |
| Size | M-0 in |
| Standard | UL LISTED - CSA CERTIFIED |
| Sub Brand | M |
| Substitute Product Catalog Number | B0.44 |
| UNSPSC | 39121521 |
| UPC 11 | 78590182081 |
| UPC 12 | 785901820819 |
| Voltage Rating | 600 VAC/250 VDC VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 17.2720 in |
| Width [Metric] | 17.2720 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Enclosure Type | NEMA 4/4X |
| Type | TYPE M |
| WITHOUT |
| Inexpensive motor control where low voltage protection is not required |
| Reliable melting alloy thermal units |
| Simple operation |
| Melting alloy thermal overload relays have provisions for one Type B thermal unit for single phase starters and three |
| NEMA M-0 |
| NEMA type 4 and 4X water tight, dust tight brushed stainless steel enclosure |
