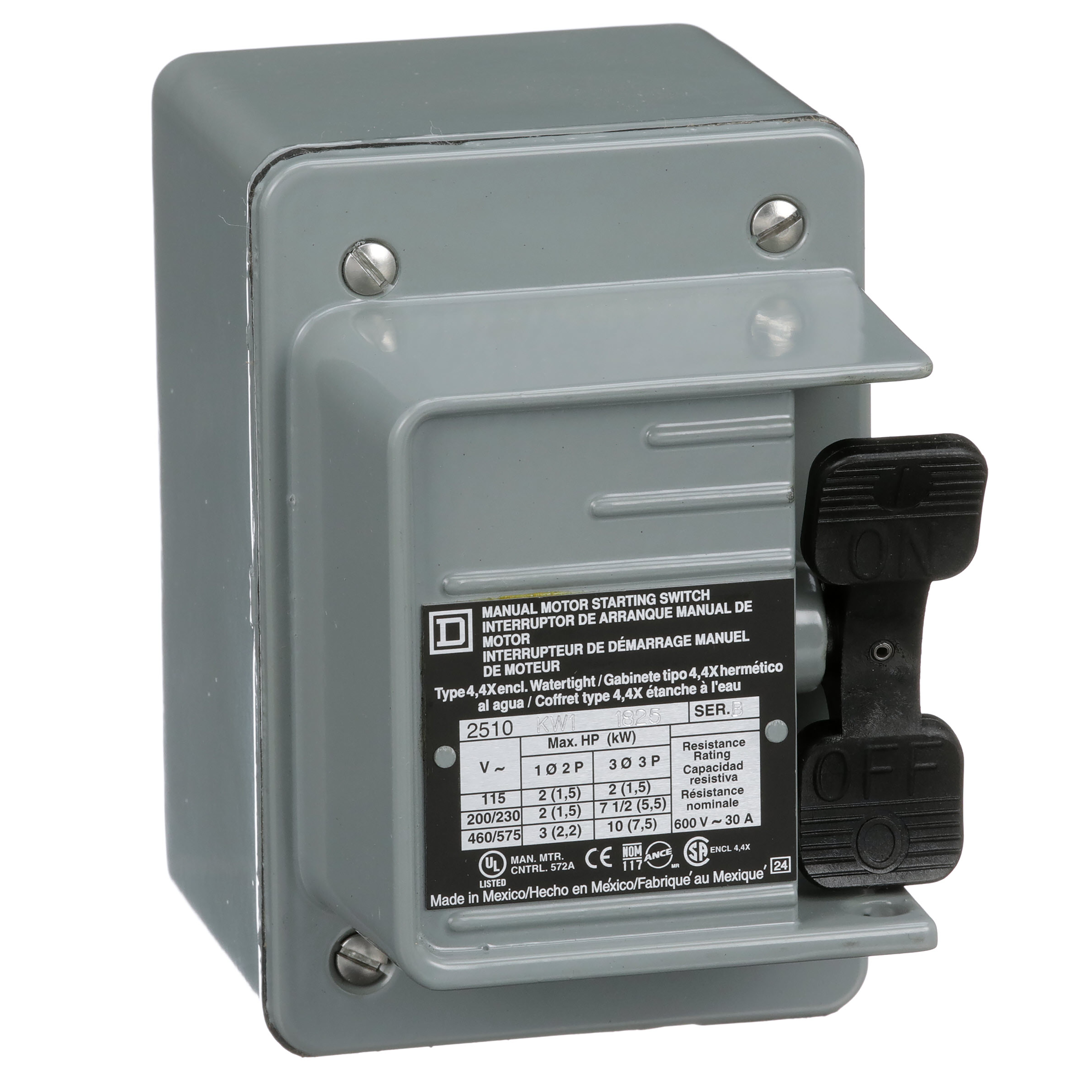

Square D™ 2510KW6 Type K Non-Reversing Manual Switch, 3 Poles, NEMA 4 Enclosure
Manual Starters
161235
MFG #: 2510KW6
Square D™
416.16000
/ ea
Square D 2510KW6 MANUAL SWITCH 600VAC K+OPTIONS,0.75 NPT (bottom) Screw Clamp,2HP115VAC - 7.5HP230VAC - 15HP460VAC - 20HP575VAC,3-Phase,30A,3P,600VAC/230VDC,K,NEMA 4,Non-Reversing Manual Switch,Provides manual ON/OFF control of single or three phase A
- Brochure URL - files?p_enDocType=Brochure&p_File_Name=Manual Motor Switch.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=25100020.dwg(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - files?p_File_Name=65013-313-03_01.pdf(Install Instructions 1 URL)
- Spec Sheet URL - c5c17e7411ac7603b452b8a4c8c0642bac364649.pdf(Spec Sheet URL)
- WEB CATALOG URL - Square_D_2510FG6P_Catalog.pdf(WEB CATALOG URL)
- WEB INSTALL INSTR URL - Square_D_2510KF2_Installation.pdf(WEB INSTALL INSTR URL)
- WEB SELLER HOME PAGE URL - us(WEB SELLER HOME PAGE URL)
- WEB TECH DRAWING URL - 922c09442e94d7f793f529eeab630a15e58dd0ed(WEB TECH DRAWING URL)
- Applications
- Features
| PROVIDES MANUAL ON/OFF CONTROL OF SINGLE OR THREE PHASE AC MOTORS WHERE OVERLOAD PROTECTION IS NOT REQUIRED OR PROVIDED SEPARATELY |
| NO INDICATOR |
| 14 to 10 AWG (copper) gauge |
| 0.75 in NPT bottom cable entry |
| 14 to 10 AWG copper wire |
| 1, 1.5, 2, 7.5, 15 and 20 hp power rating |
