Square D™

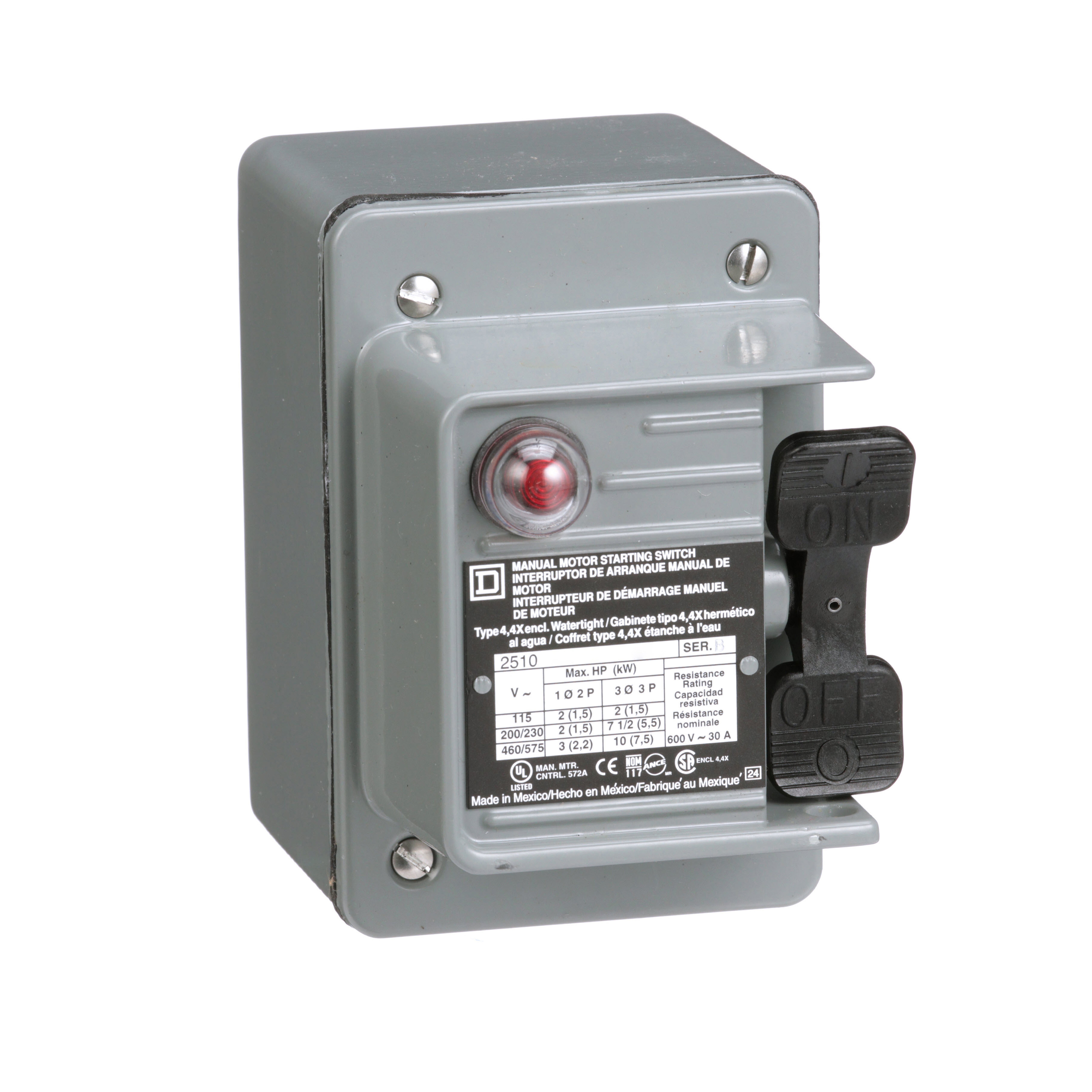

Square D™ 2510KW1A MANUAL SWITCH 600VAC K
Custom_Product_Images_Illustration
Square D™
Square D™ 2510KW1A MANUAL SWITCH 600VAC K
SKU96374
MFGR #2510KW1A
Your Cost: $421.46/ea
List: Square D 2510KW1A MANUAL SWITCH 600VAC K+OPTIONS,0.75 NPT (bottom) Screw Clamp,1-Phase,2HP115/230VAC - 3HP460/575VAC,2P,30A,600VAC/230VDC,K,NEMA 4,Non-Reversing Manual Switch,Provides manual ON/OFF control of single or three phase AC motors where overlo
Square D 2510KW1A MANUAL SWITCH 600VAC K+OPTIONS,0.75 NPT (bottom) Screw Clamp,1-Phase,2HP115/230VAC - 3HP460/575VAC,2P,30A,600VAC/230VDC,K,NEMA 4,Non-Reversing Manual Switch,Provides manual ON/OFF control of single or three phase AC motors where overlo
Action Non-Reversing Actuator Toggle Alternate Catalog Number 2510KW1A Application PROVIDES MANUAL ON/OFF CONTROL OF SINGLE OR THREE PHASE AC MOTORS WHERE OVERLOAD PROTECTION IS NOT REQUIRED OR PROVIDED SEPARATELY ARRA Compliant N Buy American Compliant N Catalog Number 2510KW1A Connection Screw Clamp Country of Origin US Currency USD Current Rating 30 A Depth 4.56 in Dimensions 3 in W x 4.56 in D x 4.38 in H Enclosure NEMA 4 Environmental Conditions Oiltight and Dust Tight EU RoHS Indicator Y Gross Volume Per Pack 93.91 Gross Volume per Pack Metric 1538.84 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 2.9800 lb Gross Weight per Pack Metric 1.35 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536504000 Height 9.6520 in Height [Metric] 9.6520 cm Indicator Red Item Group 21102 Length 13.7160 in Length [Metric] 13.7160 cm Number Of Phases 1 Number Of Poles 2 Returnable Y Series 2510 Size 3 IN,4.38 IN,4.56 IN in Standard UL LISTED - CSA CERTIFIED - CE MARKED Sub Brand K Type Type K UNSPSC 39121521 UPC 11 78590107774 UPC 12 785901077749 Warranty Description Contractual Warranty:18 months Width 12.1920 in Width [Metric] 12.1920 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 30 A Power Rating 2 hp at 115/230 VAC/3 hp at 460/575 VAC Voltage Rating 600 VAC/230 VDC VAC//VDC PROVIDES MANUAL ON/OFF CONTROL OF SINGLE OR THREE PHASE AC MOTORS WHERE OVERLOAD PROTECTION IS NOT REQUIRED OR PROVIDED SEPARATELY RED INDICATOR, 115 V Suitable for use with 3-ph AC motors rated up to 20 hp Type K reversing manual switches provide a compact means of starting, stopping and reversing AC motors where overload protection is not required or is provided separately Type K two-speed manual switches may be used with separate winding 3 or 1 ph AC motors where overload protection is not required or is provided separately Suitable for use with 3-ph squirrel cage motors and for single-phase motors which can be reversed by reconnecting motor leads Two switches are used, one to connect the motor for forward rotation and one for reverse Two switches are employed to give "on-off" control in each speed Economical on/off solution Simple design Easy to install 3/4 NPT bottom screw clamp
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Action | Non-Reversing |
| Actuator | Toggle |
| Alternate Catalog Number | 2510KW1A |
| Application | PROVIDES MANUAL ON/OFF CONTROL OF SINGLE OR THREE PHASE AC MOTORS WHERE OVERLOAD PROTECTION IS NOT REQUIRED OR PROVIDED SEPARATELY |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | 2510KW1A |
| Connection | Screw Clamp |
| Country of Origin | US |
| Currency | USD |
| Current Rating | 30 A |
| Depth | 4.56 in |
| Dimensions | 3 in W x 4.56 in D x 4.38 in H |
| Enclosure | NEMA 4 |
| Environmental Conditions | Oiltight and Dust Tight |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 93.91 |
| Gross Volume per Pack Metric | 1538.84 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 2.9800 lb |
| Gross Weight per Pack Metric | 1.35 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536504000 |
| Height | 9.6520 in |
| Height [Metric] | 9.6520 cm |
| Indicator | Red |
| Item Group | 21102 |
| Length | 13.7160 in |
| Length [Metric] | 13.7160 cm |
| Number Of Phases | 1 |
| Number Of Poles | 2 |
| Returnable | Y |
| Series | 2510 |
| Size | 3 IN,4.38 IN,4.56 IN in |
| Standard | UL LISTED - CSA CERTIFIED - CE MARKED |
| Sub Brand | K |
| Type | Type K |
| UNSPSC | 39121521 |
| UPC 11 | 78590107774 |
| UPC 12 | 785901077749 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 12.1920 in |
| Width [Metric] | 12.1920 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 30 A |
| Power Rating | 2 hp at 115/230 VAC/3 hp at 460/575 VAC |
| Voltage Rating | 600 VAC/230 VDC VAC//VDC |
| PROVIDES MANUAL ON/OFF CONTROL OF SINGLE OR THREE PHASE AC MOTORS WHERE OVERLOAD PROTECTION IS NOT REQUIRED OR PROVIDED SEPARATELY |
| RED INDICATOR, 115 V |
| Suitable for use with 3-ph AC motors rated up to 20 hp |
| Type K reversing manual switches provide a compact means of starting, stopping and reversing AC motors where overload protection is not required or is provided separately |
| Type K two-speed manual switches may be used with separate winding 3 or 1 ph AC motors where overload protection is not required or is provided separately |
| Suitable for use with 3-ph squirrel cage motors and for single-phase motors which can be reversed by reconnecting motor leads |
| Two switches are used, one to connect the motor for forward rotation and one for reverse |
| Two switches are employed to give "on-off" control in each speed |
| Economical on/off solution |
| Simple design |
| Easy to install |
| 3/4 NPT bottom screw clamp |
