Square D™

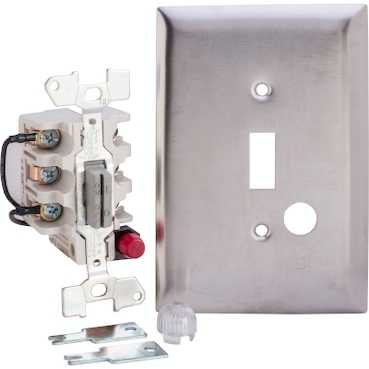

Square D™ 2510KSJ4B MANUAL SWITCH 600VAC
Custom_Product_Images_Illustration
Square D™
Square D™ 2510KSJ4B MANUAL SWITCH 600VAC
SKUPDW~6429250
MFGR #2510KSJ4B
Your Cost: $286.83/ea
Schneider Electric,MANUAL SWITCH 600VAC K +OPTIONS,1.5 hp 230 V DC-7.5 hp 230 V AC-2 hp 115 V AC-2 hp 115 V DC-10 hp 575 V AC-1 hp 90 V DC-10 hp 460 V AC,230 V DC-600 V AC,3 phases,30 A,K,Single Unit Manual Switch,not rated (flush plate) stainless steel oversized
Schneider Electric,MANUAL SWITCH 600VAC K +OPTIONS,1.5 hp 230 V DC-7.5 hp 230 V AC-2 hp 115 V AC-2 hp 115 V DC-10 hp 575 V AC-1 hp 90 V DC-10 hp 460 V AC,230 V DC-600 V AC,3 phases,30 A,K,Single Unit Manual Switch,not rated (flush plate) stainless steel oversized
Action ON/OFF Actuator Key Operated Catalog Number 2510KSJ4B Connection Screw Clamp Country of Origin MX Dimensions 5-1/4 in H x 3-1/2 in W x 2-1/2 in D Enclosure NEMA 1 Gross Weight Per Pack 0.5000 lb Indicator Red Pilot Light Item Group 21102 Material Stainless Steel Mounting Flush Number Of Poles 3 Returnable N Standards ARRA CompliantBuy American Act CompliantREACH CompliantCE CertifiedCSA File No. LR25490 Class 3211 05UL File No. E42243 CCN NLRVECCN: EAR99 Type 3-Phase Type K Non-Reversing Single Unit UNSPSC 39121521 UPC 11 78590112154 UPC 12 785901121541 Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 30 A Power Rating 1 hp, 1-1/2 hp, 2 hp, 7-1/2 hp, 10 hp Voltage Rating 600 VAC, 230 VDC RED INDICATOR, 208...277 V Two switches are used, one to connect the motor for forward rotation and one for reverse Two switches are employed to give ON-OFF control in each speed 2 hp at 115 VAC, 7-1/2 hp at 230 VAC, 10 hp at 460/575 VAC, 1 hp at 90 VDC, 2 hp at 115 VDC, 1-1/2 hp at 230 VDC 30 A at 600 VAC, 30 A at 24 VDC
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Action | ON/OFF |
| Actuator | Key Operated |
| Catalog Number | 2510KSJ4B |
| Connection | Screw Clamp |
| Country of Origin | MX |
| Dimensions | 5-1/4 in H x 3-1/2 in W x 2-1/2 in D |
| Enclosure | NEMA 1 |
| Gross Weight Per Pack | 0.5000 lb |
| Indicator | Red Pilot Light |
| Item Group | 21102 |
| Material | Stainless Steel |
| Mounting | Flush |
| Number Of Poles | 3 |
| Returnable | N |
| Standards | ARRA CompliantBuy American Act CompliantREACH CompliantCE CertifiedCSA File No. LR25490 Class 3211 05UL File No. E42243 CCN NLRVECCN: EAR99 |
| Type | 3-Phase Type K Non-Reversing Single Unit |
| UNSPSC | 39121521 |
| UPC 11 | 78590112154 |
| UPC 12 | 785901121541 |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 30 A |
| Power Rating | 1 hp, 1-1/2 hp, 2 hp, 7-1/2 hp, 10 hp |
| Voltage Rating | 600 VAC, 230 VDC |
| RED INDICATOR, 208...277 V |
| Two switches are used, one to connect the motor for forward rotation and one for reverse |
| Two switches are employed to give ON-OFF control in each speed |
| 2 hp at 115 VAC, 7-1/2 hp at 230 VAC, 10 hp at 460/575 VAC, 1 hp at 90 VDC, 2 hp at 115 VDC, 1-1/2 hp at 230 VDC |
| 30 A at 600 VAC, 30 A at 24 VDC |
