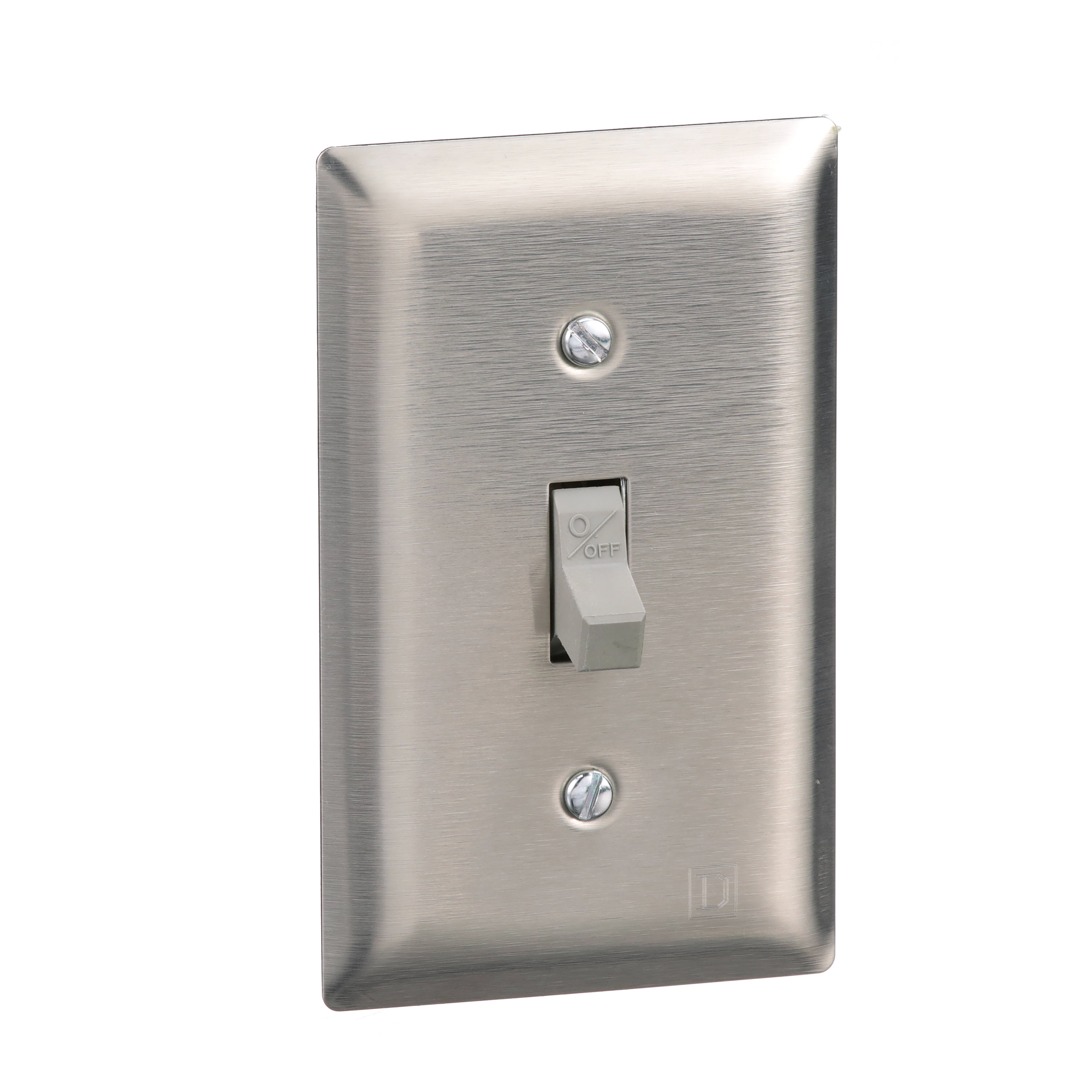

Square D™ 2510KS2 MANUAL SWITCH 600VAC K+
AC Motor Starting Switches
203427
MFG #: 2510KS2
Square D™
186.54000
/ ea
Square D 2510KS2 MANUAL SWITCH 600VAC K+OPTIONS,2HP115VAC - 7.5HP230VAC - 10HP460/575VAC,3-Phase,30A,3P,600VAC/230VDC,Flush,K,Non-Reversing Manual Switch,Provides manual ON/OFF control of single or three phase AC motors where overload protection is not
- 18 Months(WEB WARRANTY URL)
- 360 Degree View URL - 360(360 Degree View URL)
- 3D Rendering URL - SEproductListV2.html?p=2510KS2(3D Rendering URL)
- Brochure URL - files?p_enDocType=Brochure&p_File_Name=Manual Motor Switch.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=25100002.dwg(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - files?p_File_Name=65013-313-03_01.pdf(Install Instructions 1 URL)
- Spec Sheet URL - e533545af71696e6dfa19802f2323740257f2bd0.pdf(Spec Sheet URL)
- WEB CATALOG URL - Square_D_2510KS2B_Catalog.pdf(WEB CATALOG URL)
- WEB ROHS COMPLIANCE URL - Square_D_2510KS2_RoHS.pdf(WEB ROHS COMPLIANCE URL)
- WEB SELLER HOME PAGE URL - us(WEB SELLER HOME PAGE URL)
- WEB TECH DRAWING URL - f618e811ad6568d3aea900cbf51de328ae428e0c(WEB TECH DRAWING URL)
- Applications
- Features
| PROVIDES MANUAL ON/OFF CONTROL OF SINGLE OR THREE PHASE AC MOTORS WHERE OVERLOAD PROTECTION IS NOT REQUIRED OR PROVIDED SEPARATELY |
| NO INDICATOR |
| Suitable for use with 3-ph AC motors rated up to 20 hp |
| Type K reversing manual switches provide a compact means of starting, stopping and reversing AC motors where overload protection is not required or is provided separately |
| Type K two-speed manual switches may be used with separate winding 3 or 1 ph AC motors where overload protection is not required or is provided separately |
| Suitable for use with 3-ph squirrel cage motors and for single-phase motors which can be reversed by reconnecting motor leads |
| Two switches are used, one to connect the motor for forward rotation and one for reverse |
| Two switches are employed to give "on-off" control in each speed |
| Economical on/off solution |
| Simple design |
| Easy to install |
