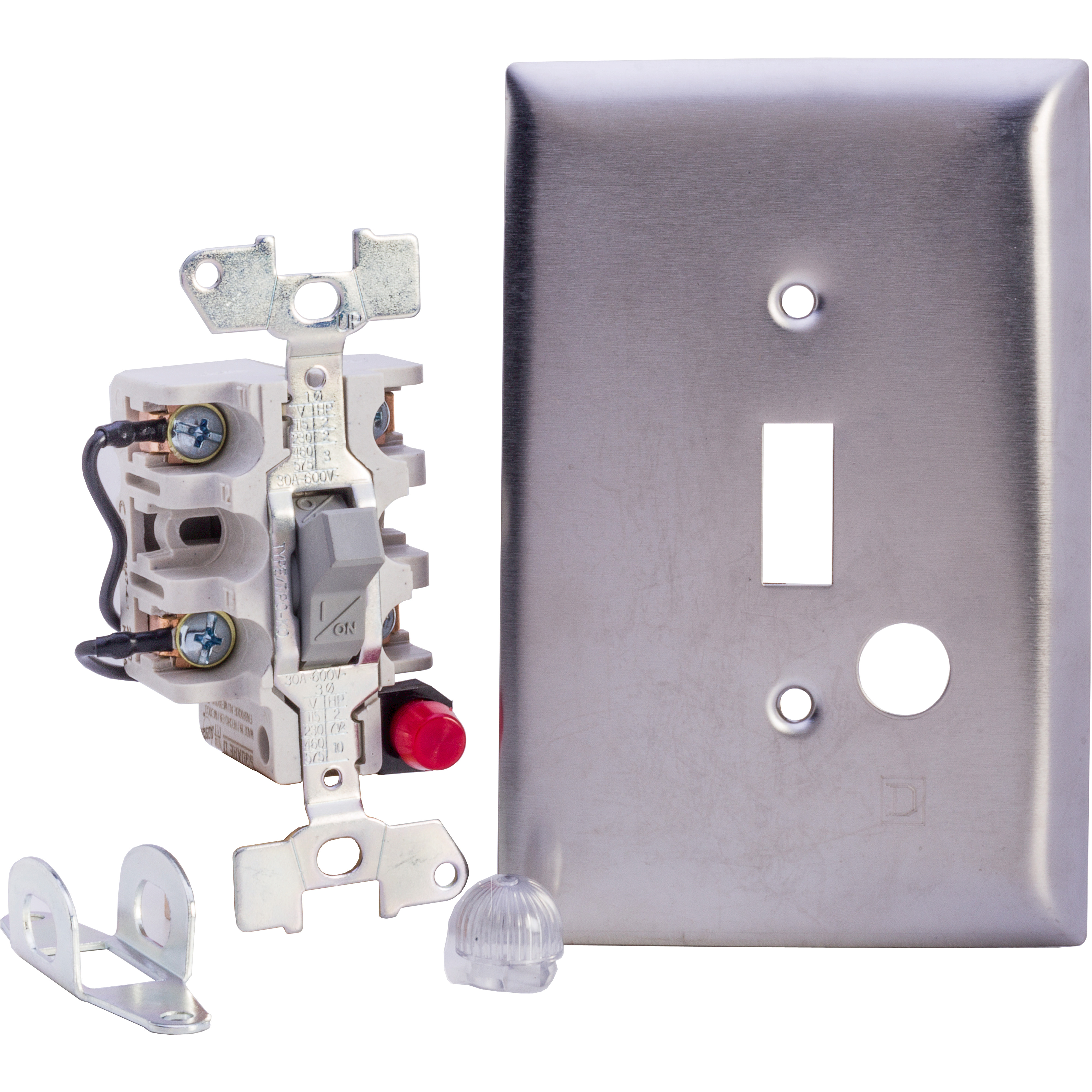

Square D™ 2510KS1B MANUAL SWITCH 600VAC K
AC Motor Starting Switches
PDW~6429254
MFG #: 2510KS1B
Square D™
145.04000
/ ea
Square D,MANUAL SWITCH 600VAC K+OPTIONS,1-Phase,2HP@115/230VAC - 3HP@460/575VAC,2P,30A,600VAC/230VDC,Flush,K,Non-Reversing Manual Switch,Provides manual ON/OFF control of single or three phase AC motors where overload protection is not required or provided separately,Screw Clamp,Single Unit Stainless Steel Flush Plate,UL Listed - CSA Certified - CE Marked,not rated (flush plate) stainless steel standard size
- http://www.schneider-electric.us/(Seller Home Page URL)
- WEB CATALOG URL - Square_D_2510KS2B_Catalog.pdf(WEB CATALOG URL)
- WEB ROHS COMPLIANCE URL - Square_D_2510KS1B_RoHS.pdf(WEB ROHS COMPLIANCE URL)
- WEB SPEC SHEET URL - 2510KS1B(WEB SPEC SHEET URL)
- WEB TECH DRAWING URL - f618e811ad6568d3aea900cbf51de328ae428e0c(WEB TECH DRAWING URL)
- Applications
- Features
| PROVIDES MANUAL ON/OFF CONTROL OF SINGLE OR THREE PHASE AC MOTORS WHERE OVERLOAD PROTECTION IS NOT REQUIRED OR PROVIDED SEPARATELY |
| RED INDICATOR, 230 V |
| Suitable for use with 3-ph AC motors rated up to 20 hp |
| Type K reversing manual switches provide a compact means of starting, stopping and reversing AC motors where overload protection is not required or is provided separately |
| Type K two-speed manual switches may be used with separate winding 3 or 1 ph AC motors where overload protection is not required or is provided separately |
| Suitable for use with 3-ph squirrel cage motors and for single-phase motors which can be reversed by reconnecting motor leads |
| Two switches are used, one to connect the motor for forward rotation and one for reverse |
| Two switches are employed to give "on-off" control in each speed |
| Economical on/off solution |
| Simple design |
| Easy to install |
