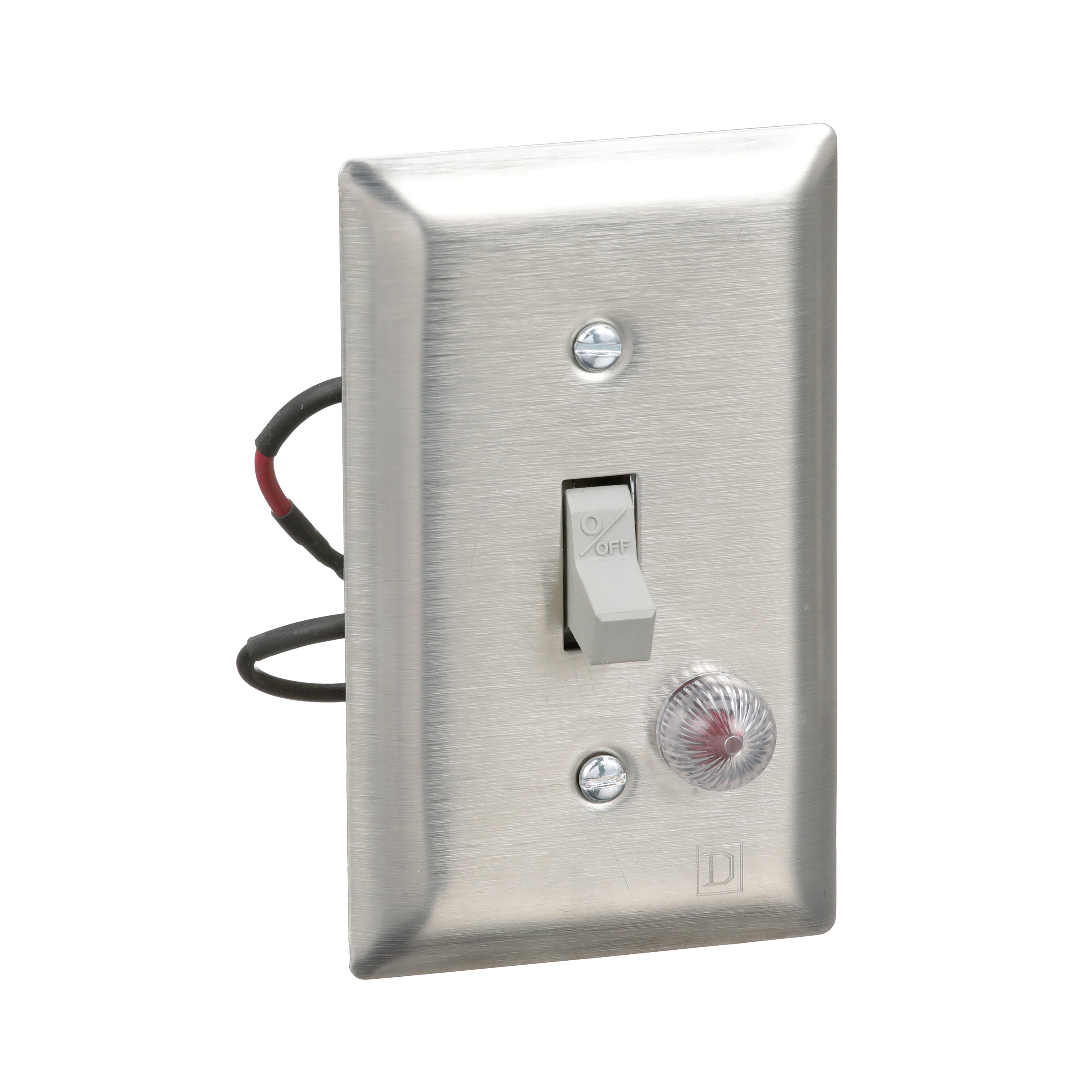

Square D™ 2510KS1A MANUAL SWITCH 600VAC K
SKU424330
MFGR #2510KS1A
Your Cost: $203.89/ea
List: Square D 2510KS1A MANUAL SWITCH 600VAC K+OPTIONS,1-Phase,2HP115/230VAC - 3HP460/575VAC,2P,30A,600VAC/230VDC,Flush,K,Non-Reversing Manual Switch,Provides manual ON/OFF control of single or three phase AC motors where overload protection is not required o
Square D 2510KS1A MANUAL SWITCH 600VAC K+OPTIONS,1-Phase,2HP115/230VAC - 3HP460/575VAC,2P,30A,600VAC/230VDC,Flush,K,Non-Reversing Manual Switch,Provides manual ON/OFF control of single or three phase AC motors where overload protection is not required o
Action Non-Reversing Actuator Toggle Alternate Catalog Number 2510KS1A Application PROVIDES MANUAL ON/OFF CONTROL OF SINGLE OR THREE PHASE AC MOTORS WHERE OVERLOAD PROTECTION IS NOT REQUIRED OR PROVIDED SEPARATELY ARRA Compliant N Buy American Compliant N Catalog Number 2510KS1A Connection Screw Clamp Country of Origin MX Currency USD Current Rating 30 A Depth 2.5 in Dimensions 2-3/4 in W x 2-1/2 in D x 4-1/2 in H Environmental Conditions Stainless Steel Flush Plate EU RoHS Indicator Y Gross Volume Per Pack 39.49 Gross Volume per Pack Metric 647.19 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.5200 lb Gross Weight per Pack Metric 235.87 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536504000 Height 2.7559 in Height [Metric] 6.6040 cm Indicator Red Item Group 21102 Length 4.7244 in Length [Metric] 12.4460 cm Mounting Flush Number Of Phases 1 Number Of Poles 2 Returnable Y Series 2510 Size 2.5 IN,2.75 IN,4.5 IN in Standard UL LISTED - CSA CERTIFIED - CE MARKED Sub Brand K Substitute Product Catalog Number 9999PL11G Type Type K UNSPSC 39121521 UPC 11 78590155466 UPC 12 785901554660 Warranty Description Contractual Warranty:18 months Width 3.1496 in Width [Metric] 7.8740 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 30 A Power Rating 2 hp at 115/230 VAC/3 hp at 460/575 VAC Voltage Rating 600 VAC/230 VDC VAC//VDC PROVIDES MANUAL ON/OFF CONTROL OF SINGLE OR THREE PHASE AC MOTORS WHERE OVERLOAD PROTECTION IS NOT REQUIRED OR PROVIDED SEPARATELY RED INDICATOR, 115 V Suitable for use with 3-ph AC motors rated up to 20 hp Type K reversing manual switches provide a compact means of starting, stopping and reversing AC motors where overload protection is not required or is provided separately Type K two-speed manual switches may be used with separate winding 3 or 1 ph AC motors where overload protection is not required or is provided separately Suitable for use with 3-ph squirrel cage motors and for single-phase motors which can be reversed by reconnecting motor leads Two switches are used, one to connect the motor for forward rotation and one for reverse Two switches are employed to give "on-off" control in each speed Economical on/off solution Simple design Easy to install
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Action | Non-Reversing |
| Actuator | Toggle |
| Alternate Catalog Number | 2510KS1A |
| Application | PROVIDES MANUAL ON/OFF CONTROL OF SINGLE OR THREE PHASE AC MOTORS WHERE OVERLOAD PROTECTION IS NOT REQUIRED OR PROVIDED SEPARATELY |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | 2510KS1A |
| Connection | Screw Clamp |
| Country of Origin | MX |
| Currency | USD |
| Current Rating | 30 A |
| Depth | 2.5 in |
| Dimensions | 2-3/4 in W x 2-1/2 in D x 4-1/2 in H |
| Environmental Conditions | Stainless Steel Flush Plate |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 39.49 |
| Gross Volume per Pack Metric | 647.19 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.5200 lb |
| Gross Weight per Pack Metric | 235.87 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536504000 |
| Height | 2.7559 in |
| Height [Metric] | 6.6040 cm |
| Indicator | Red |
| Item Group | 21102 |
| Length | 4.7244 in |
| Length [Metric] | 12.4460 cm |
| Mounting | Flush |
| Number Of Phases | 1 |
| Number Of Poles | 2 |
| Returnable | Y |
| Series | 2510 |
| Size | 2.5 IN,2.75 IN,4.5 IN in |
| Standard | UL LISTED - CSA CERTIFIED - CE MARKED |
| Sub Brand | K |
| Substitute Product Catalog Number | 9999PL11G |
| Type | Type K |
| UNSPSC | 39121521 |
| UPC 11 | 78590155466 |
| UPC 12 | 785901554660 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 3.1496 in |
| Width [Metric] | 7.8740 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 30 A |
| Power Rating | 2 hp at 115/230 VAC/3 hp at 460/575 VAC |
| Voltage Rating | 600 VAC/230 VDC VAC//VDC |
| PROVIDES MANUAL ON/OFF CONTROL OF SINGLE OR THREE PHASE AC MOTORS WHERE OVERLOAD PROTECTION IS NOT REQUIRED OR PROVIDED SEPARATELY |
| RED INDICATOR, 115 V |
| Suitable for use with 3-ph AC motors rated up to 20 hp |
| Type K reversing manual switches provide a compact means of starting, stopping and reversing AC motors where overload protection is not required or is provided separately |
| Type K two-speed manual switches may be used with separate winding 3 or 1 ph AC motors where overload protection is not required or is provided separately |
| Suitable for use with 3-ph squirrel cage motors and for single-phase motors which can be reversed by reconnecting motor leads |
| Two switches are used, one to connect the motor for forward rotation and one for reverse |
| Two switches are employed to give "on-off" control in each speed |
| Economical on/off solution |
| Simple design |
| Easy to install |
